Camshaft Position Sensor Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Remove the engine cover.
  3. Disconnect the sensor electrical connector.

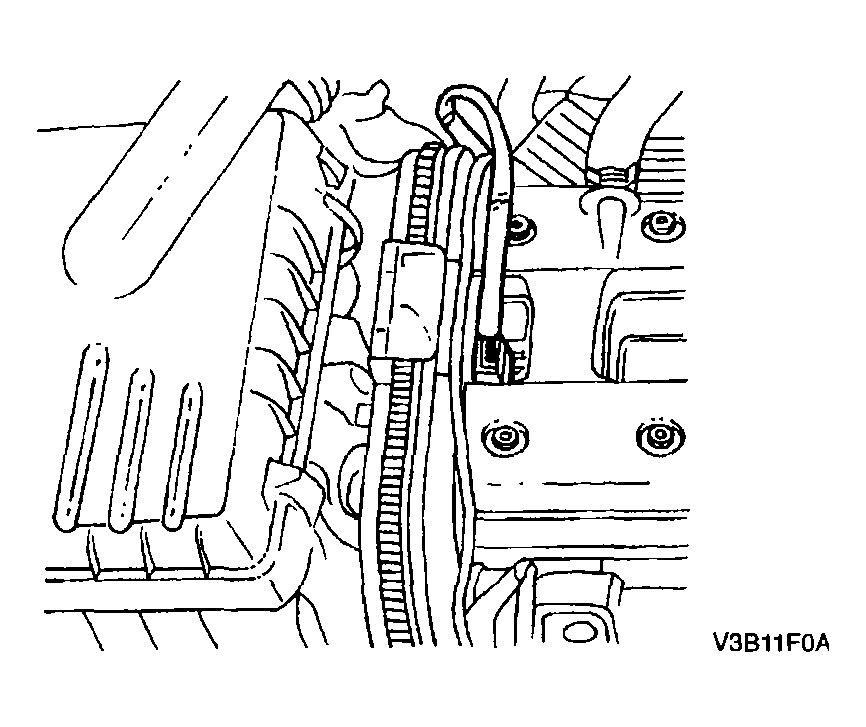

    Fig 1: Removing Engine Cover
    G04102628Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the timing belt front cover. Refer to "TIMING BELT REMOVAL AND INSTALLATION :"
  5. Remove the camshaft position sensor bolts.
  6. Remove the camshaft position sensor from the top.

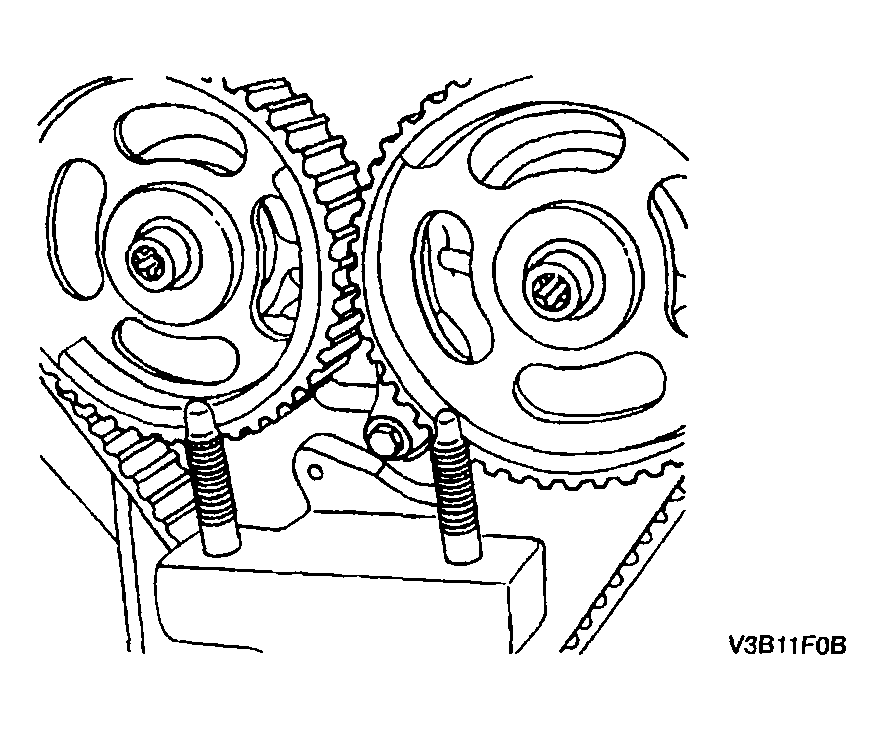

    Fig 2: Removing Camshaft Position Sensor Bolts
    G04102629Courtesy of SUZUKI OF AMERICA CORP.
