Camshaft Position Sensor Removal and Installation: Installation

  1. Install the camshaft position sensor and bolts.

    Tighten

    Tighten the camshaft position bolts to 8 N.m (71 lb-in).

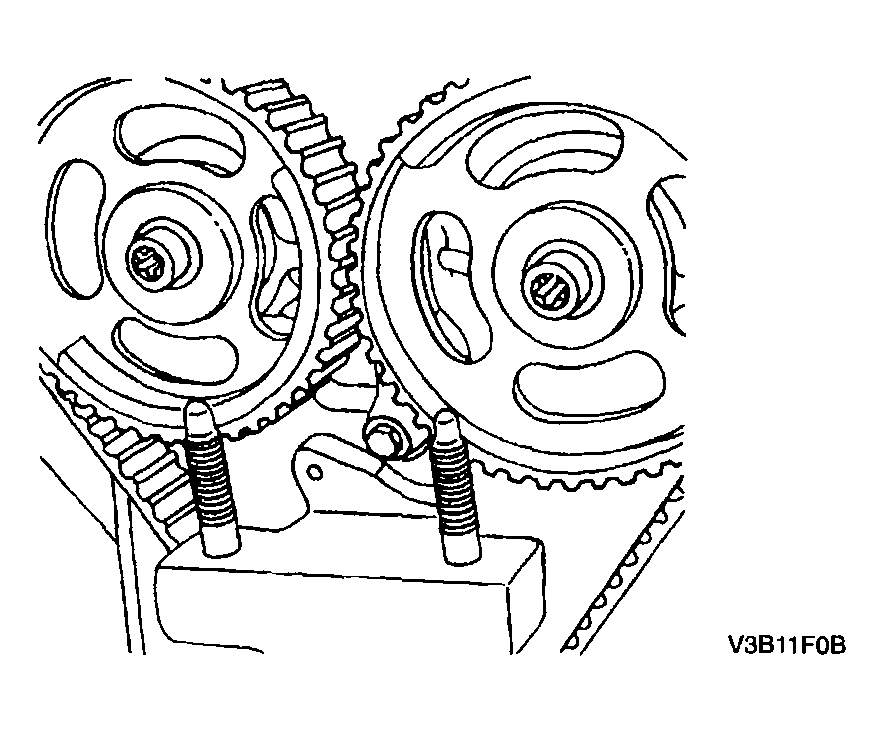

    Fig 1: Installing Camshaft Position Sensor And Bolts
    G04102630Courtesy of SUZUKI OF AMERICA CORP.
  2. Install the timing belt front cover, the crankshaft pulley, the accessory drive belt, and the air filter. Refer to "TIMING BELT REMOVAL AND INSTALLATION :"
  3. Connect the sensor electrical connector.
  4. Install the engine cover.
  5. Connect the negative battery cable.

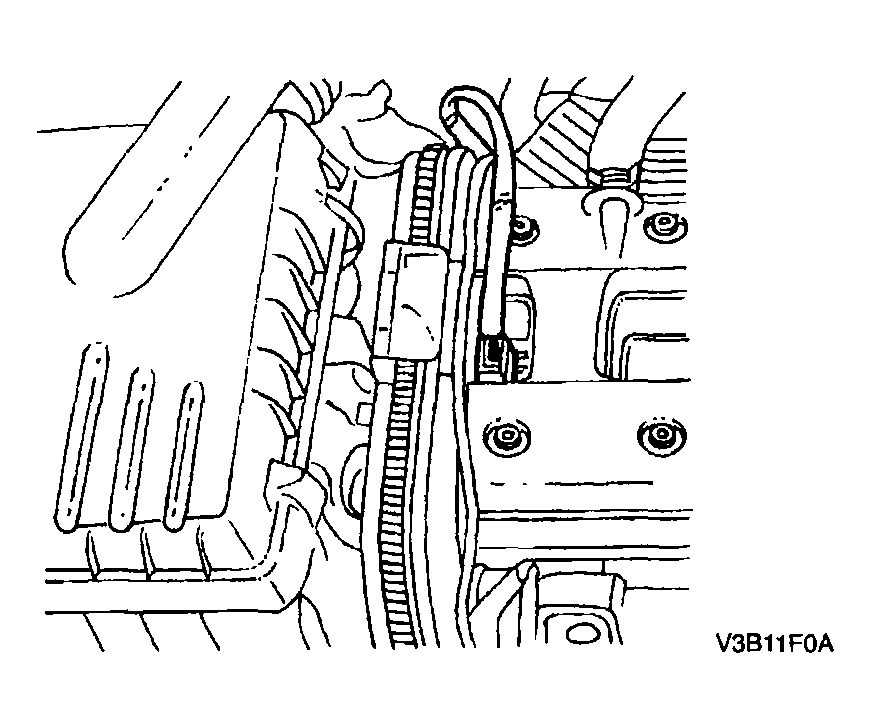

    Fig 2: Installing Engine Cover
    G04102631Courtesy of SUZUKI OF AMERICA CORP.
