Fuel Tank Removal and Installation: Installation

Raise the fuel tank into position.
Install the fuel tank straps.
Install the fuel tank strap retaining nuts.
Tighten

Tighten the fuel tank strap retaining nuts to 20 N.m (15 lb-ft).

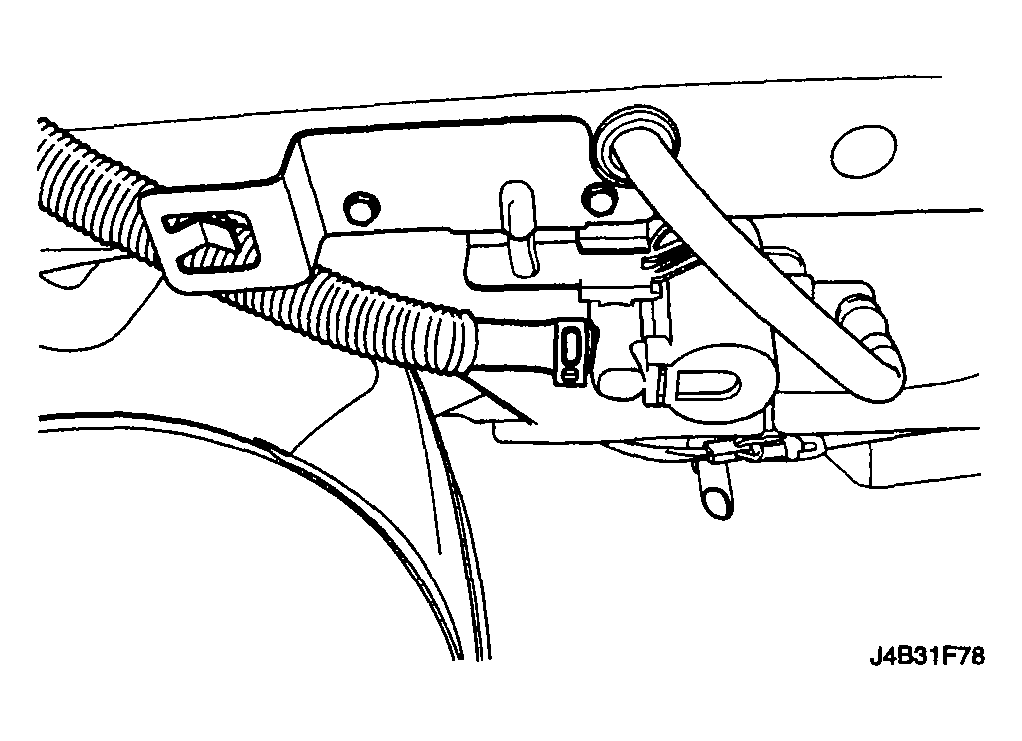

Connect the fuel vapor line from the solenoid valve.

Fig 1: Connecting Fuel Vapor Line From Solenoid Valve
Courtesy of SUZUKI OF AMERICA CORP.

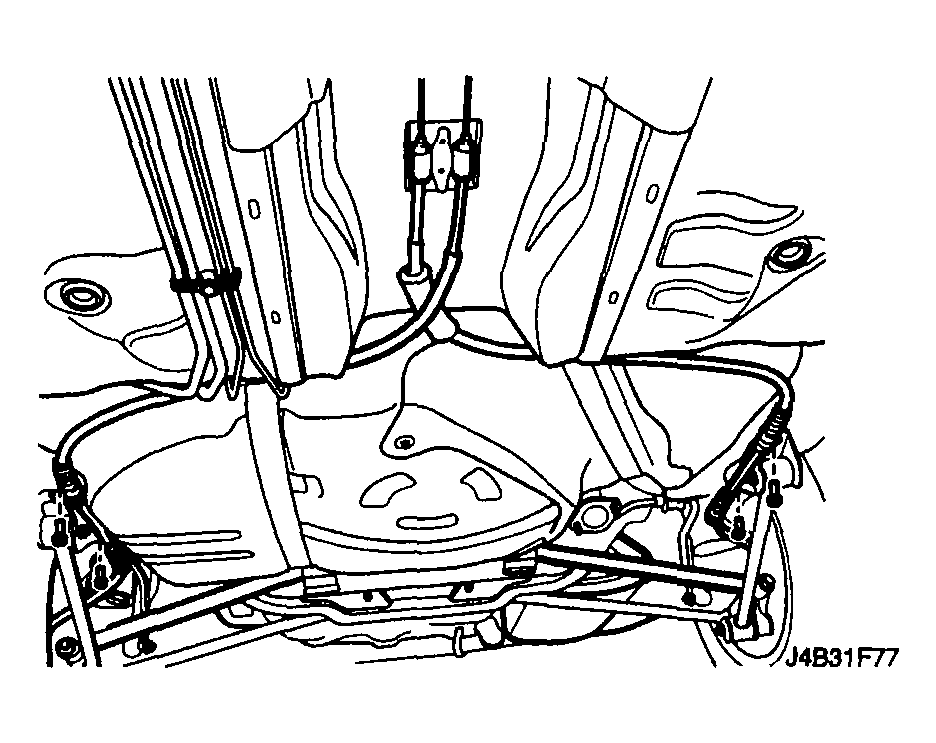

Install the parking brake cables support bracket.
Install the parking brake cables from the fuel tank.

Fig 2: Installing Parking Brake Cables Support Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Connect the fuel line.

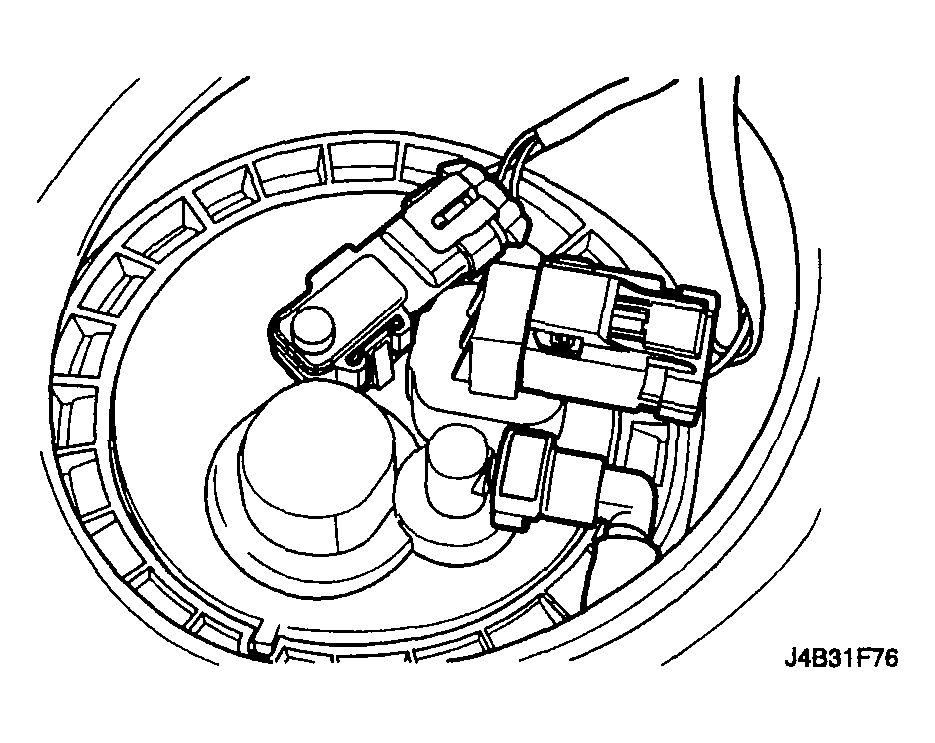

Connect the electrical connector at the fuel pump assembly.

Fig 3: Connecting Electrical Connector At Fuel Pump Assembly
Courtesy of SUZUKI OF AMERICA CORP.

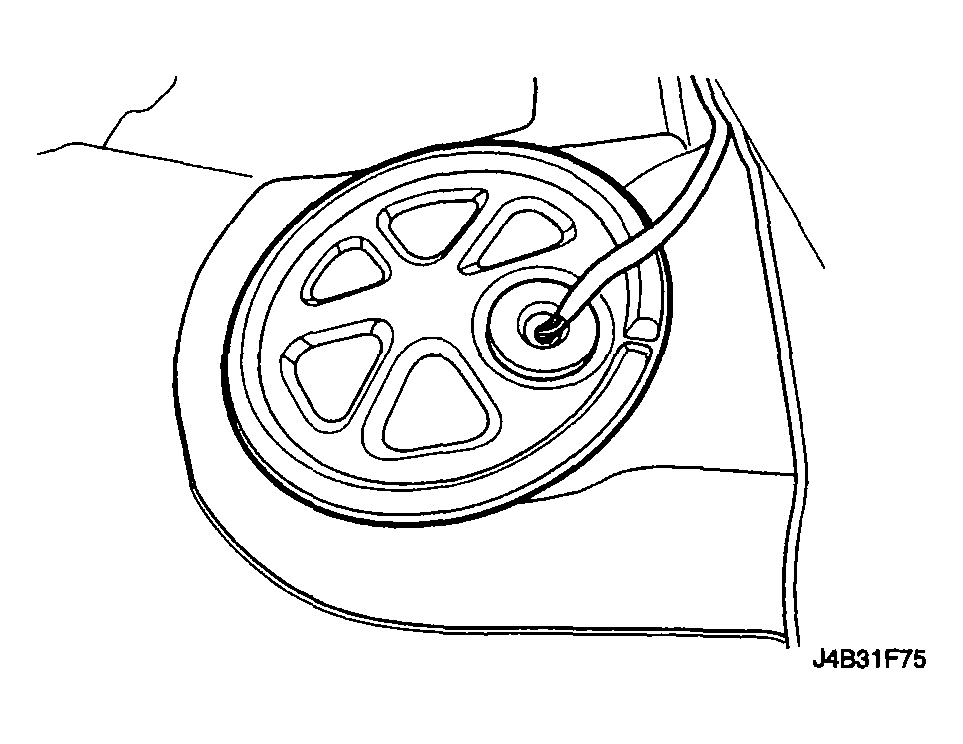

Install the fuel pump access cover.
Install the rear seat. Refer to "REAR SEAT CUSHION REMOVAL AND INSTALLATION :".

Fig 4: Installing Fuel Pump Access Cover
Courtesy of SUZUKI OF AMERICA CORP.

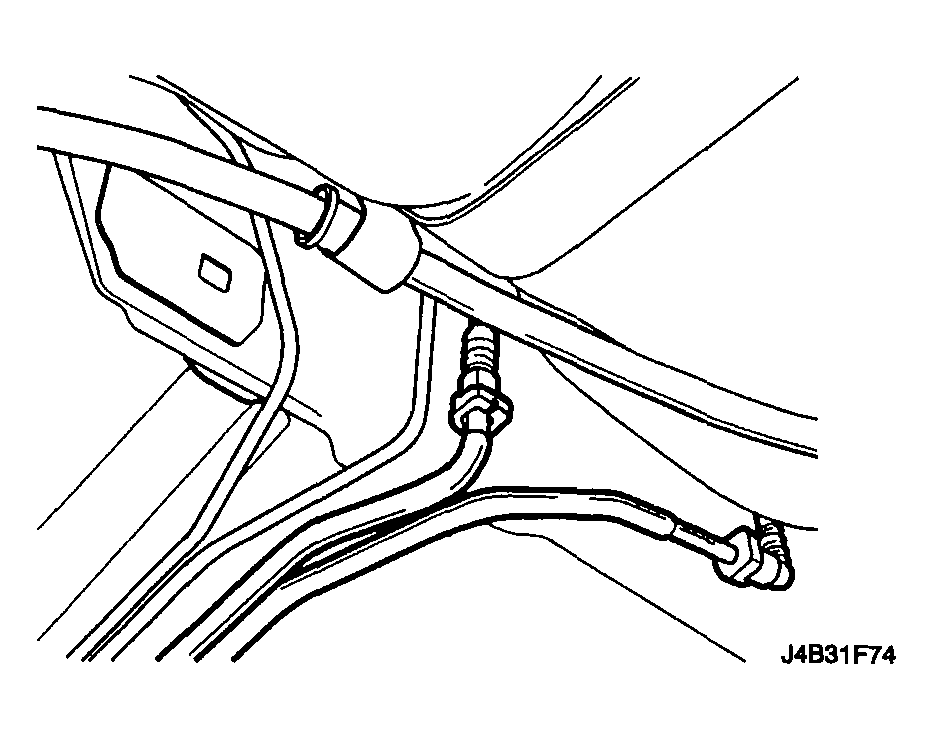

Connect the fuel line near the right front of the fuel tank.

Fig 5: Connecting Fuel Line Near Right Front Of Fuel Tank
Courtesy of SUZUKI OF AMERICA CORP.
Connect the fuel tank filler tube.

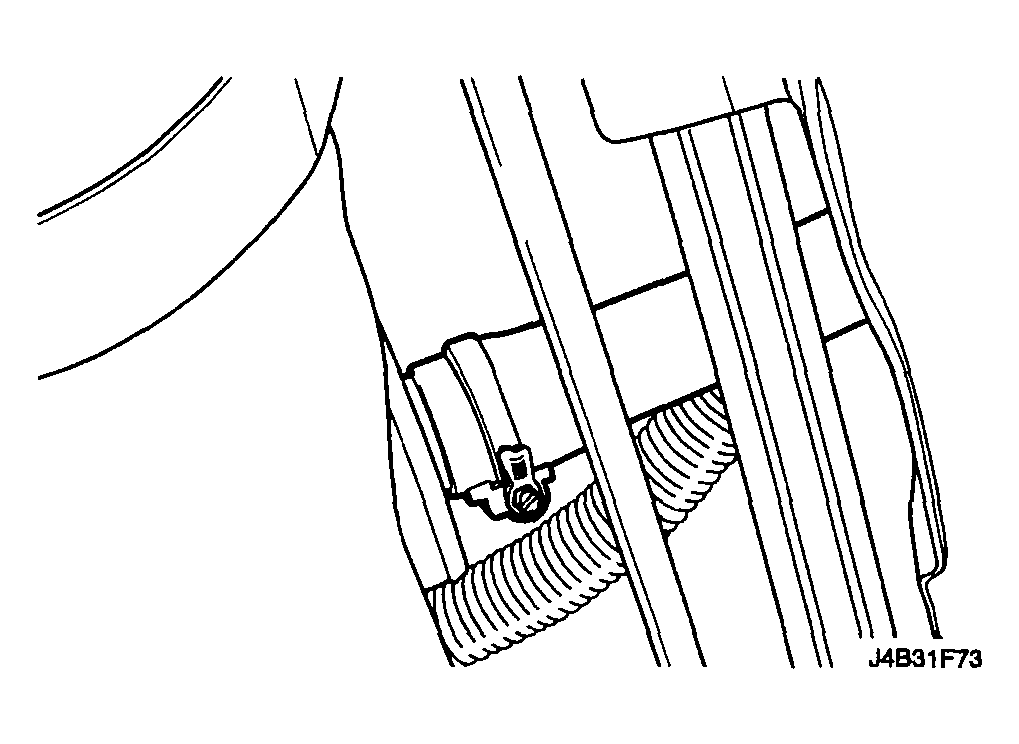

Install the fuel tank filler tube clamp at the fuel tank.

Fig 6: Installing Fuel Tank Filler Tube Clamp At Fuel Tank
Courtesy of SUZUKI OF AMERICA CORP.
Install the front muffler. Refer to "MUFFLER - FRONT REMOVAL AND INSTALLATION :".
Connect the negative battery cable.
Fill the fuel tank.
Perform a leak check of the fuel tank and the fuel line connections.

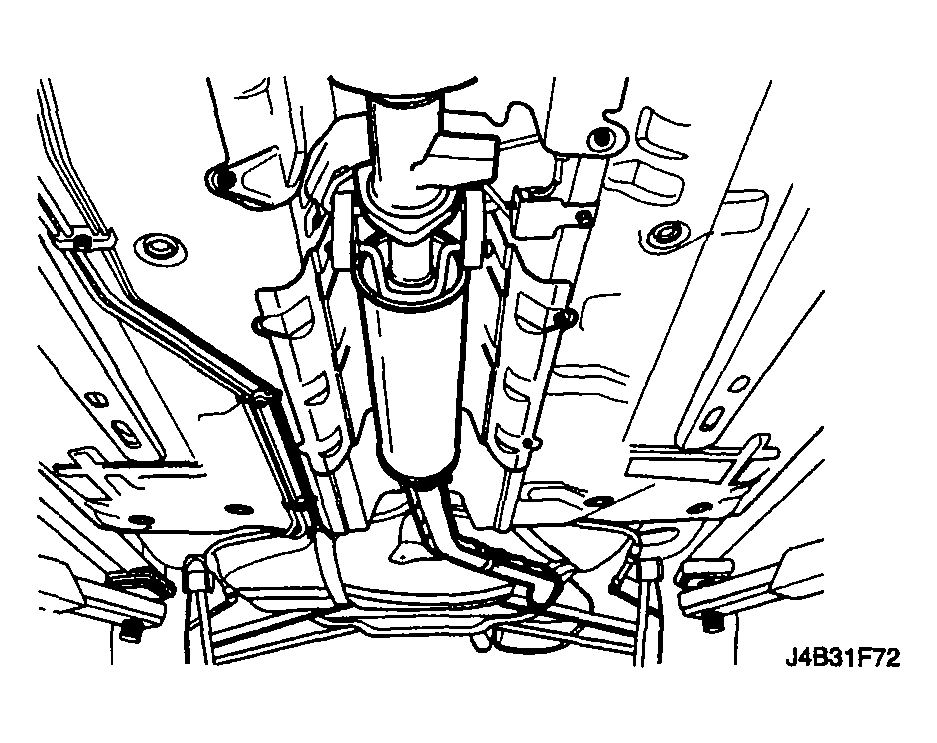

Fig 7: Installing Front Muffler
Courtesy of SUZUKI OF AMERICA CORP.
