Fuel Sender Removal and Installation: Removal

Disconnect the insulator connector.

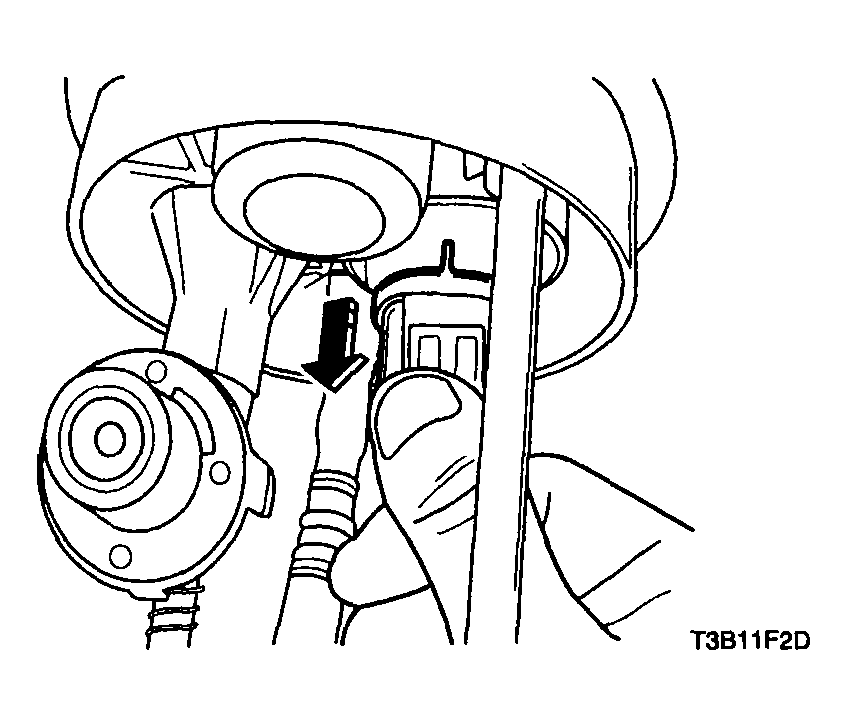

Fig 1: Disconnecting Insulator Connector
Courtesy of SUZUKI OF AMERICA CORP.
Push the terminal wedge (1) in the insulator connector.
NOTE: The wedge may be disconnected with severe load but can be reconnected.

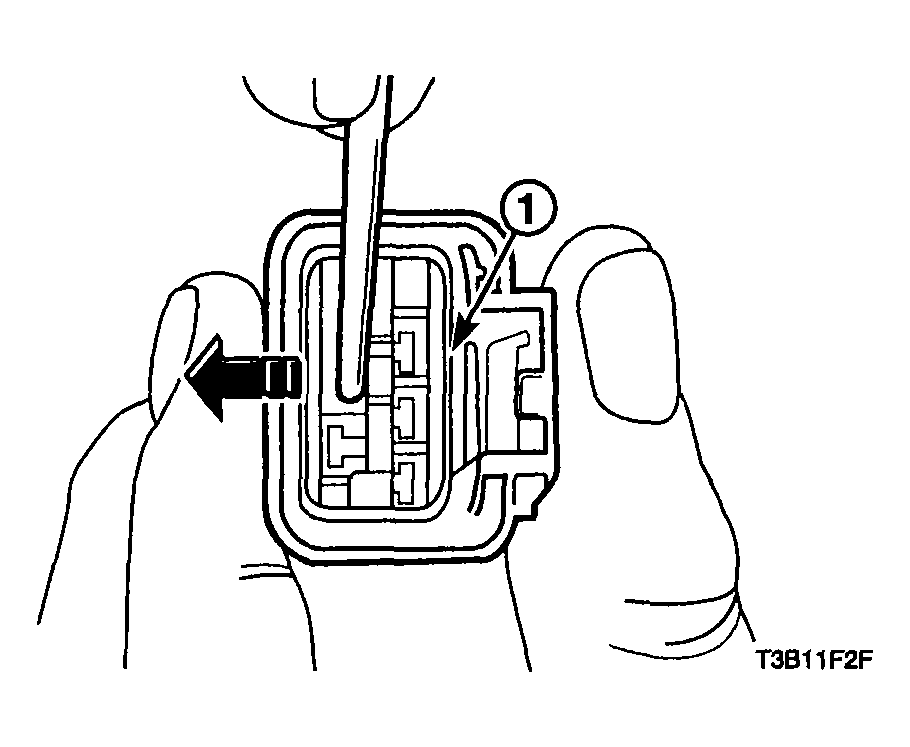

Fig 2: Pushing Terminal Wedge (1) In Insulator Connector
Courtesy of SUZUKI OF AMERICA CORP.
Push the wedge (1) outside and then pull the wires to disconnect from insulator.

Fig 3: Pushing Wedge (1) Outside And Then Pull Wires To Disconnect From Insulator
Courtesy of SUZUKI OF AMERICA CORP.
Remove the fuel-level sensor (1) from the sender-housing (2).
Remove the sender-housing (2).

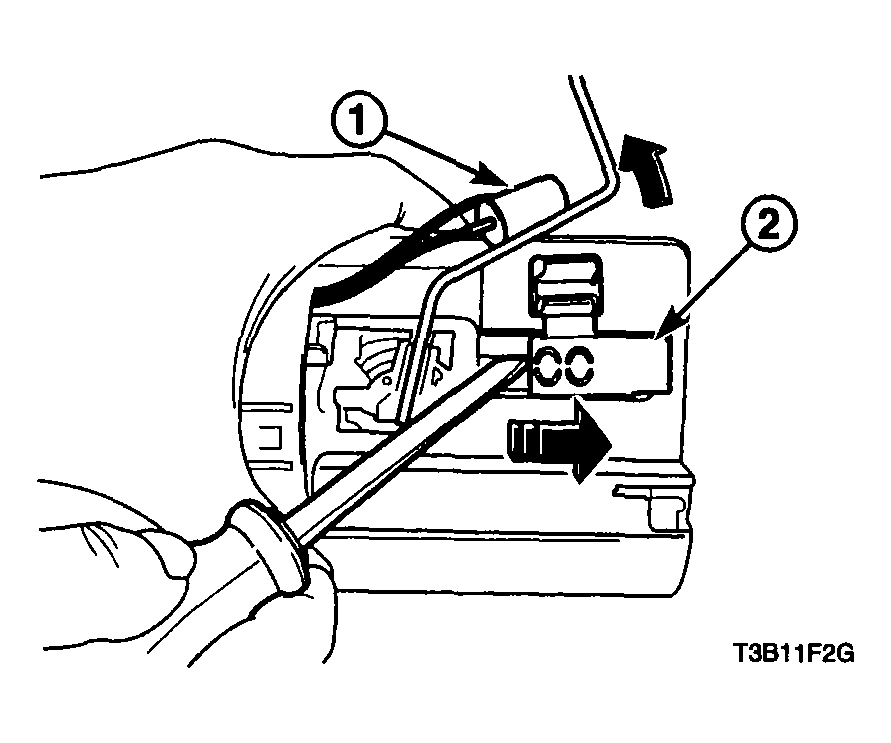

Fig 4: Removing Fuel-Level Sensor From Sender-Housing
Courtesy of SUZUKI OF AMERICA CORP.
Remove fuel sender assembly (3).

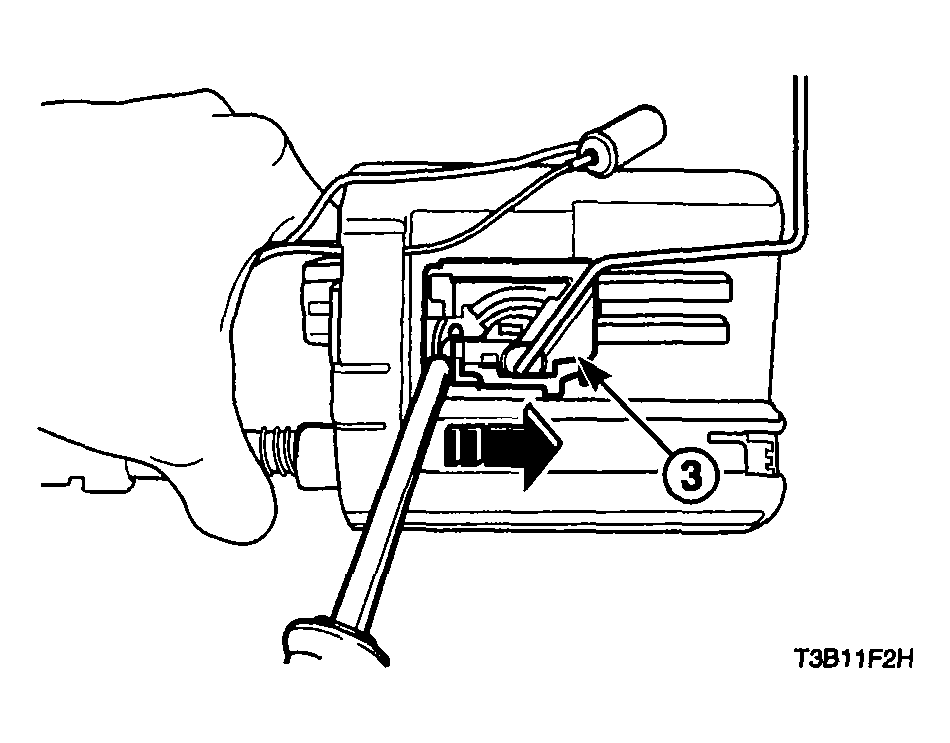

Fig 5: Removing Fuel Sender Assembly
Courtesy of SUZUKI OF AMERICA CORP.
