Fuel Sender Removal and Installation: Installation

Wind the wires (1) the sender assembly (2).

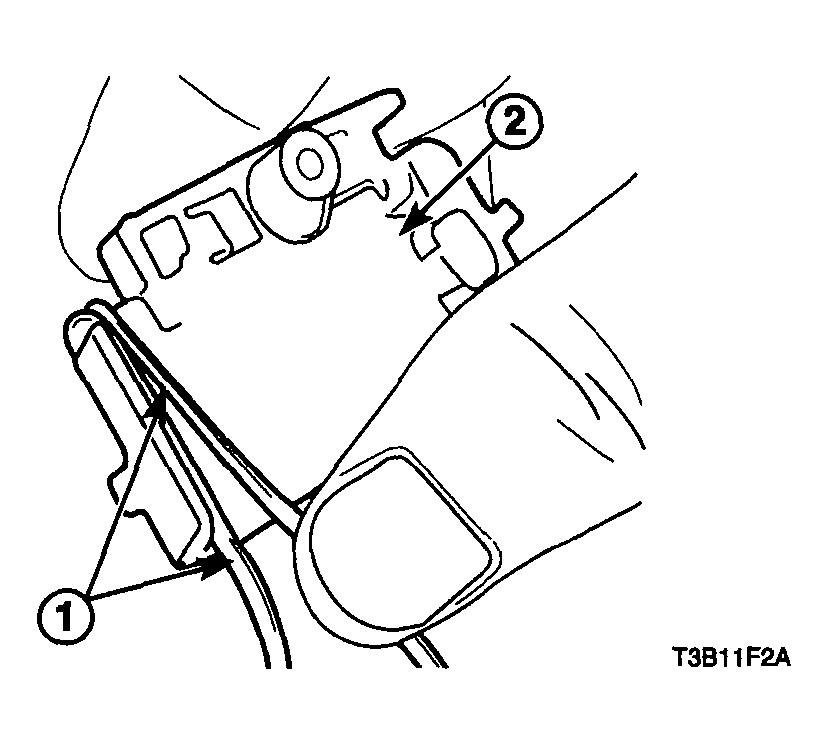

Fig 1: Installing Sender Assembly Onto Fuel Pump
Courtesy of SUZUKI OF AMERICA CORP.
Install the sender assembly onto the fuel pump assembly (1).
NOTE: Unless correctly install the sender assembly, fuel gauge indicate inexactly.
Install the fuel-level sensor onto the sender-housing.
NOTE: Unless correctly install the fuel-level sensor, fuel-level warning lamp indicate inexactly.

Fig 2: Installing Fuel-Level Sensor Onto Sender-Housing
Courtesy of SUZUKI OF AMERICA CORP.
Connect the wire into the insulator connector.

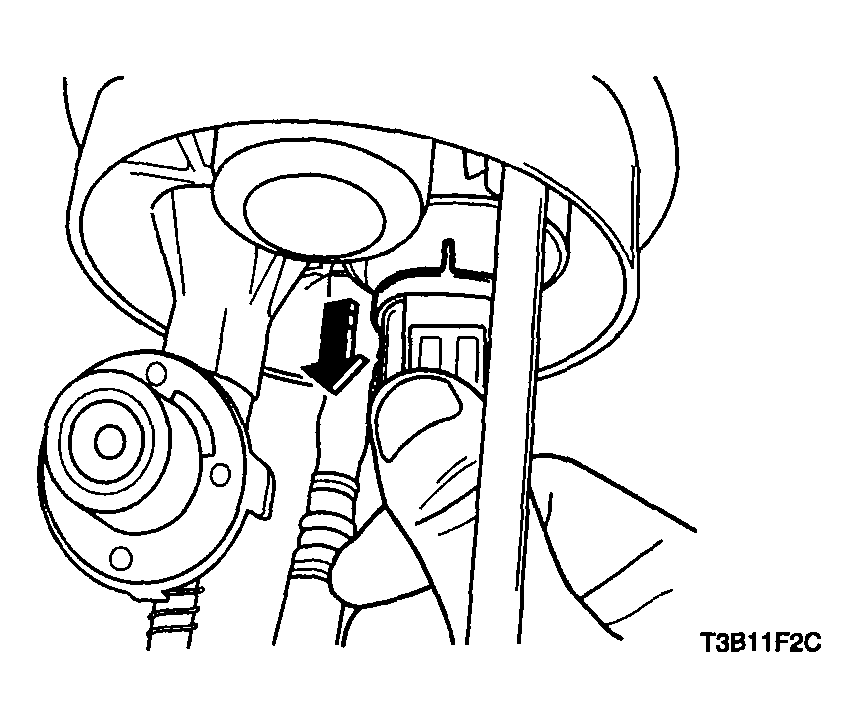

Fig 3: Connecting Wire Into Insulator Connector
Courtesy of SUZUKI OF AMERICA CORP.
Connect the insulator connector.

Fig 4: Connecting Insulator Connector
