Reno LX, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine General Information And Diagnosis
>>
Schematic and Routing Diagram
>>
ECM Wiring Diagram -1/6
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ECM Wiring Diagram -1/6

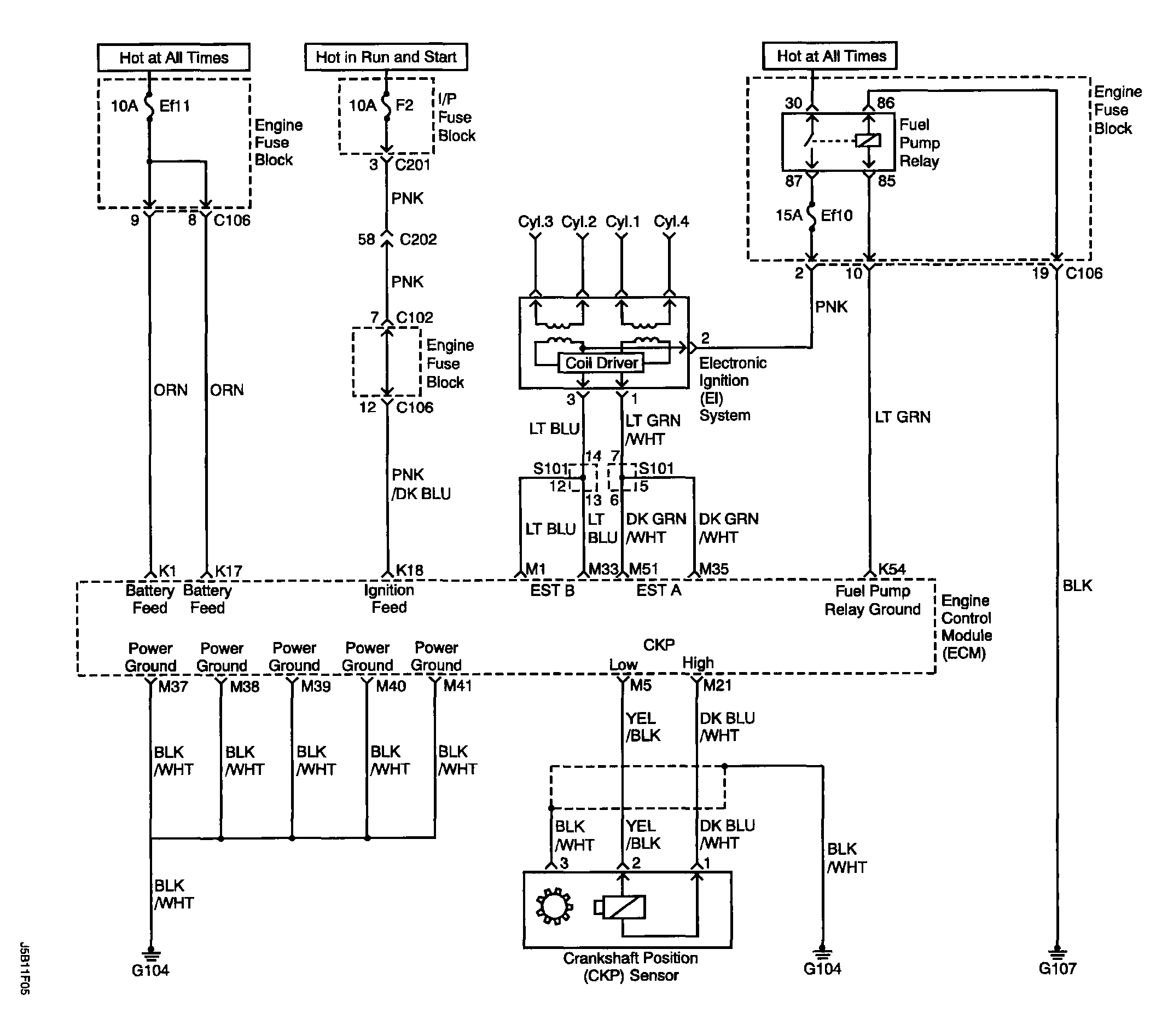

Fig 1: ECM Wiring Diagram -1/6
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
