ECM Wiring Diagram - 3/6

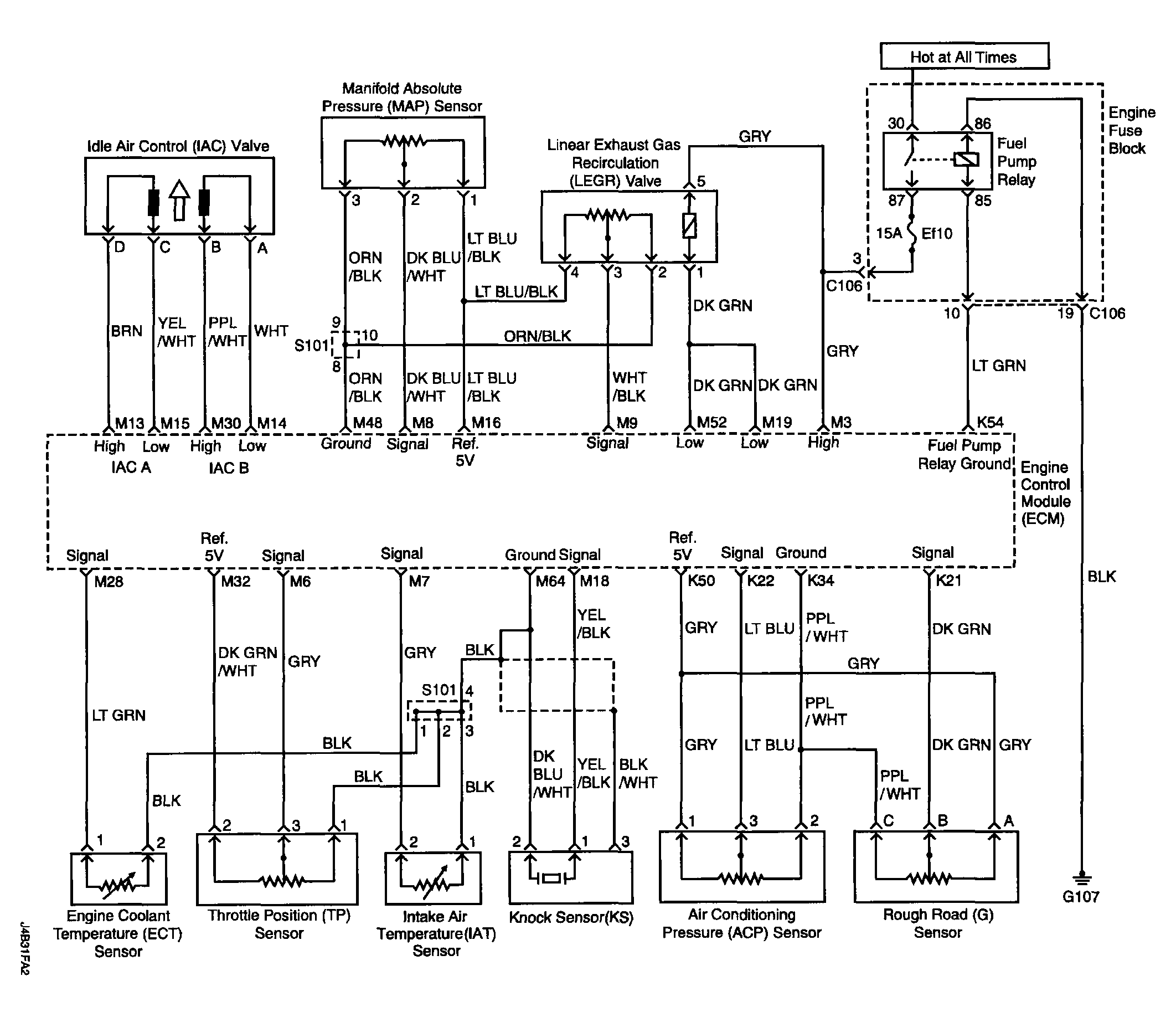

Fig 1: ECM Wiring Diagram - 3/6
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
