Connector End View Diagram

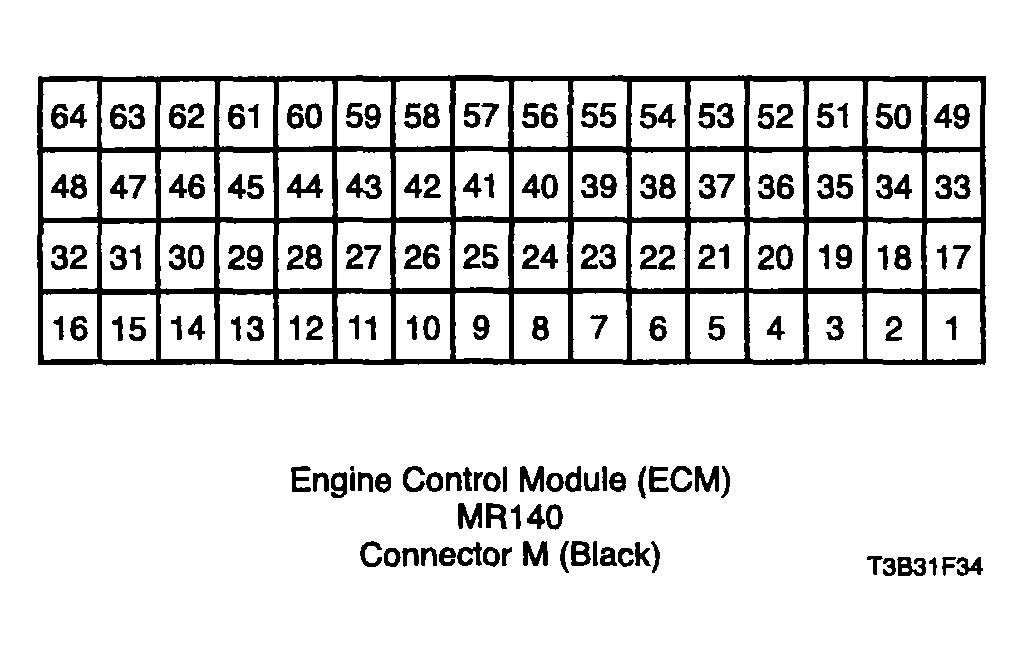

Fig 1: Identifying Engine Control Module Connector Terminal

G04102491

Courtesy of SUZUKI OF AMERICA CORP.

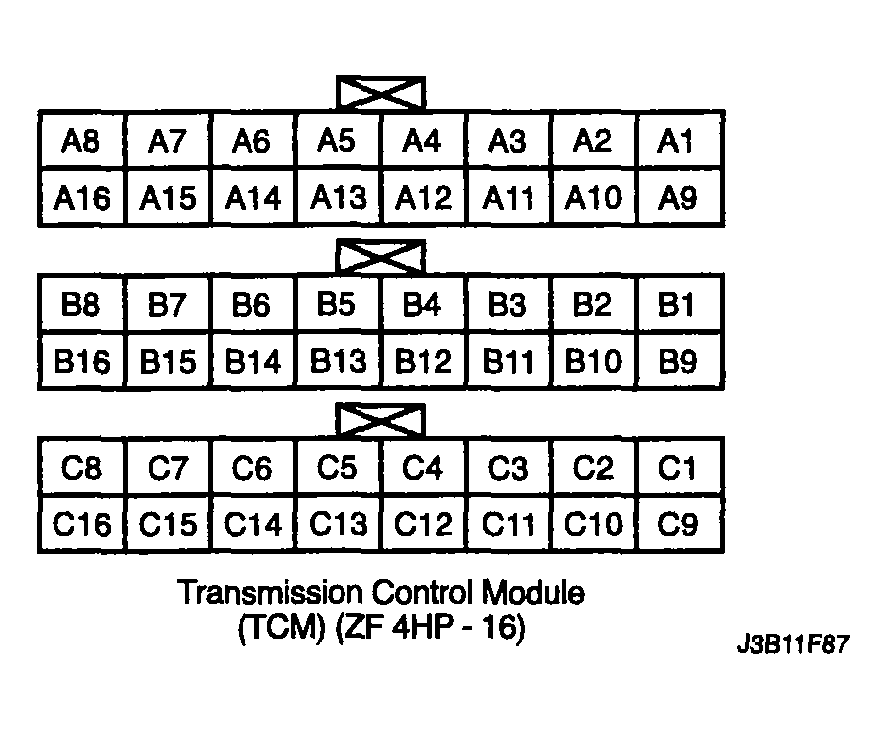

Fig 2: Identifying Transmission Control Module Connector Terminal

G04102492

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Identifying Data Link Connector Terminal

G04102493

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Identifying Engine Coolant Temperature Connector Terminal

G04102494

Courtesy of SUZUKI OF AMERICA CORP.

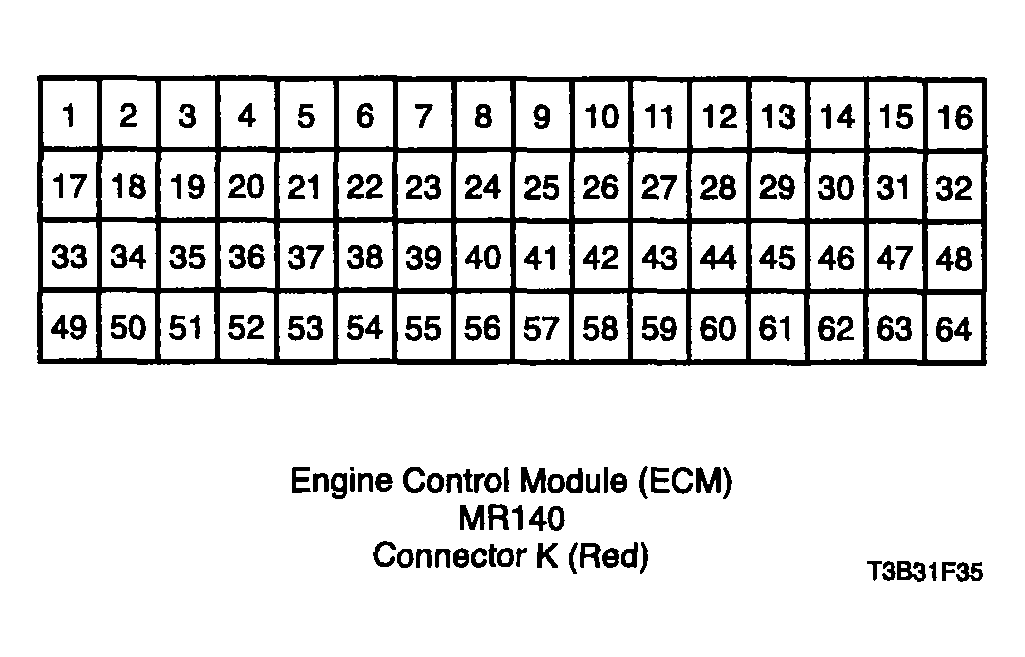

Fig 5: Identifying Engine Control Module Connector Terminal

G04102495

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: Identifying Throttle Position Sensor Connector Terminal

G04102496

Courtesy of SUZUKI OF AMERICA CORP.

Fig 7: Identifying Manifold Absolute Pressure Sensor Connector Terminal

G04102497

Courtesy of SUZUKI OF AMERICA CORP.

Fig 8: Identifying Air Condition Pressure Sensor Connector Terminal

G04102498

Courtesy of SUZUKI OF AMERICA CORP.

Fig 9: Identifying Idle Air Control Valve Connector Terminal

G04102499

Courtesy of SUZUKI OF AMERICA CORP.

Fig 10: Identifying Intake Air Temperature Sensor Connector Terminal

G04102500

Courtesy of SUZUKI OF AMERICA CORP.

Fig 11: Identifying Fuel Pump Connector Terminal

G04102501

Courtesy of SUZUKI OF AMERICA CORP.

Fig 12: Identifying Crankshaft Position Sensor Connector Terminal

G04102502

Courtesy of SUZUKI OF AMERICA CORP.

Fig 13: Identifying Front Heated Oxygen Sensor Connector Terminal

G04102503

Courtesy of SUZUKI OF AMERICA CORP.

Fig 14: Identifying Vehicle Speed Sensor Connector Terminal

G04102504

Courtesy of SUZUKI OF AMERICA CORP.

Fig 15: Identifying Cooling Fan Connector Terminal

G04102505

Courtesy of SUZUKI OF AMERICA CORP.

Fig 16: Identifying Camshaft Position Sensor Connector Terminal

G04102506

Courtesy of SUZUKI OF AMERICA CORP.

Fig 17: Identifying Rear Heated Oxygen Sensor Connector Terminal

G04102507

Courtesy of SUZUKI OF AMERICA CORP.

Fig 18: Identifying Linear Exhaust Gas Recirculation Connector Terminal

G04102508

Courtesy of SUZUKI OF AMERICA CORP.

Fig 19: Identifying Rough Road Sensor Connector Terminal

G04102509

Courtesy of SUZUKI OF AMERICA CORP.

Fig 20: Identifying EVAP Canister Purge Solenoid Connector Terminal

G04102510

Courtesy of SUZUKI OF AMERICA CORP.

Fig 21: Identifying Ron Switch Connector Terminal

G04102511

Courtesy of SUZUKI OF AMERICA CORP.

Fig 22: Identifying Knock Sensor Connector Terminal

G04102512

Courtesy of SUZUKI OF AMERICA CORP.
