On-Board Diagnostic (OBD II) System Check: Notes

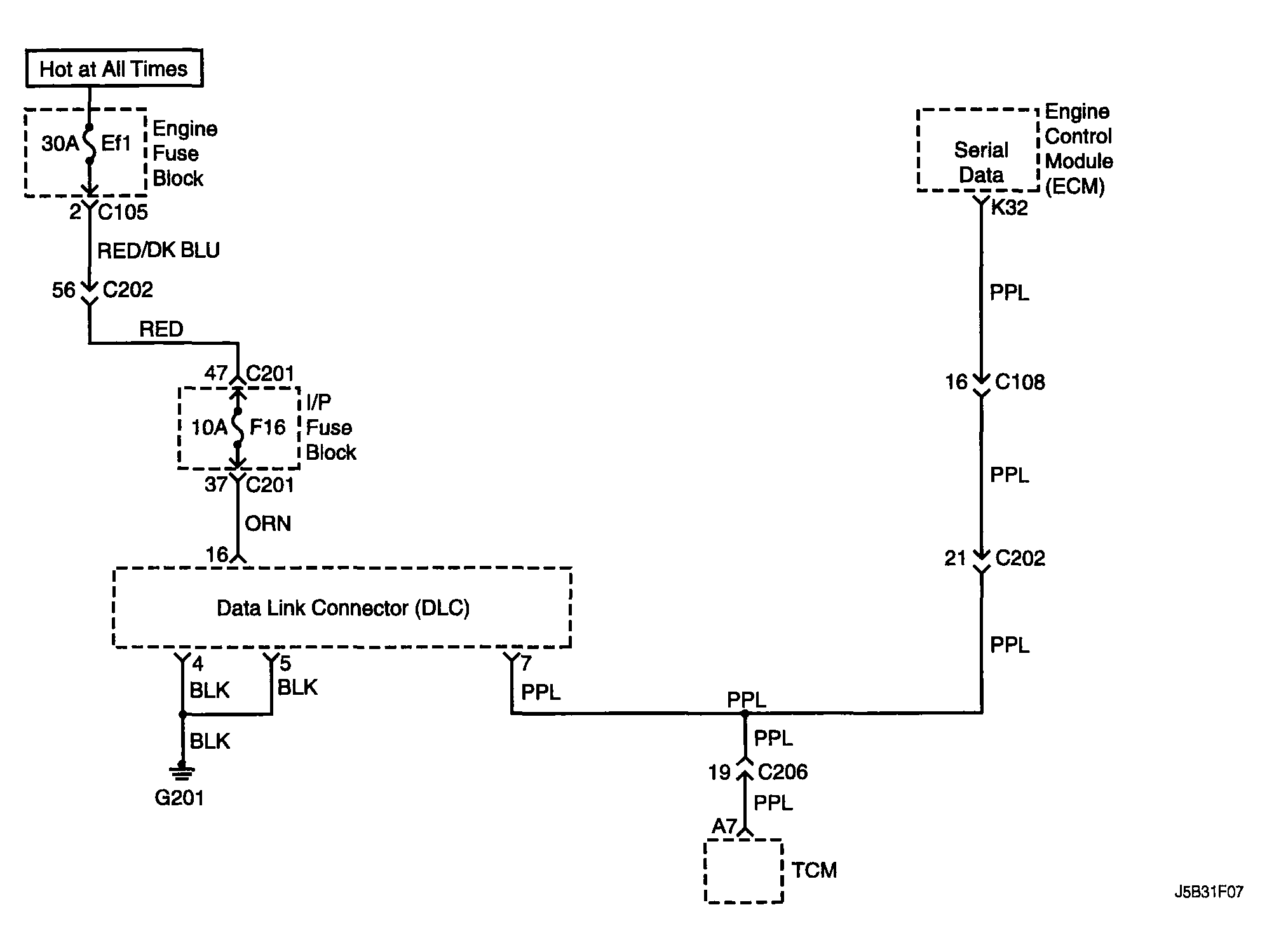

Fig 1: On-Board Diagnostic (OBD II) System Diagram
G04102514Courtesy of SUZUKI OF AMERICA CORP.
