DTC P2196 Oxygen Sensor 1 (O2S1) Rich in Decel Fuel Cutoff (DFCO): Notes

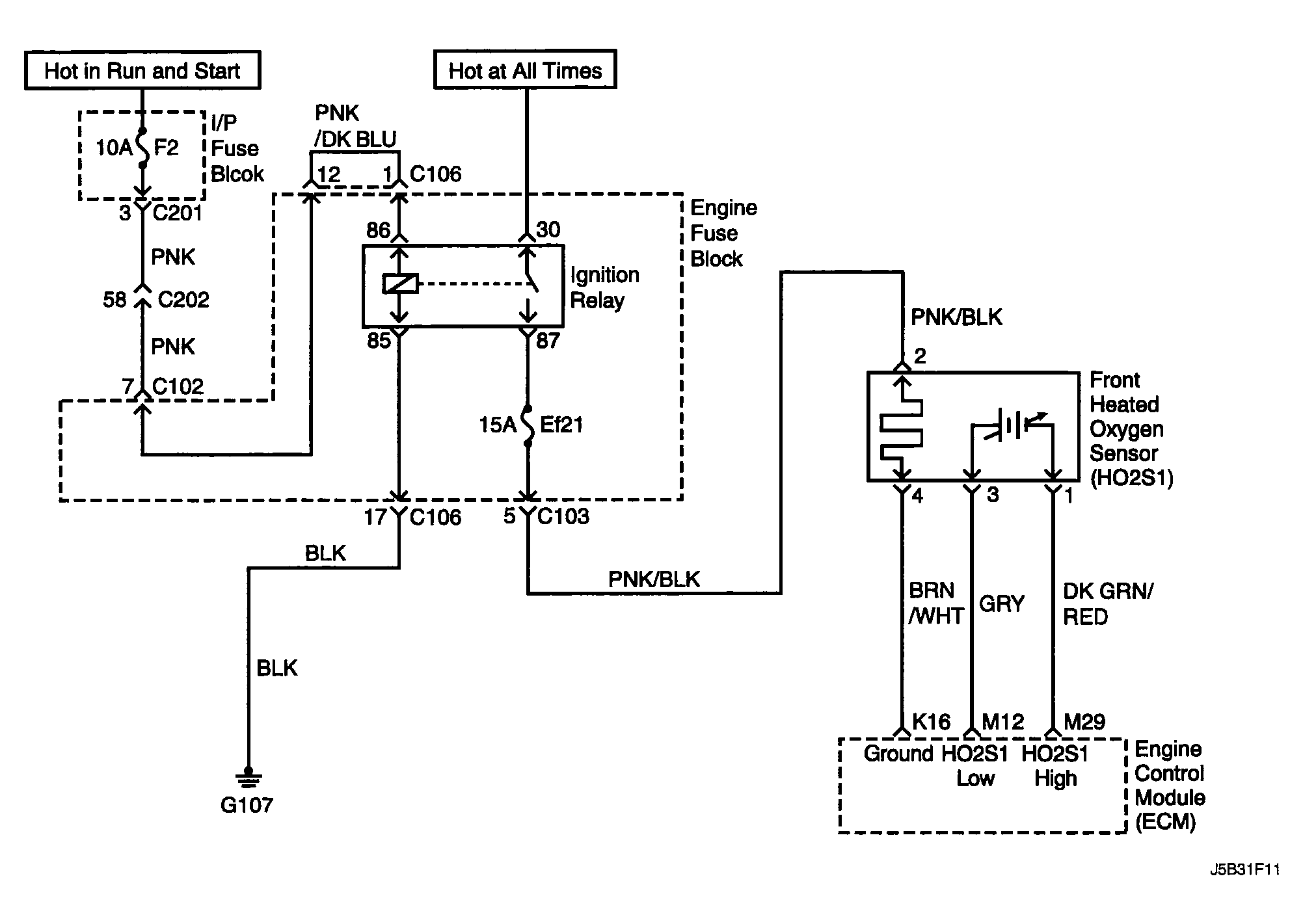

Fig 1: Oxygen Sensor 1 (O2S1) Rich In Decel Fuel Cutoff (DFCO) - Circuit Diagram
G04102587Courtesy of SUZUKI OF AMERICA CORP.
