DTC P0502 Vehicle Speed Sensor No Signal (Engine Side): Notes

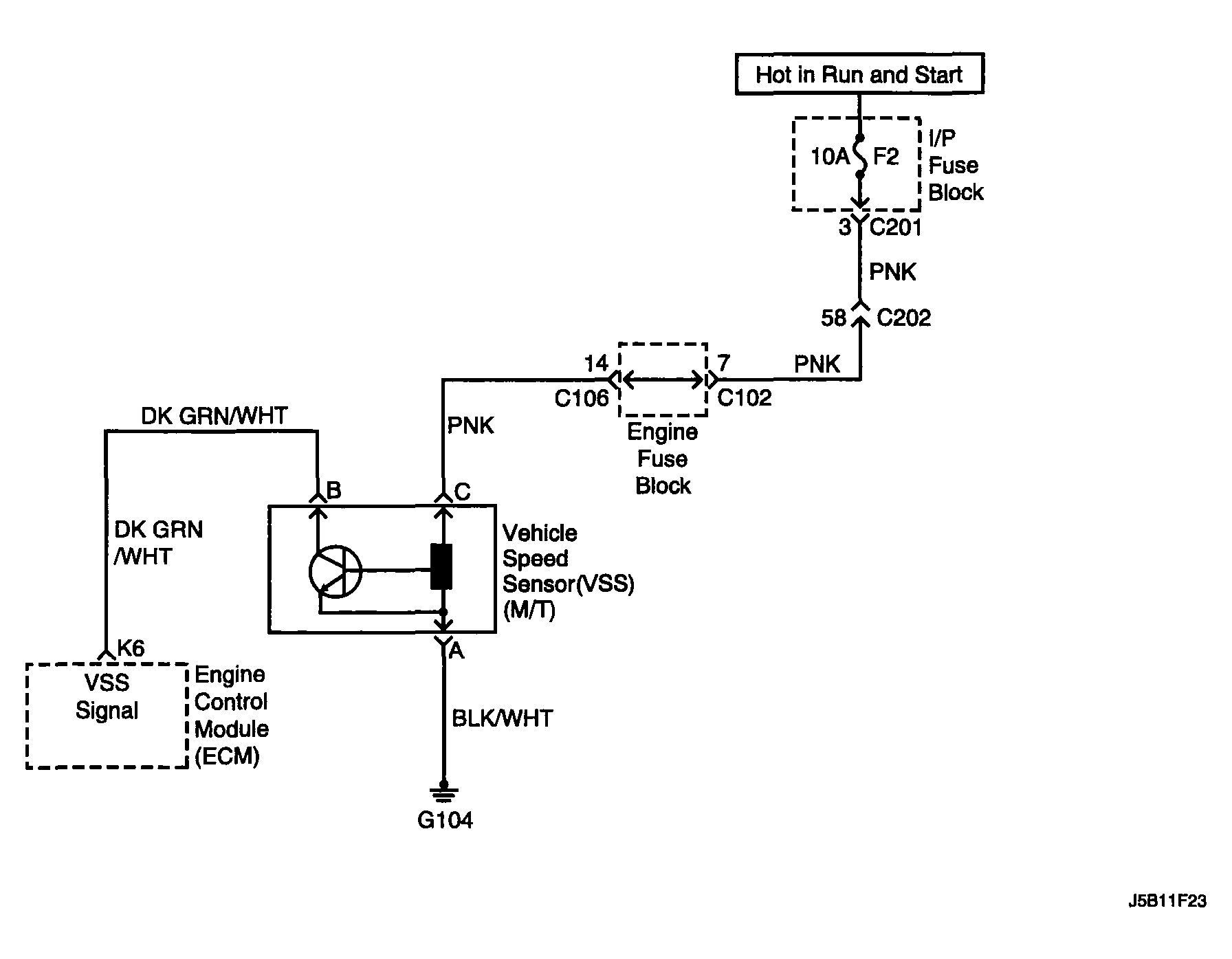

Fig 1: Vehicle Speed Sensor No Signal (Engine Side) - Circuit Diagram
G04102566Courtesy of SUZUKI OF AMERICA CORP.
