DTC P0464 Fuel Level Intermittent Noisy: Notes

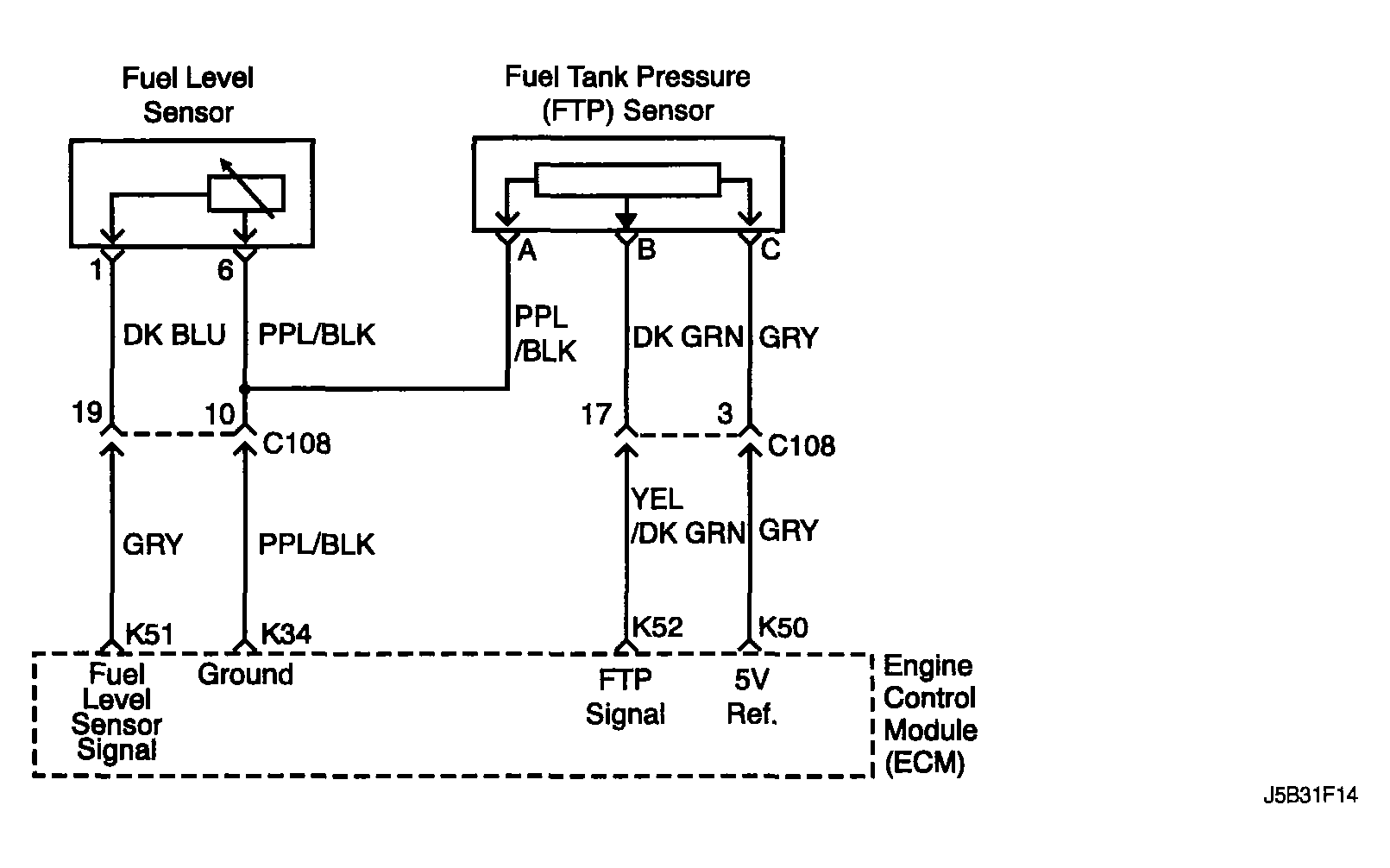

Fig 1: Fuel Level Intermittent Noisy - Circuit Diagram
G04102564Courtesy of SUZUKI OF AMERICA CORP.
