DTC P0351 Ignition Control Circuit A Fault (Cylinder 1 and 4): Notes

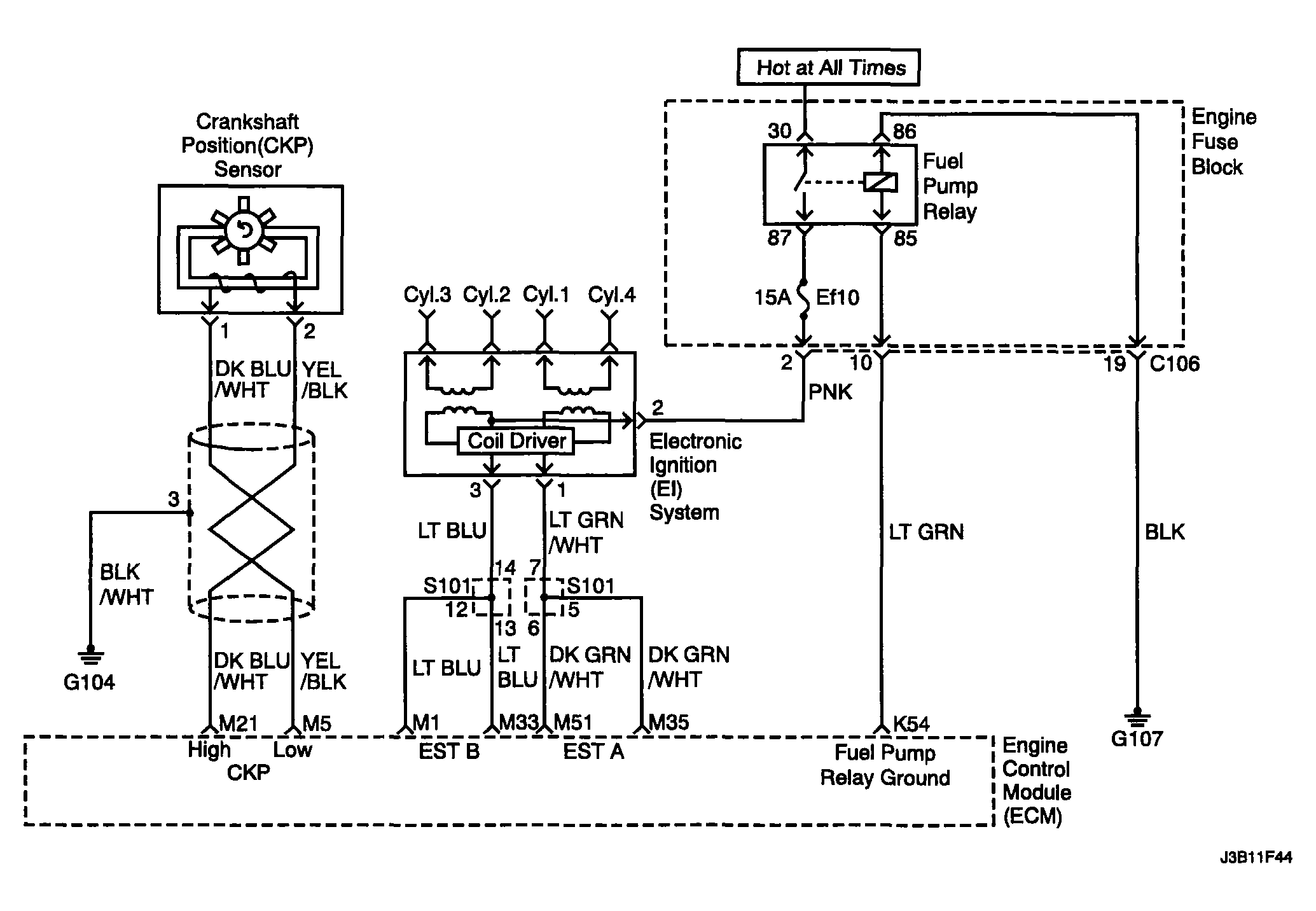

Fig 1: Ignition Control Circuit Fault (Cylinder 1 And 4) - Circuit Diagram
G04102551Courtesy of SUZUKI OF AMERICA CORP.
