DTC P0342 Camshaft Position Sensor No Signal: Notes

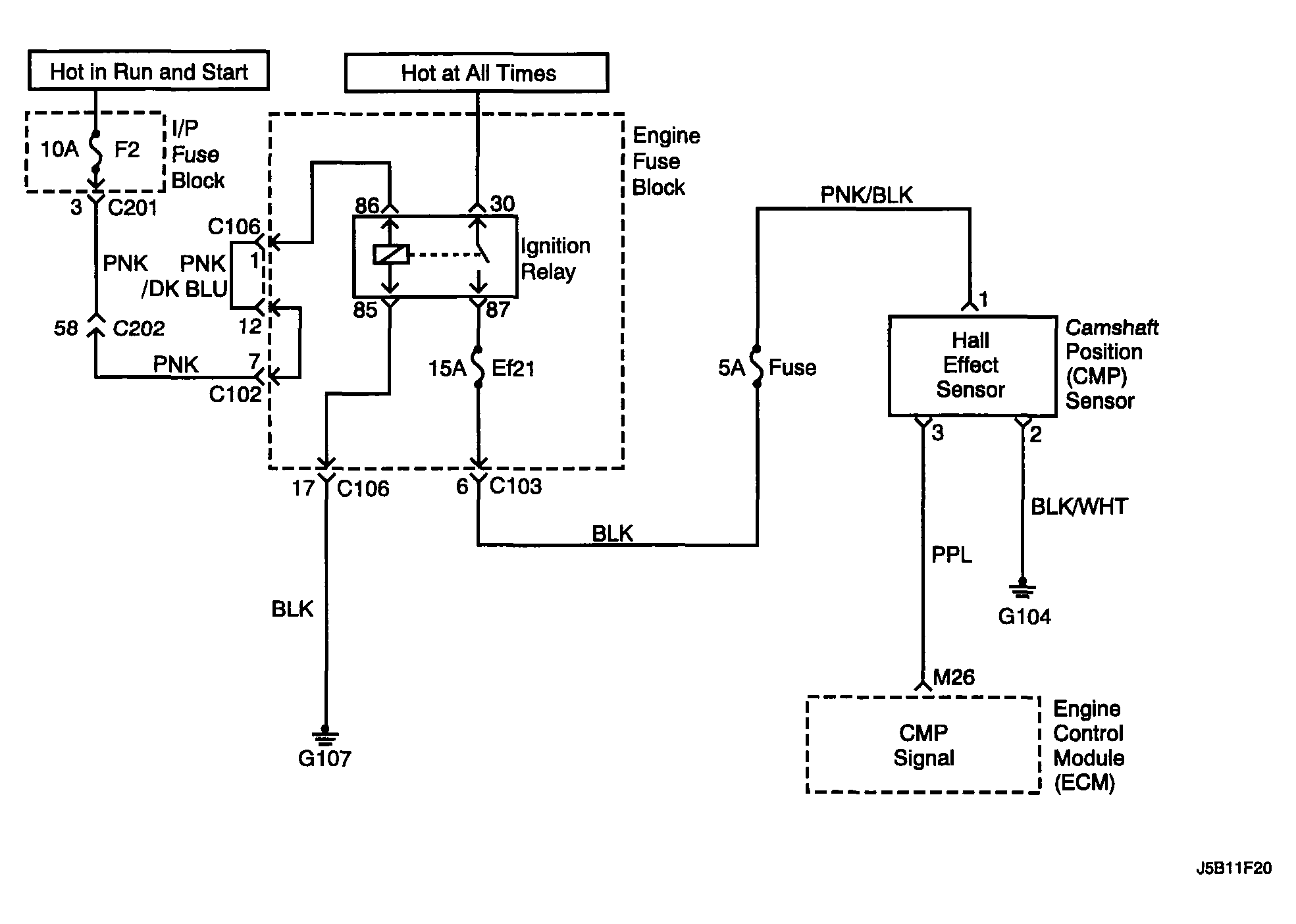

Fig 1: Camshaft Position Sensor No Signal - Circuit Diagram
G04102550Courtesy of SUZUKI OF AMERICA CORP.
