DTC P0202 Injector 2 Circuit Fault: Notes

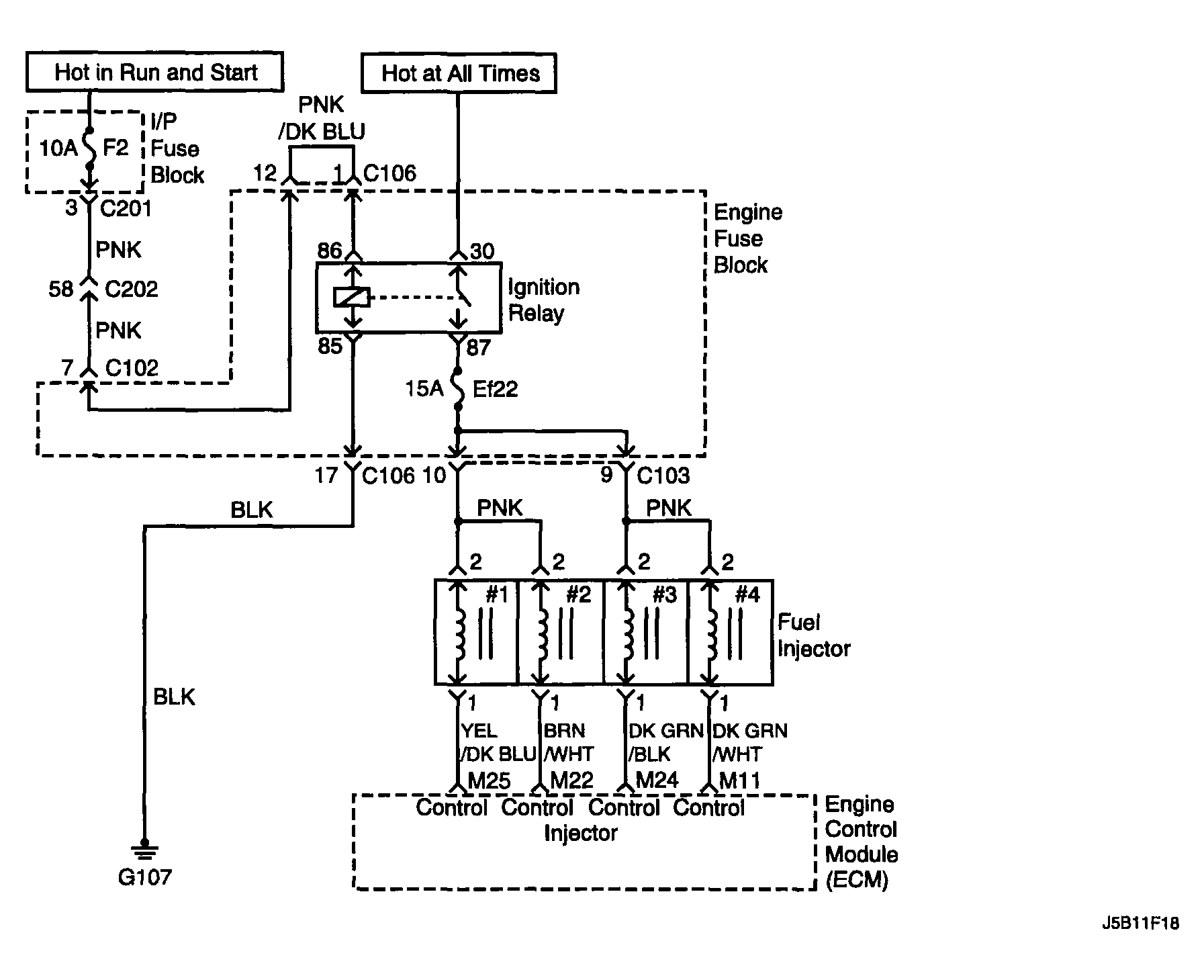

Fig 1: Injector 2 Circuit Fault - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
