Keyless Entry

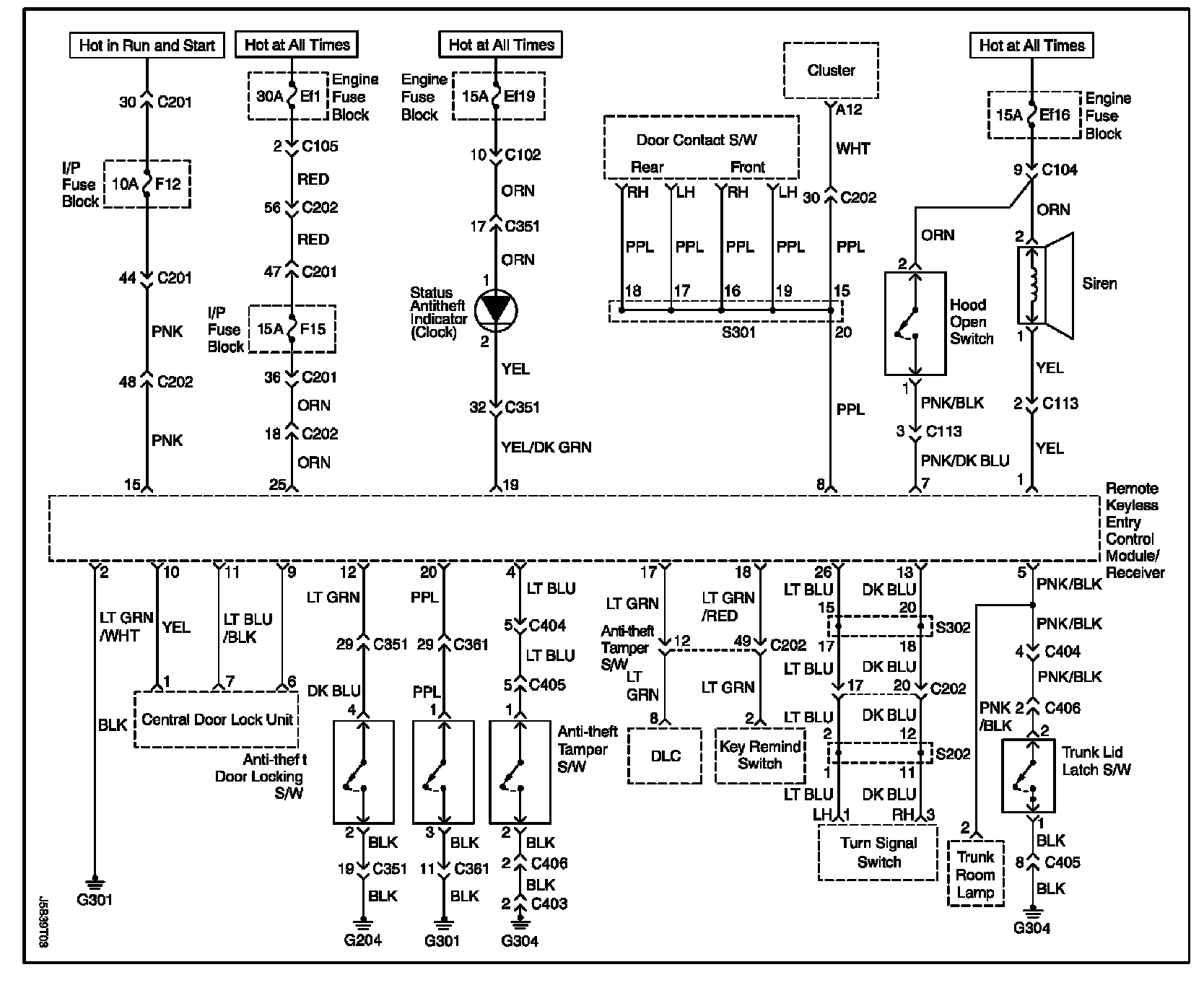

Remote Keyless Entry and Anti-Theft System Circuit Wiring Diagram

For Notchback Model







For Hatchback Model







For Station Wagon Model
