Left Transaxle Mounting Bracket Removal and Installation: Removal

Remove the battery. Refer to "BATTERY AND BATTERY TRAY REMOVAL AND INSTALLATION :".
Install the engine support fixture DW110-060.

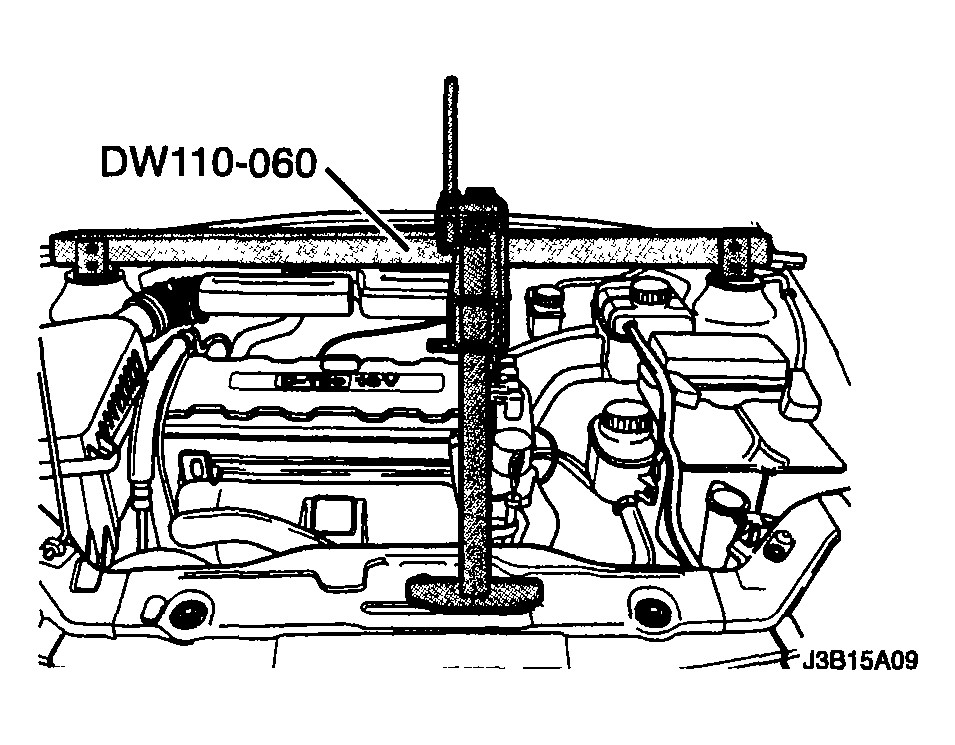

Fig 1: Installing Engine Support Fixture DW110-060
Courtesy of SUZUKI OF AMERICA CORP.
Remove the left transaxle mounting bolts.

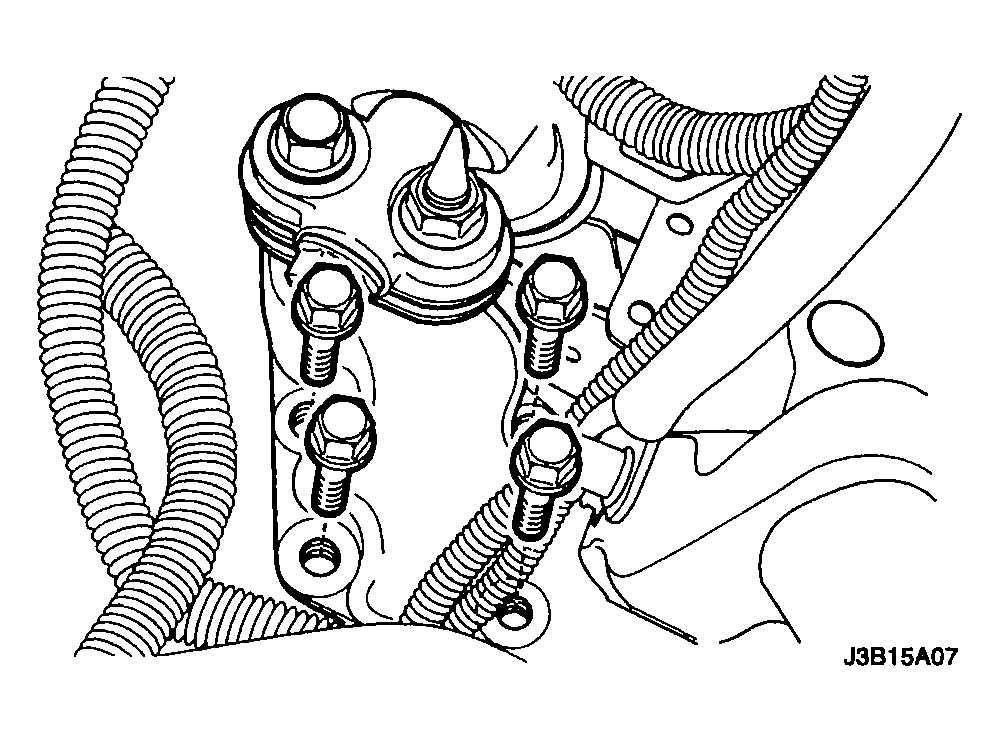

Fig 2: Removing Left Transaxle Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the left transaxle mount bracket cage bolts and nut.
Remove the transaxle mounting bracket.

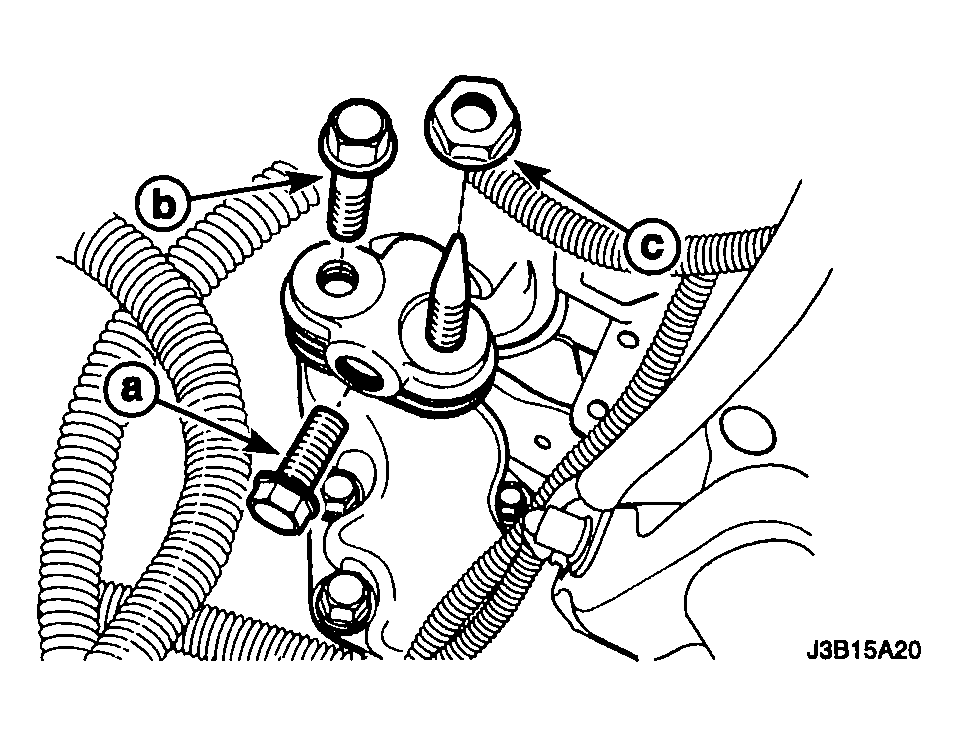

Fig 3: Removing Transaxle Mounting Bracket
Courtesy of SUZUKI OF AMERICA CORP.
