DTC P1606 Failure of External Watchdog: Notes

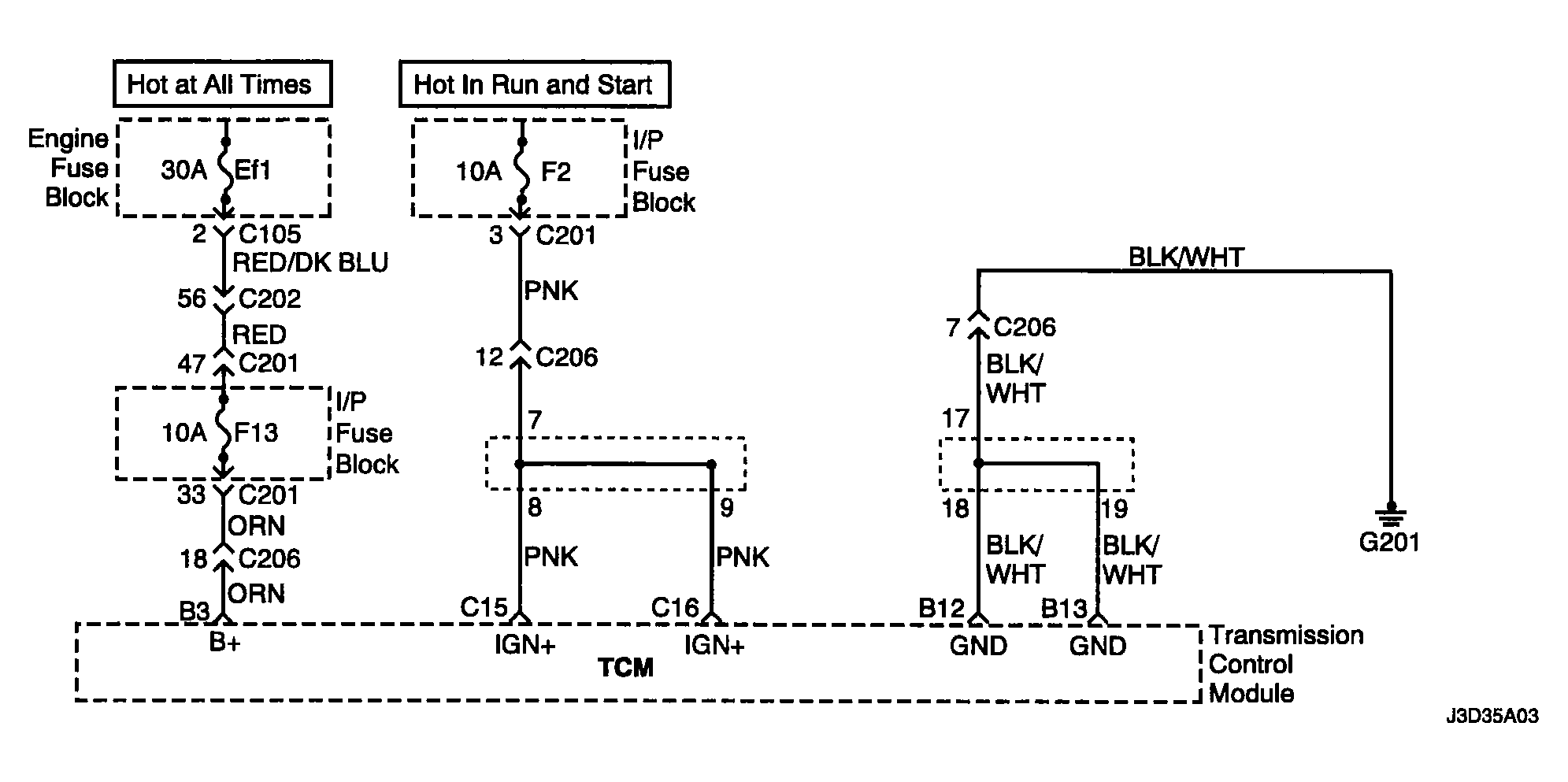

Fig 1: DTC P1606 Failure Of External Watchdog Circuit
G04103477Courtesy of SUZUKI OF AMERICA CORP.
