Strut Assembly Removal and Installation: Removal

Remove the strut upper cap and nut.

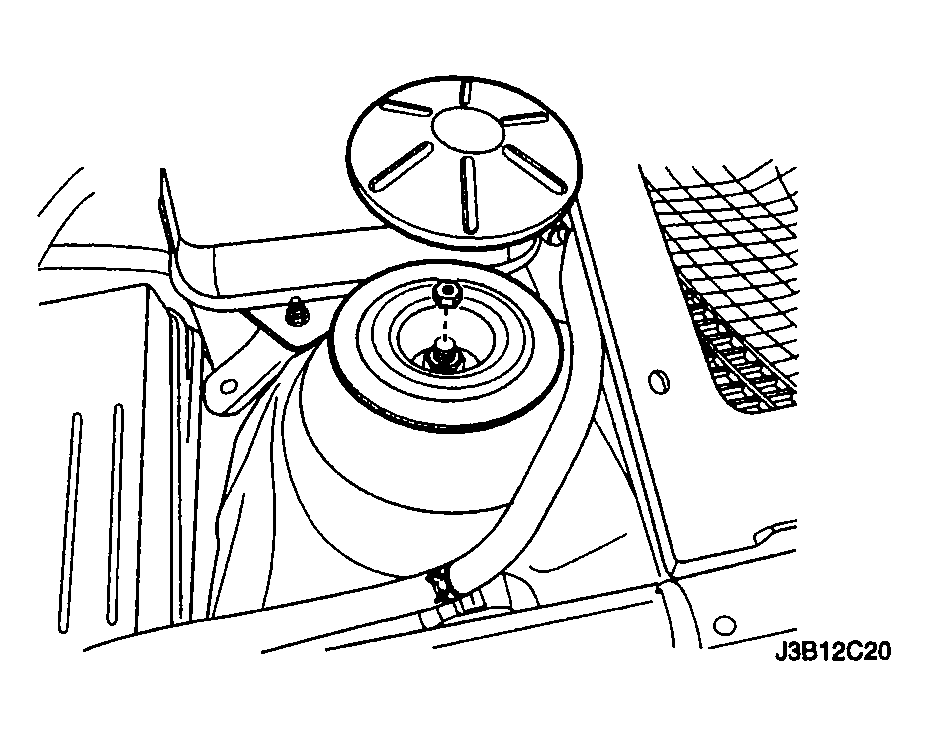

Fig 1: Removing Strut Upper Cap And Nut
Courtesy of SUZUKI OF AMERICA CORP.
Raise and suitably support the vehicle.
Remove the wheel. Refer to "WHEEL REMOVAL AND INSTALLATION :".
On vehicles equipped with an antilock braking system (ABS), disconnect the ABS sensor line from the strut assembly.
Remove the brake line from the securing bracket on the strut assembly.

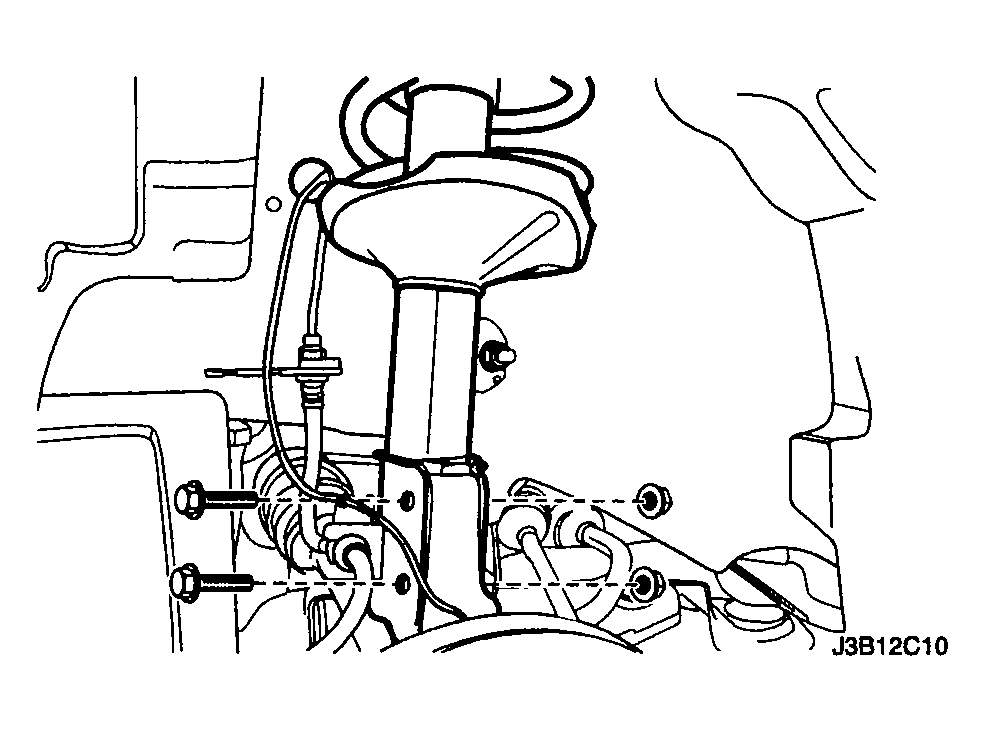

Fig 2: Removing Brake Line From Securing Bracket On Strut Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the stabilizer shaft link by removing the stabilizer link-to-strut assembly nut.

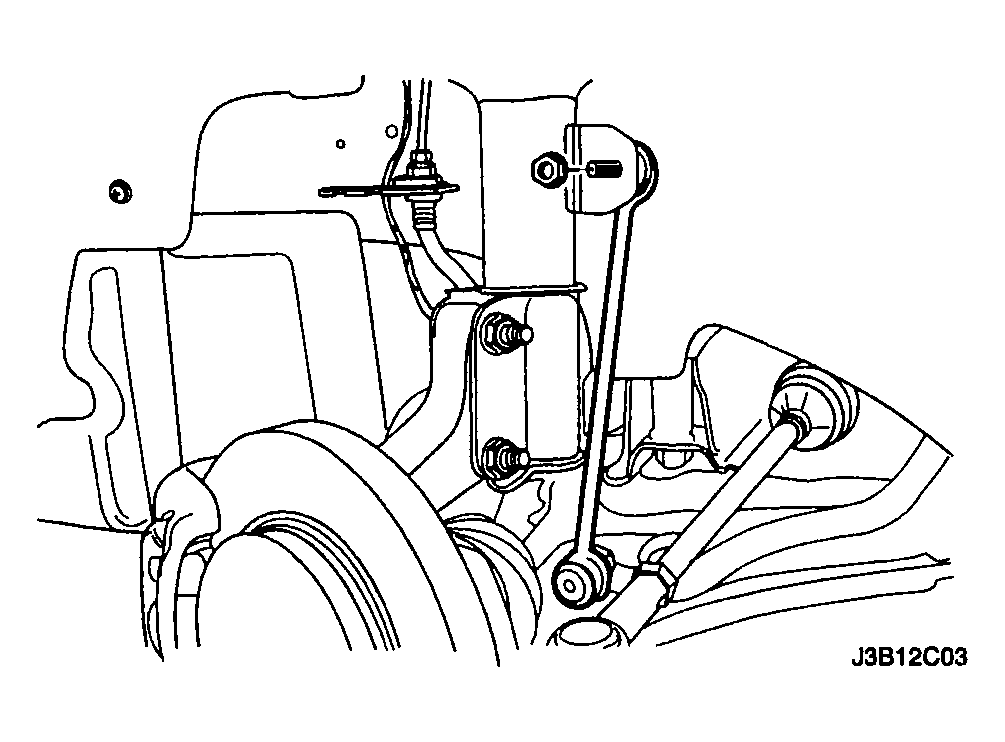

Fig 3: Removing Stabilizer Link
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the steering knuckle by removing the steering knuckle-to-strut assembly nuts and the bolts.

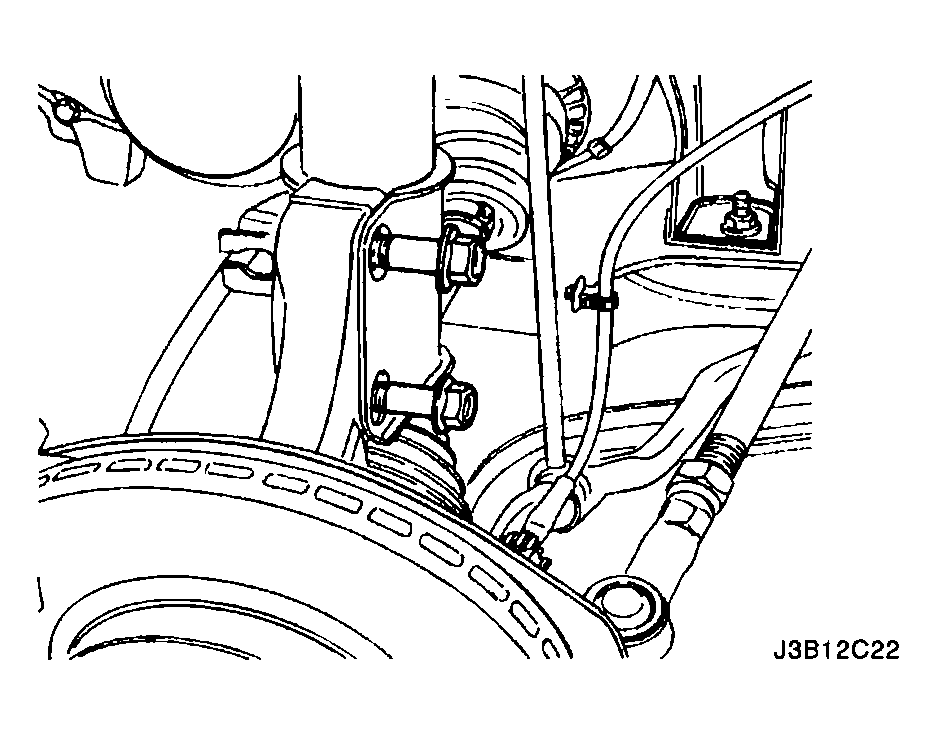

Fig 4: Removing Strut Assembly Bolts And Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the strut assembly.

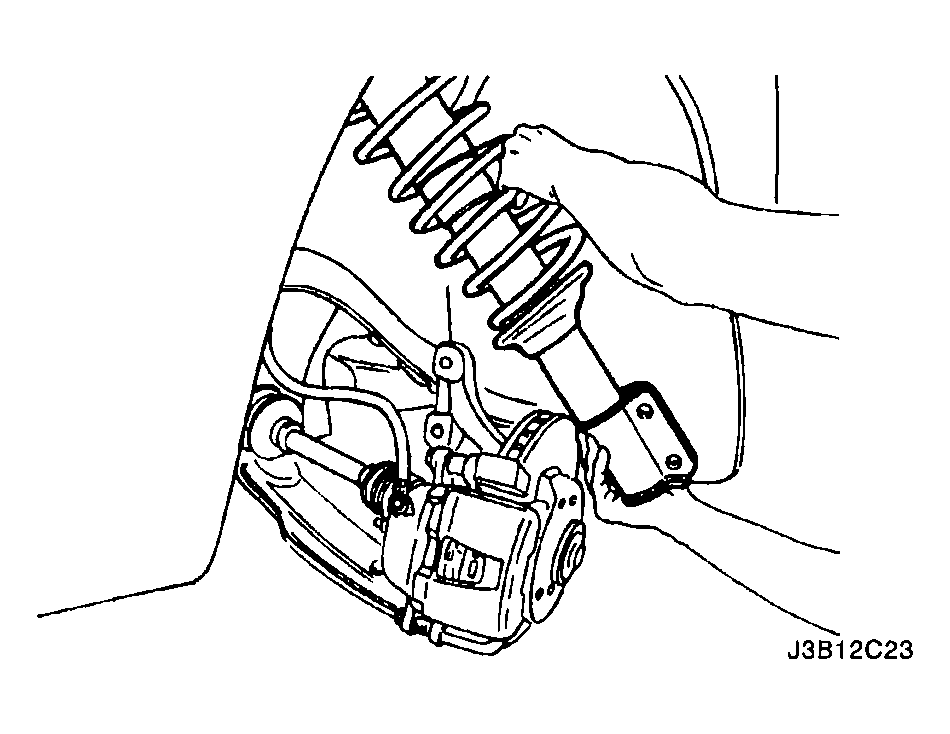

Fig 5: Removing Strut Assembly
Courtesy of SUZUKI OF AMERICA CORP.
