Strut Assembly Removal and Installation: Installation

Install the strut assembly.

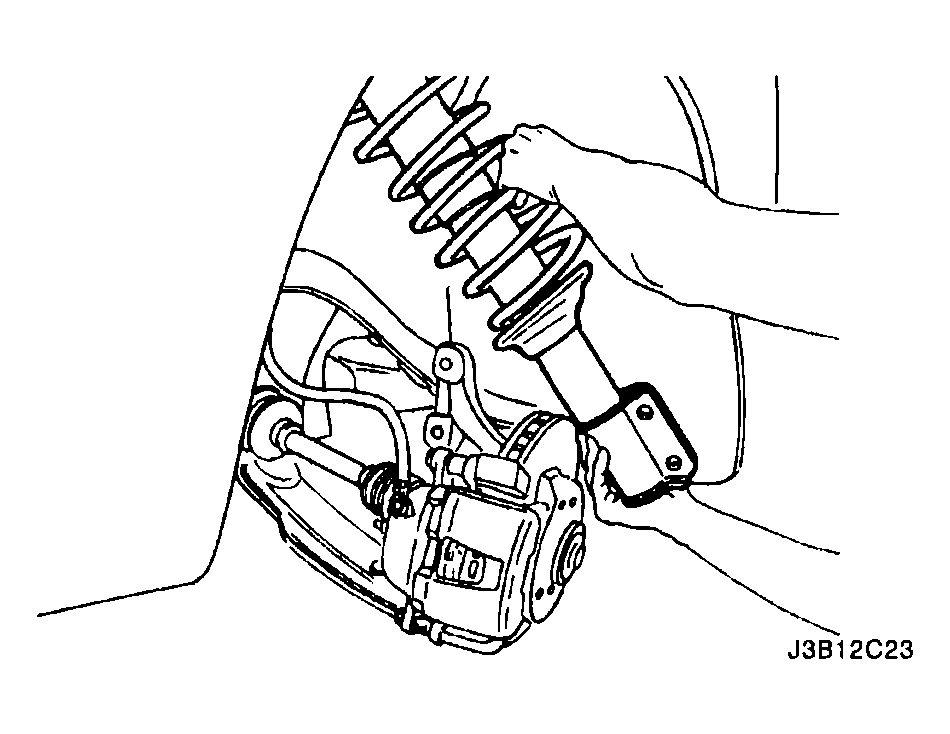

Fig 1: Installing Strut Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Connect the strut assembly to the steering knuckle by installing the steering knuckle-to-strut assembly nuts and the bolts.
Tighten

Tighten the steering knuckle-to-strut assembly nuts and the bolts to 120 N.m (89 lb-ft).

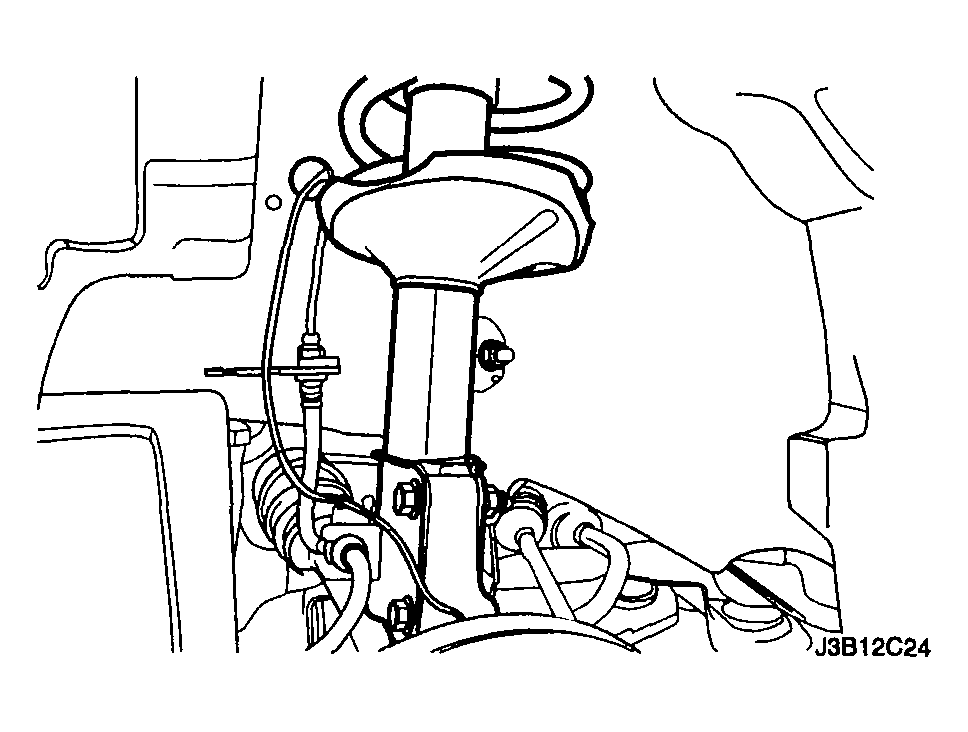

Fig 2: Installing Strut Assembly Bolts And Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Connect the stabilizer shaft link to the strut assembly by attaching the stabilizer link-to-strut assembly nut.
Tighten

Tighten the stabilizer link-to-strut assembly nut to 47 N.m (35 lb-ft).
Install the brake line to the securing bracket on the strut assembly.
On vehicles equipped with the ABS, connect the ABS sensor line to the strut assembly.

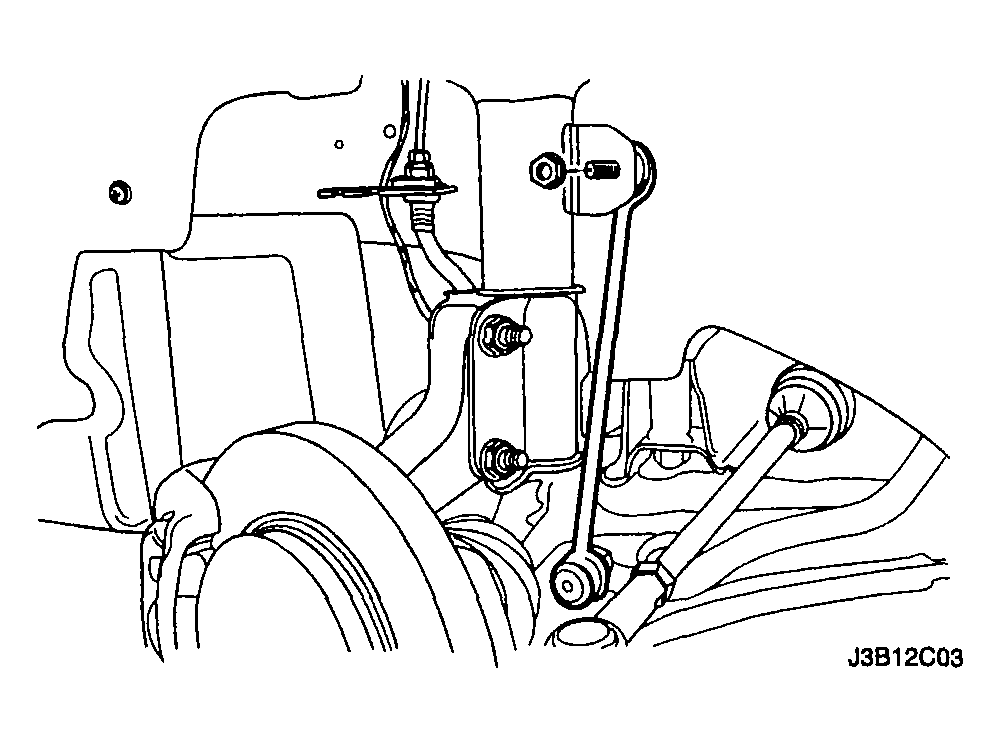

Fig 3: Installing Stabilizer Link
Courtesy of SUZUKI OF AMERICA CORP.
Install the wheel. Refer to "WHEEL REMOVAL AND INSTALLATION :".
Lower the vehicle.
Install the nuts securing the strut assembly to the body of the vehicle.
Tighten

Tighten the strut assembly-to-body nuts to 65 N.m (48 lb-ft).

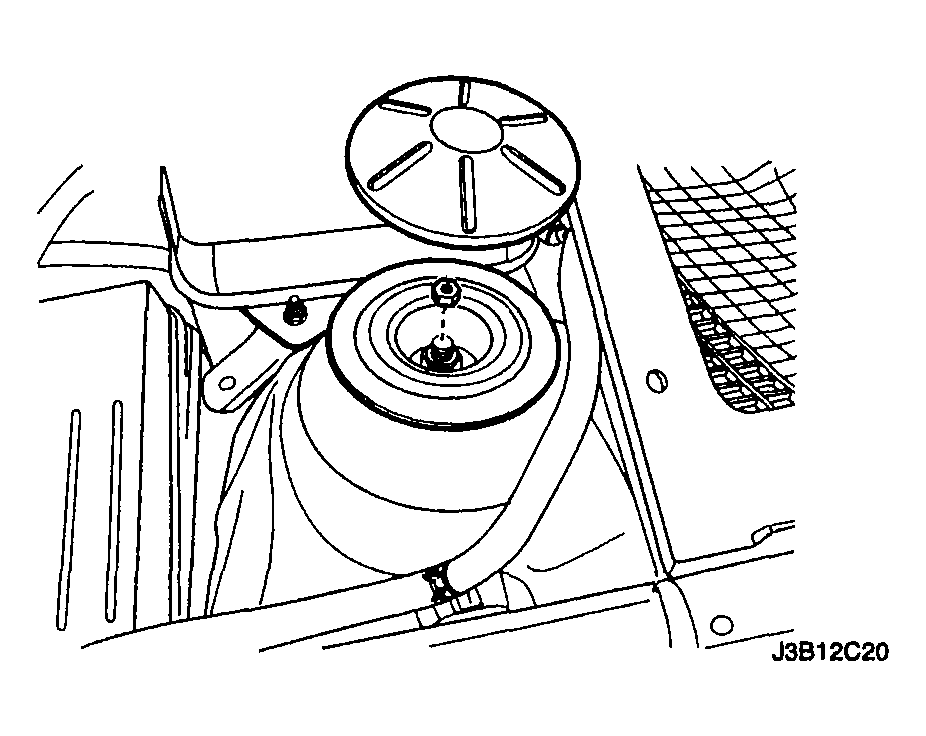

Fig 4: Installing Strut Upper Cap And Nut
Courtesy of SUZUKI OF AMERICA CORP.
