Stabilizer Link Removal and Installation: Installation

Install the stabilizer link.
Install the stabilizer link-to-strut assembly nut.
Tighten

Tighten the stabilizer link-to-strut assembly nut to 47 N.m (35 lb-ft).
Install the stabilizer shaft-to-stabilizer link nut.
Tighten

Tighten the stabilizer shaft-to-stabilizer link nut to 47 N.m (35 lb-ft).

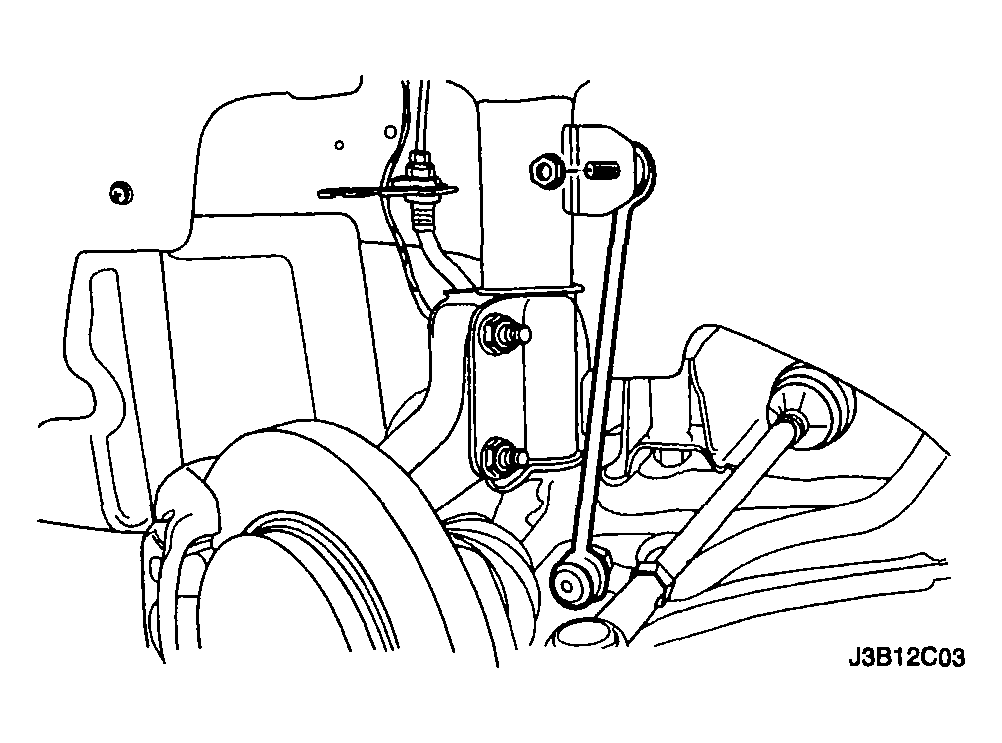

Fig 1: Installing Stabilizer Link
Courtesy of SUZUKI OF AMERICA CORP.
