Front Toe Adjustment

Disconnect the outer tie rods from the knuckle assemblies. Refer to "OUTER TIE ROD REMOVAL AND INSTALLATION :".

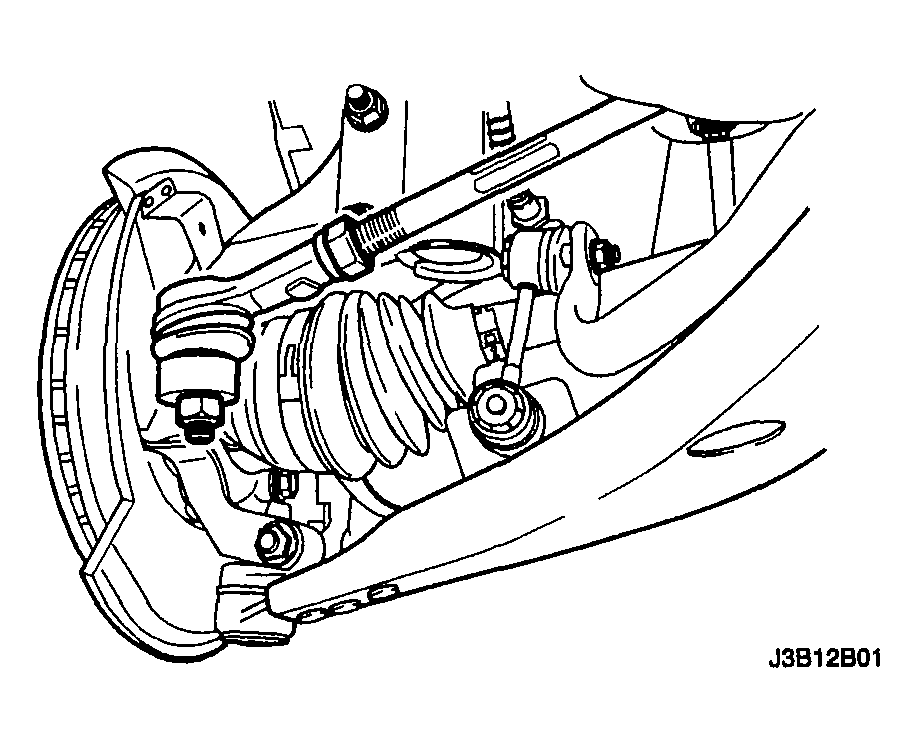

Fig 1: Identifying Outer Tie Rods And Adjuster Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Turn the right and the left outer tie rods and the adjuster nuts to align the toe to 0.0 +/- 0.10 degree.
Reconnect the outer tie rods to the knuckle assemblies. Refer to "OUTER TIE ROD REMOVAL AND INSTALLATION :".
NOTE: In this adjustment, the right and the left tie rods must be equal in length, or the tires will wear unevenly.
