Dust Boot Removal and Installation: Removal

  1. Raise and suitably support the vehicle.
  2. Remove the wheel. Refer to "WHEEL REMOVAL AND INSTALLATION :".
  3. Remove the outer tie rod. Refer to "OUTER TIE ROD REMOVAL AND INSTALLATION :".
  4. Remove the dust boot retaining clamps.
  5. Remove the dust boot.

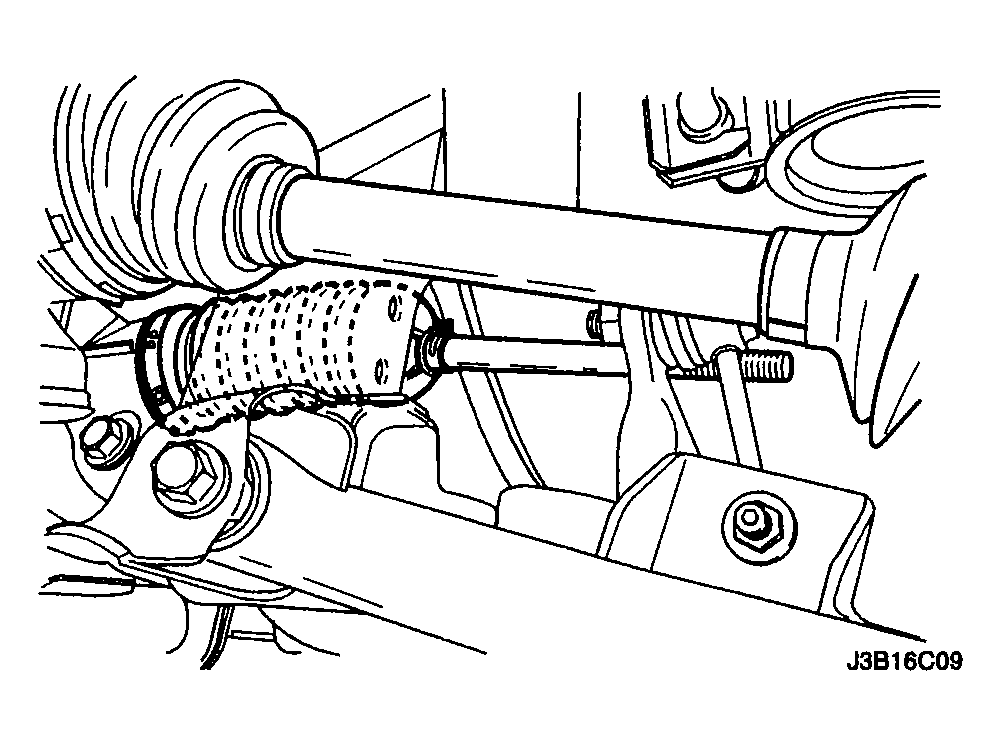

    Fig 1: View Of Outer Tie Rod And Dust Boot
    G04103968Courtesy of SUZUKI OF AMERICA CORP.
