Passenger Airbag Module
WARNING:

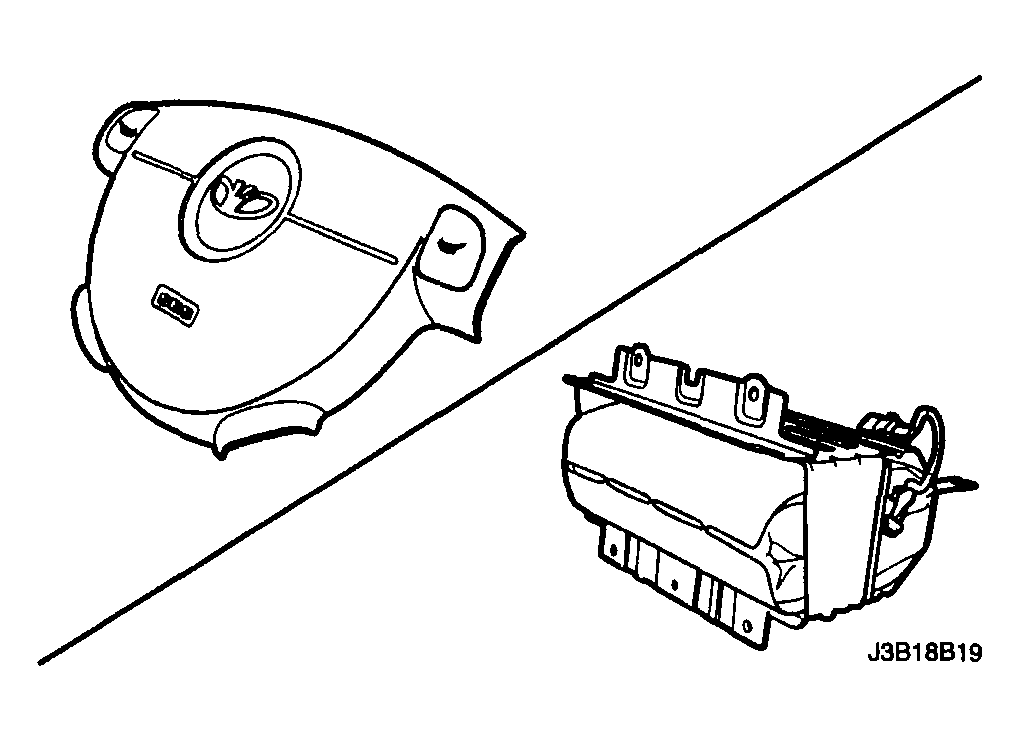

Tempering with passenger airbag module creates the risk of an injury from unexpected deployment. Therefore, the passenger airbag module should never be disassembled. The passenger airbag module is on the passenger part of the instrument panel. The passenger airbag module contains an igniter charge and a gas generator to inflate the folded airbag.
The passenger airbag module is on the passenger part of the instrument panel. The passenger airbag module contains an igniter charge and a gas generator to inflate the folded airbag.
The airbag connector contains a shorting bar, which makes the circuit shorted when the connector is disconnected. The shorting bar prevents current from travelling through the passenger airbag module during servicing. The shorting bar is disengaged when the connector is connected.
