DTC B1449: OC Passenger Communication Error: Notes

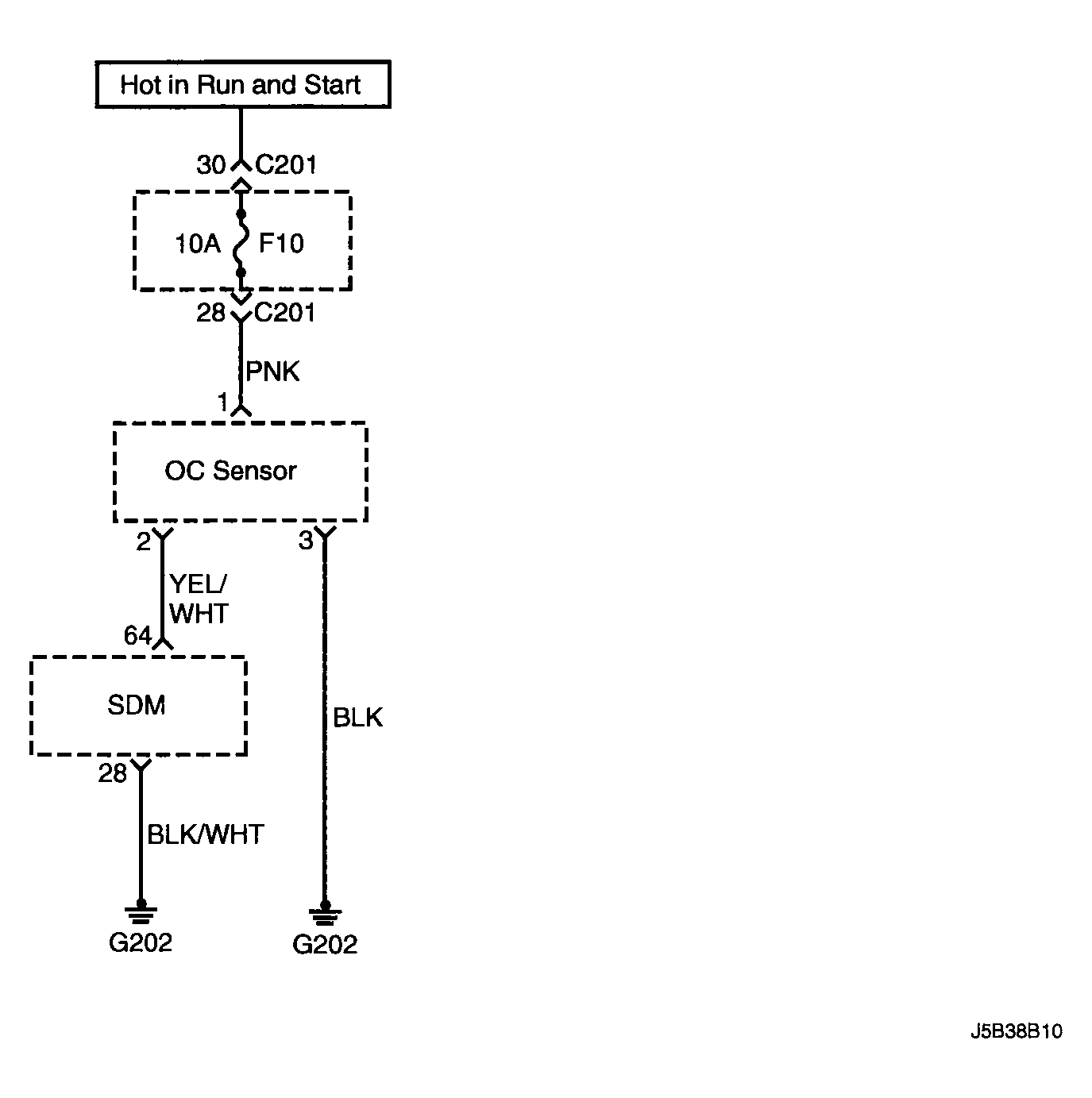

Fig 1: DTC B1449 OC Passenger Communication Error - Wiring Diagrams
G04104291Courtesy of SUZUKI OF AMERICA CORP.
