DTC B1395: Firing Loops Interconnection Fault: Notes

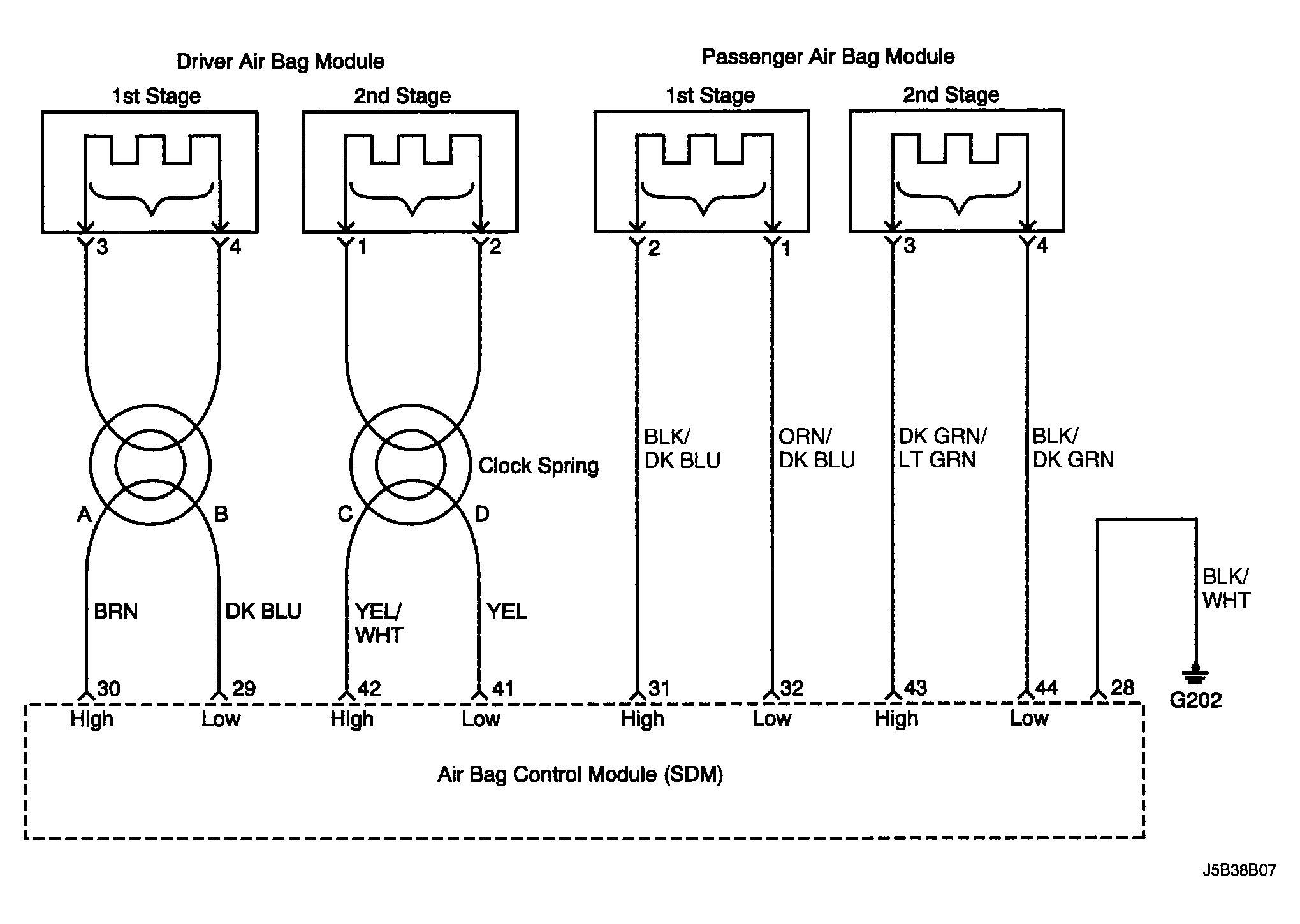

Fig 1: DTC B1395 Firing Loops Interconnection Fault - Wiring Diagrams
G04104276Courtesy of SUZUKI OF AMERICA CORP.
