Non CALIFORNIA Only ECM Reprogramming For OBD II Malfunction (TS_04_09135R)
Publication date: 2005-09-13Reference number: TS_04_09135R
NON CALIFORNIA ONLY ECM REPROGRAMMING FOR OBD II MALFUNCTION
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 04 09135R, Date of Issue:
September 13, 2005
| SUZUKI: | 2005 FORENZA, FORENZA WAGON, RENO (RQ420) |
| SECTION: | Engine |
CONDITION
- The ECM software may cause the Malfunction Indicator Lamp (MIL) to fail to illuminate during certain types of malfunctions.
- This update will also correct an error that will cause certain OBD II information to read incorrectly on a generic scan tool
CAUSE
ECM software logic.
CORRECTION
Reprogram the Engine Control Module (ECM) on all affected vehicles in dealer inventory and at no charge on all affected customer vehicles that are brought into Suzuki dealerships for any reason.
NOTE:
For vehicles sold or registered in California please refer to Technical Bulletin, TS 05 09135
.
REQUIRED TOOLS AND SOFTWARE
REQUIRED TOOLS AND SOFTWARE DESCRIPTION
| Part Numbers | Description | Qty | Notes |
|---|---|---|---|
| 09910-06520 | SDS Tool Kit | 1 | Kit Includes USB Cable, Diagnostic Interface Box and DLC Cable |
| Suzuki Pitstop | 3_SOFTWARE.EXE | 1 | Most Current Pass-Thru Reprogramming Software |
| Suzuki Pitstop | 4_DATABASE1.EXE | 1 | Most Current Pass-Thru Reprogramming Database Calibration Files |
| 99963-01501-224 | Reprogram Label | 1 | Please Fill Out Completely and Affix to the Interior of the Glove Box |
| Suzuki Pitstop | Suzuki Pass-Thru Reprogramming Tool Operator's Manual | 1 | Must be read and understood completely before attempting to reprogram a vehicle |
WARRANTY CLAIM INFORMATION
WARRANTY CLAIM INFORMATION
| Labor Operation | Description | Failed Part Number | Complaint Code | Defect Code | Labor Time |
|---|---|---|---|---|---|
| FB32P0 | Controller Assm, Injection | 33920-85Z** | 34 | 99 | 0.3 Hrs |
Reprogramming Procedure
- Log onto the SCAT system and access the Suzuki Pitstop.
- Download and review the Suzuki Pass-Thru Reprogramming Tool Operator's Manual. This must be read and understood COMPLETELY before attempting to reprogram the ECM.
- Following the procedure outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual, download and install the Pass-Thru Reprogramming Software "3_SOFTWARE.EXE" if it is not already installed
- Download and unzip Suzuki Pass-Thru Reprogramming Data Base "4_DATABASE1.EXE" onto your PC. Follow the procedure in Section 3.2 of the Operator's Manual to update the Database files. This step is only required to be done once to accommodate all vehicles covered under this TSB.NOTE: This Database "4_DATABASE1.EXE" has been updated with newer data for reprogramming without changing the file name. You are requested to download in order to update the database in your PC.

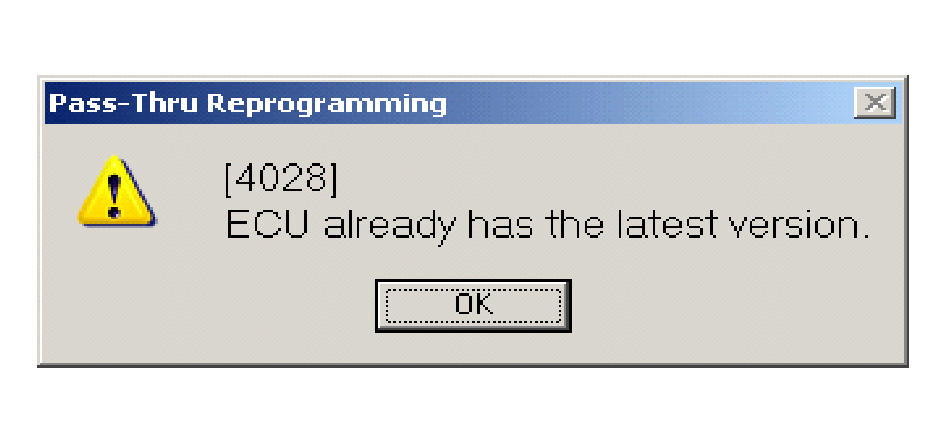

- Following the procedures outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual, hook up the SDS Interface Tool P/N 09910-06520 to the vehicle and run the ECM reprogramming software. Continue to step 6. If the message "[4028] ECU already has the latest version" appears, click "OK" and "Finish". No further action is required.

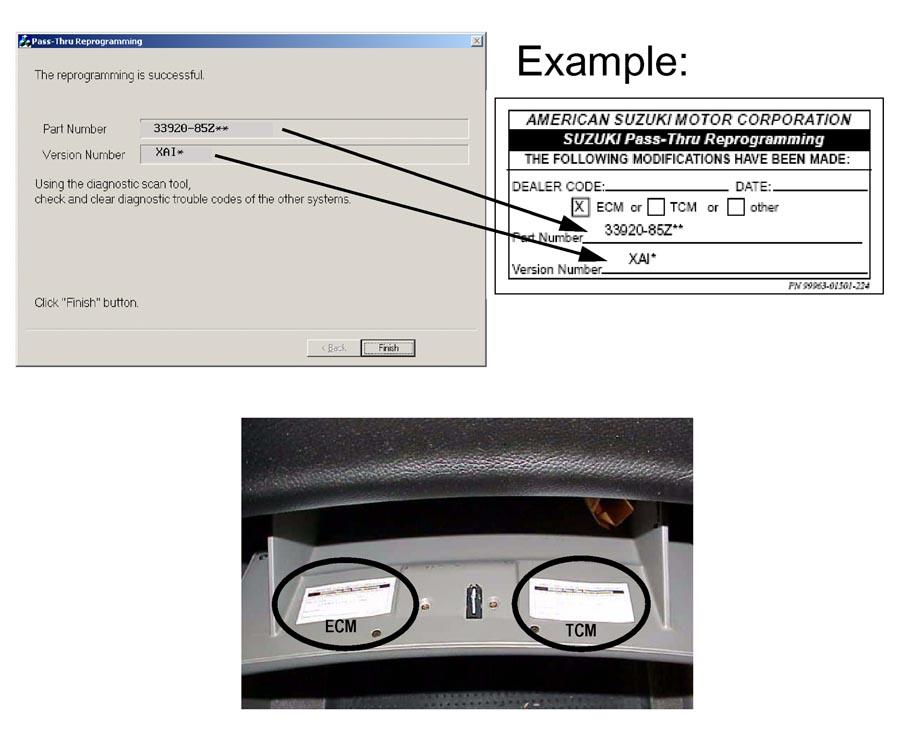

- Fill out the Reprogram Label P/N 99963-01501-224 (the part number and version will be displayed at the "The reprogramming is successful" screen). Then affix the label to the back of the glove box door as pictured below.
