DTC P0449 Evaporative Emission System Vent Solenoid Circuit Fault: Notes

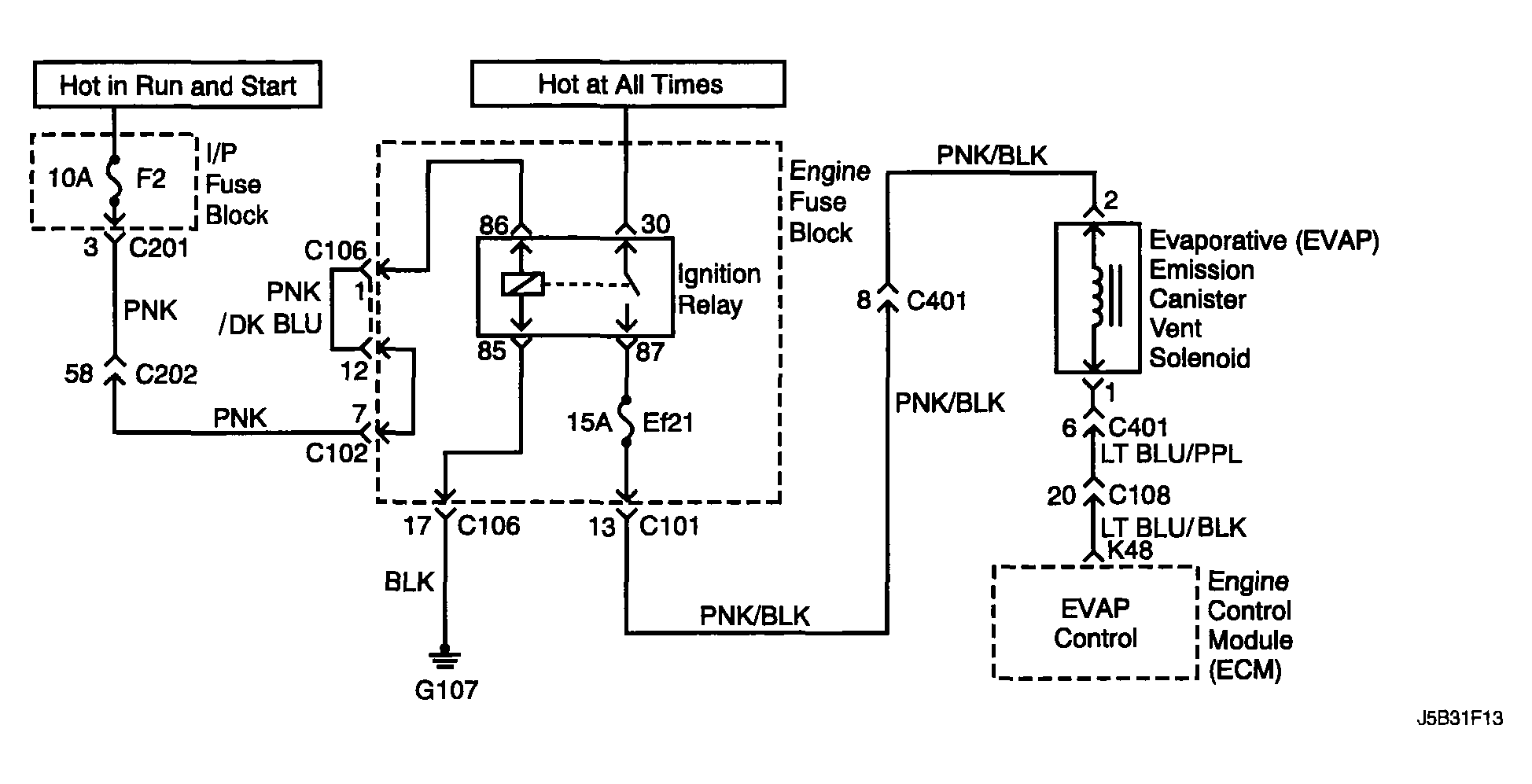

Fig 1: Evaporative Emission System Vent Solenoid Circuit Fault - Circuit Diagram
G04102558Courtesy of SUZUKI OF AMERICA CORP.
