Engine Compartment

For fuse/relay box identification, refer to illustration.

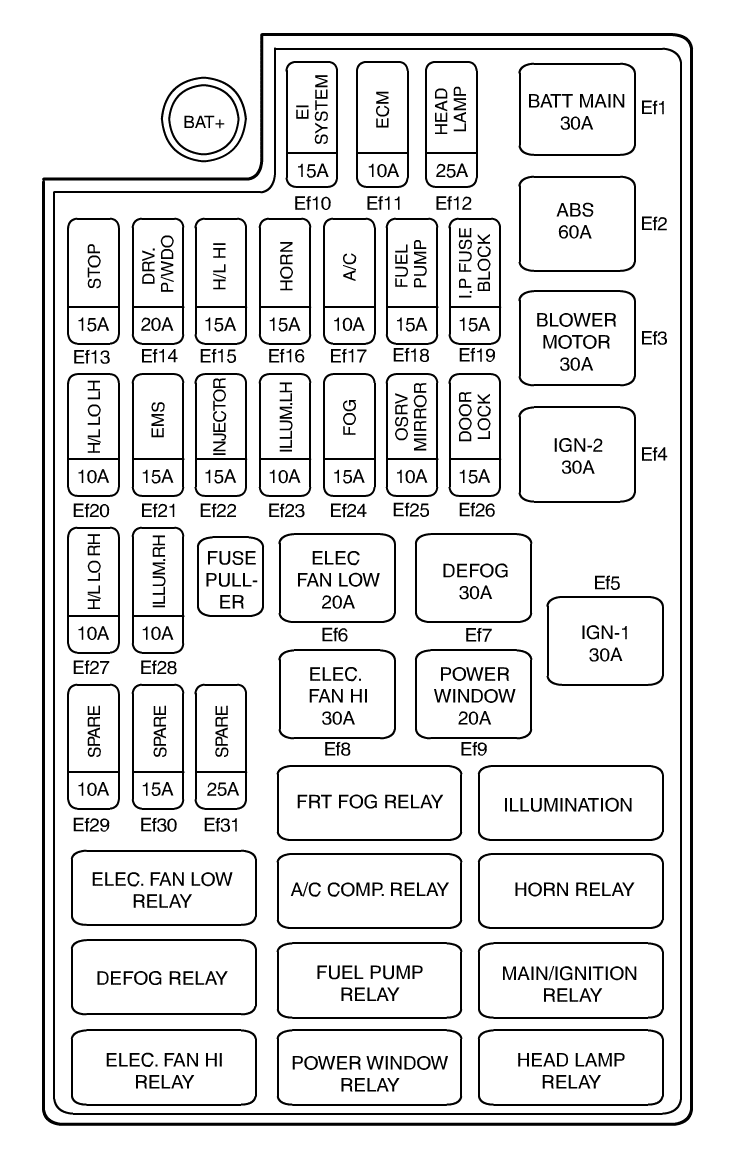

Fig 1: Identifying Engine Compartment Fuse/Relay Block

Courtesy of SUZUKI OF AMERICA CORP.

Engine Compartment Fuse/Relay Assignments

Fuse	Rating	Source	Circuit
SB (Slow-Blown Fuse)
EF1	30A	B+	Battery Main (F13 ~ F16, F22 ~ F24)
EF2	60A	B+	EBCM, Oil Feeding Connector
EF3	30A	B+	Blower Relay
EF4	30A	B+	Ignition Switch-2
EF5	30A	B+	Ignition Switch-1
EF6	20A	B+	Cooling Fan Low Relay
EF7	30A	B+	Defog Relay
EF8	30A	B+	Cooling Fan HI Relay
EF9	20A	IGN 2	Power Window Switch
Blade Type Fuse
EF10	15A	IGN 1	Fuel Connector, ECM (MR-140), LEGR, EI System
EF11	10A	B+	ECM
EF12	25A	B+	Head Lamp Relay, ILLUM. Relay
EF13	15A	B+	Brake Switch
EF14	20A	IGN 2	Power Window Switch
EF15	15A	Light	Head Lamp HI
EF16	15A	B+	Horn Relay, Siren, Hood Contact Switch
EF17	10A	B+	A/C Comp. Relay
EF18	15A	IGN 1	Fuel Pump
EF19	15A	B+	Cluster, Key Remind S/W, MAP Lamp, Room Lamp, Trunk Open Lamp, Trunk Open S/W
EF20	10A	Light	Head Lamp Low
EF21	15A	IGN 1/B+	EVAP Canister Purge Solenoid, HO2S, Cooling Fan Relay
EF22	15A	IGN 1/B+	Injector
EF23	10A	Illumination	License Plate Lamp, Chime Bell, Tail Lamp, Head Lamp
EF24	15A	B+	Fog Lamp Relay
EF25	10A	IGN 2	Electric OSRV Mirror
EF26	15A	B+	Central Door Lock Unit
EF27	10A	Light	Head Lamp Low
EF28	10A	Illumination	ILLUM. Circuit, Head Lamp, Tail Lamp, DRL Relay
EF29	10A	Spare	Not Used
EF30	15A	Spare	Not Used
EF31	25A	Spare	Not Used
