Charging System Wiring Diagram

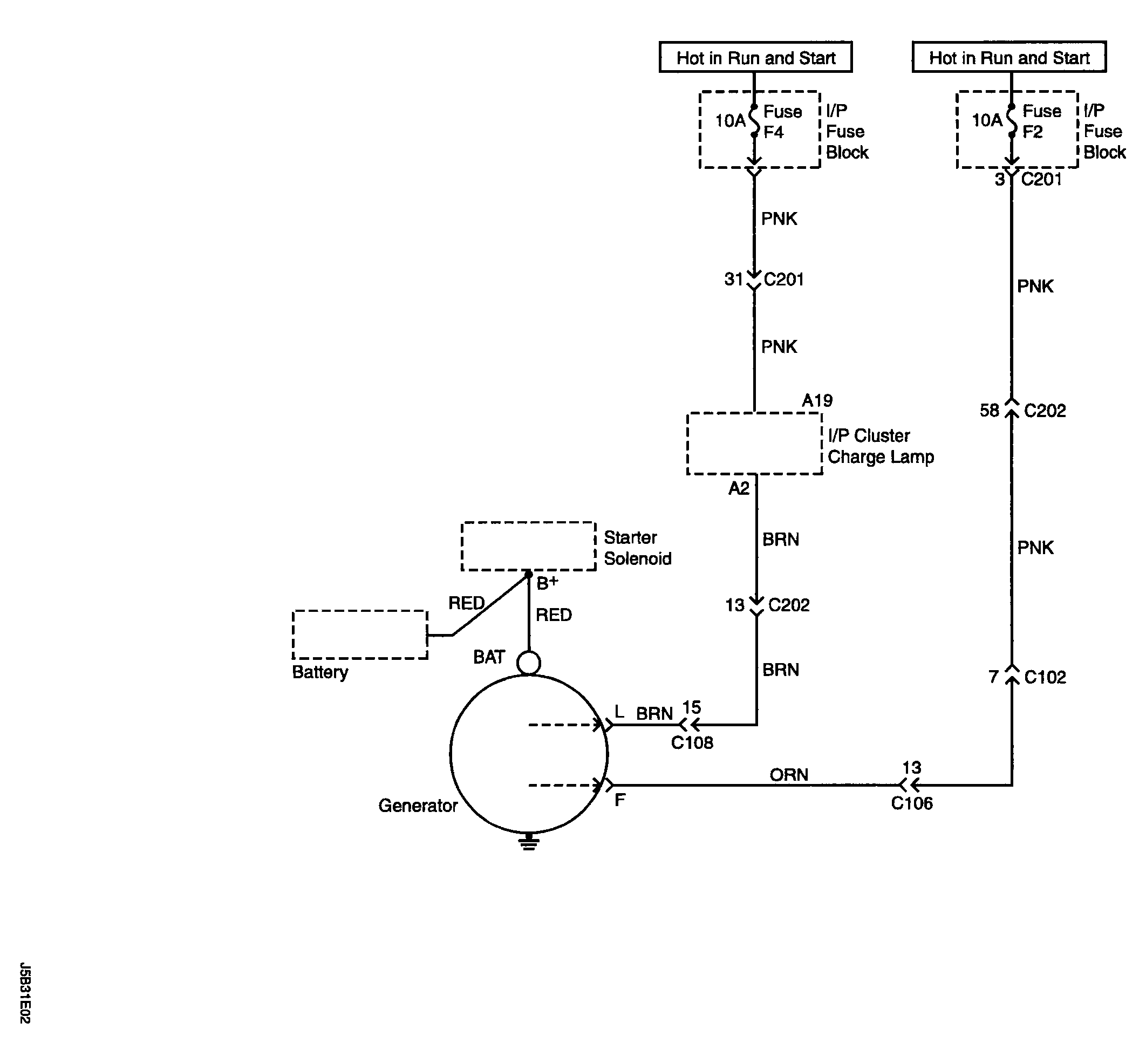

Fig 1: Charging System - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
