Drive Axle Assembly Removal and Installation: Installation

NOTE: Do not damage the seals.

Clean the hub seal and the transaxle seal.
Install the drive axle into the transaxle.
Install the wheel hub onto the axle shaft.

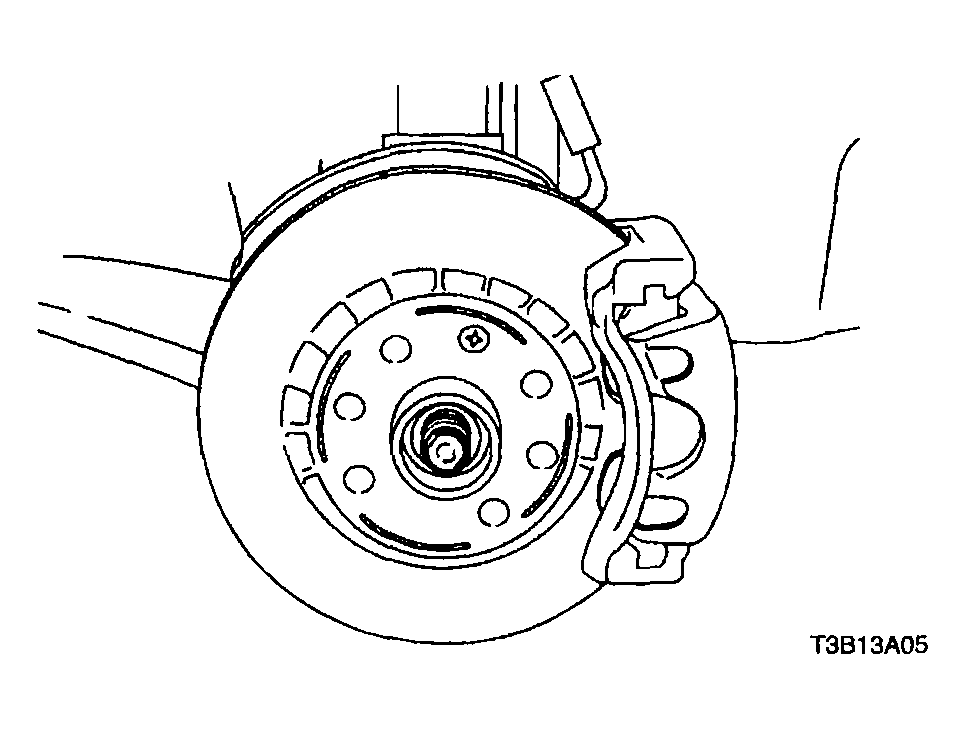

Fig 1: Installing Wheel Hub Onto Axle Shaft
Courtesy of SUZUKI OF AMERICA CORP.
Install the tie rod into the knuckle/strut and install the tie rod nut.
Tighten

Tighten the tie rod nut to 55 N.m (41 lb-ft).

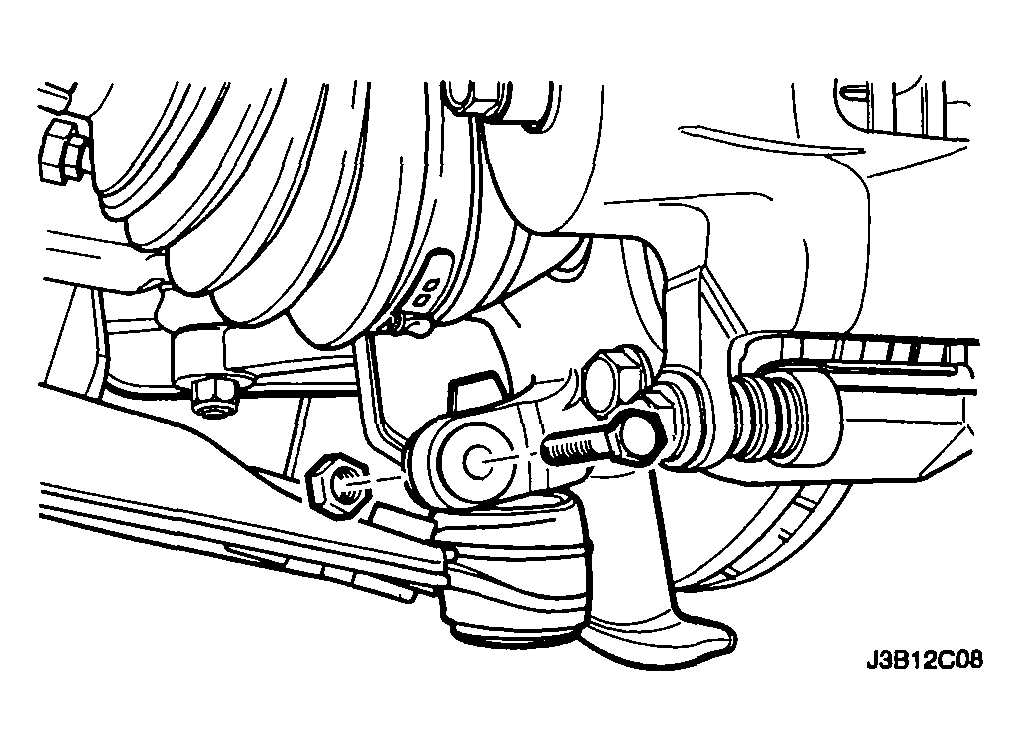

Fig 2: Tightening Tie Rod Nut
Courtesy of SUZUKI OF AMERICA CORP.
Install the lower ball joint pinch bolt and nut.
Tighten

Tighten the lower ball joint pinch bolt and nut to 60 N.m (44 lb-ft).

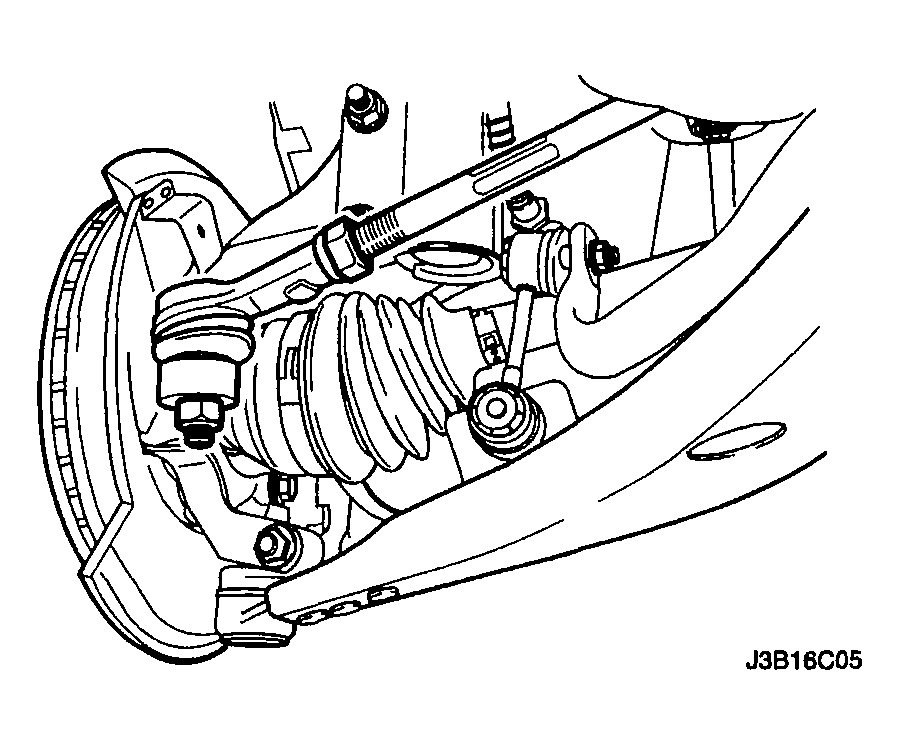

Fig 3: Installing Lower Ball Joint Pinch Bolt And Nut
Courtesy of SUZUKI OF AMERICA CORP.
Loosely install a new axle shaft caulking nut. Always use a new nut.

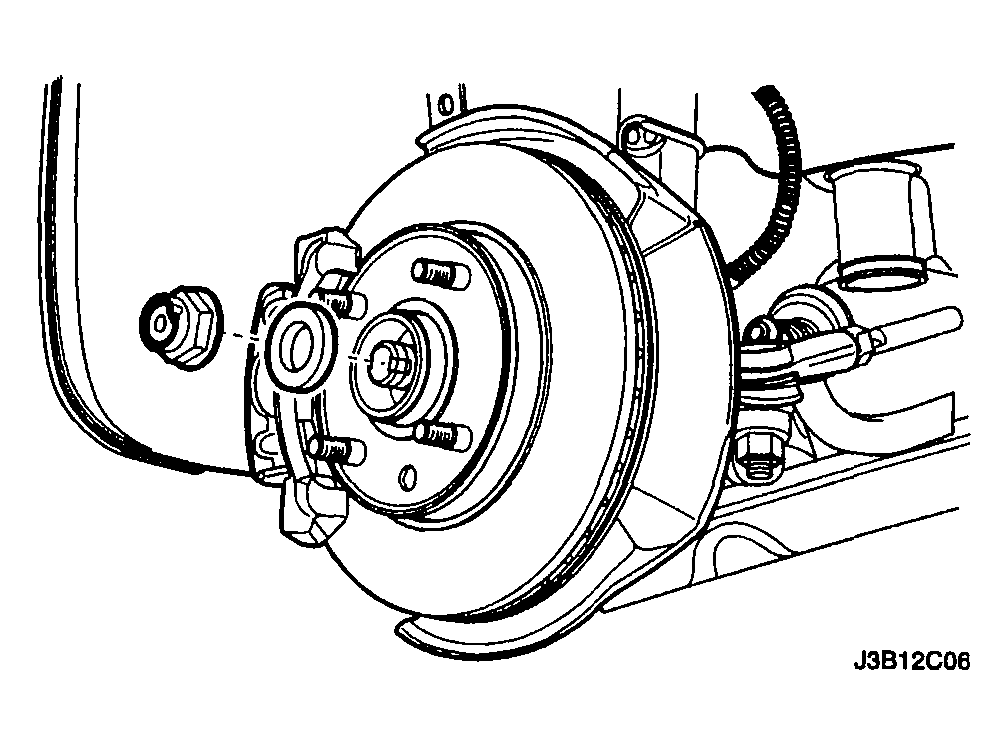

Fig 4: Installing New Axle Shaft Caulking Nut
Courtesy of SUZUKI OF AMERICA CORP.
Install the wheels. Loosely install the nuts. Refer to "WHEEL REMOVAL AND INSTALLATION :".
Lower the vehicle to the floor.
Tighten

Tighten the wheel nuts to 100 N.m (74 lb-ft).
Tighten the axle shaft caulking nut to 300 N.m (221 lb-ft).
Peen the caulking nut with a punch and a hammer until the nut is locked into place on the axle shaft hub.
Refill the transaxle fluid to the proper level. Refer to "TRANSAXLE FLUID LEVEL CHECKING PROCEDURE :" or "CHECKING FLUID LEVEL :".
