Front Drive Axle Location

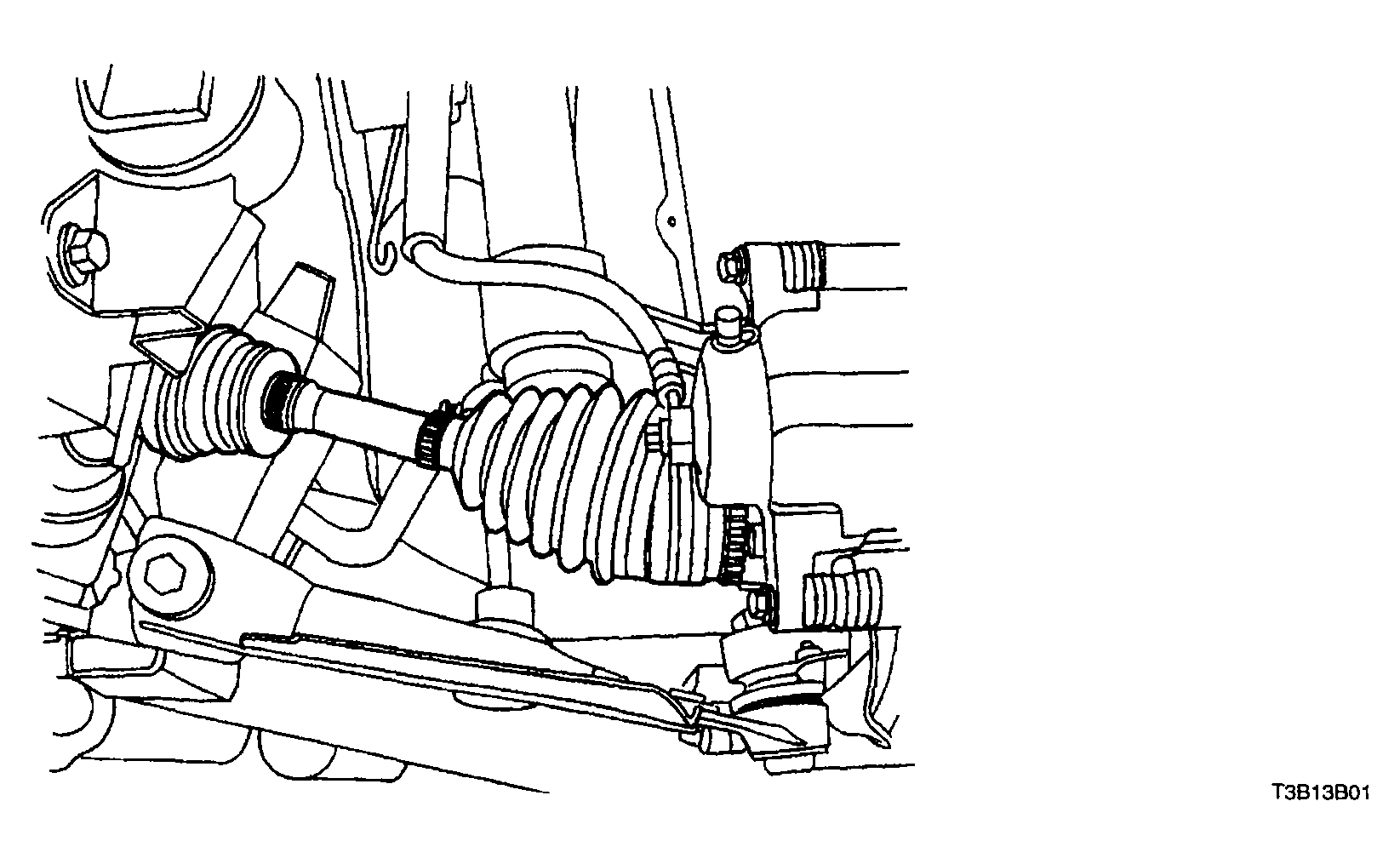

Fig 1: Identifying Front Drive Axle
G04103206Courtesy of SUZUKI OF AMERICA CORP.

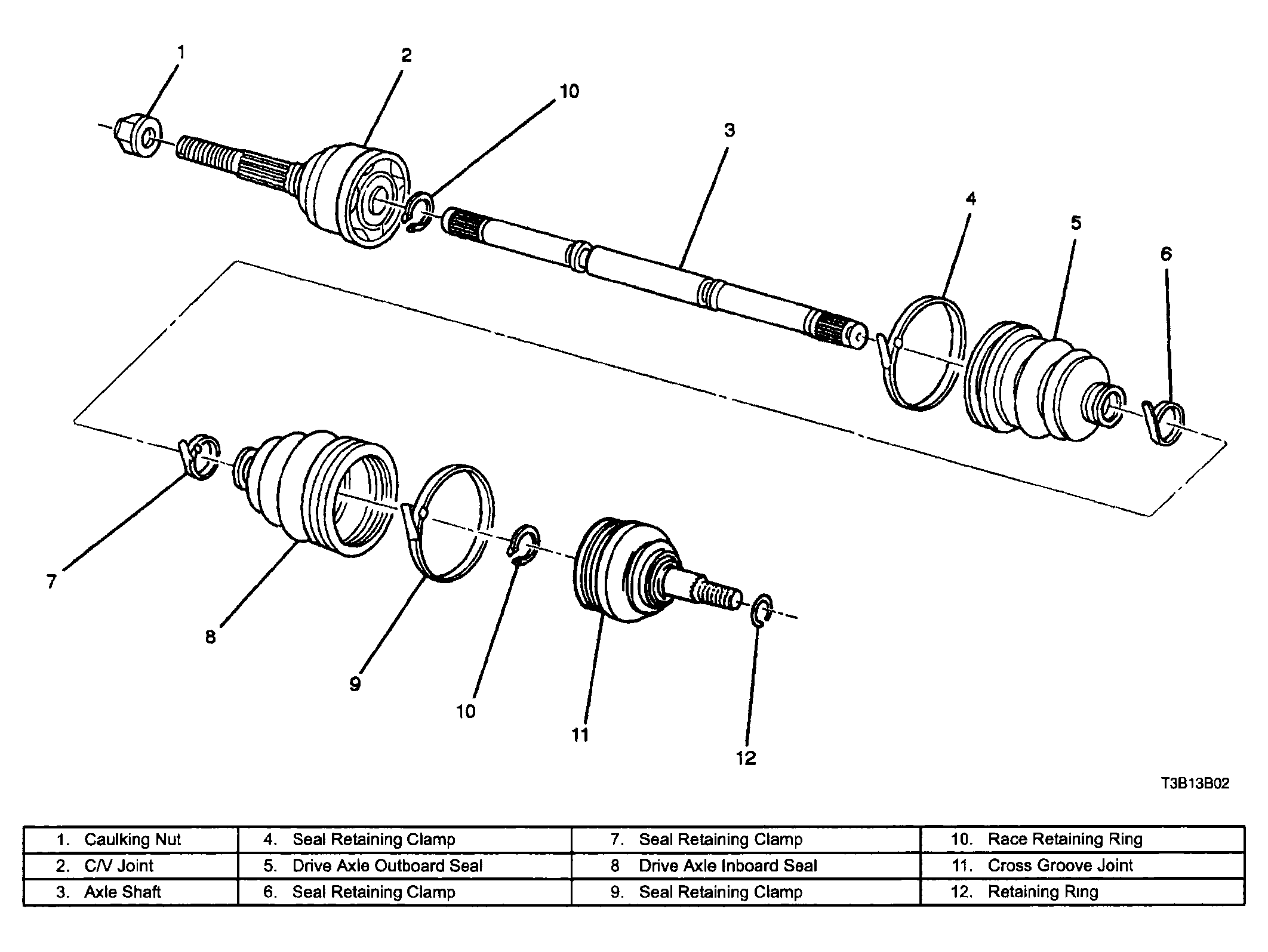

Fig 2: Identifying Front Drive Axle Components (1 Of 2)
G04103207Courtesy of SUZUKI OF AMERICA CORP.

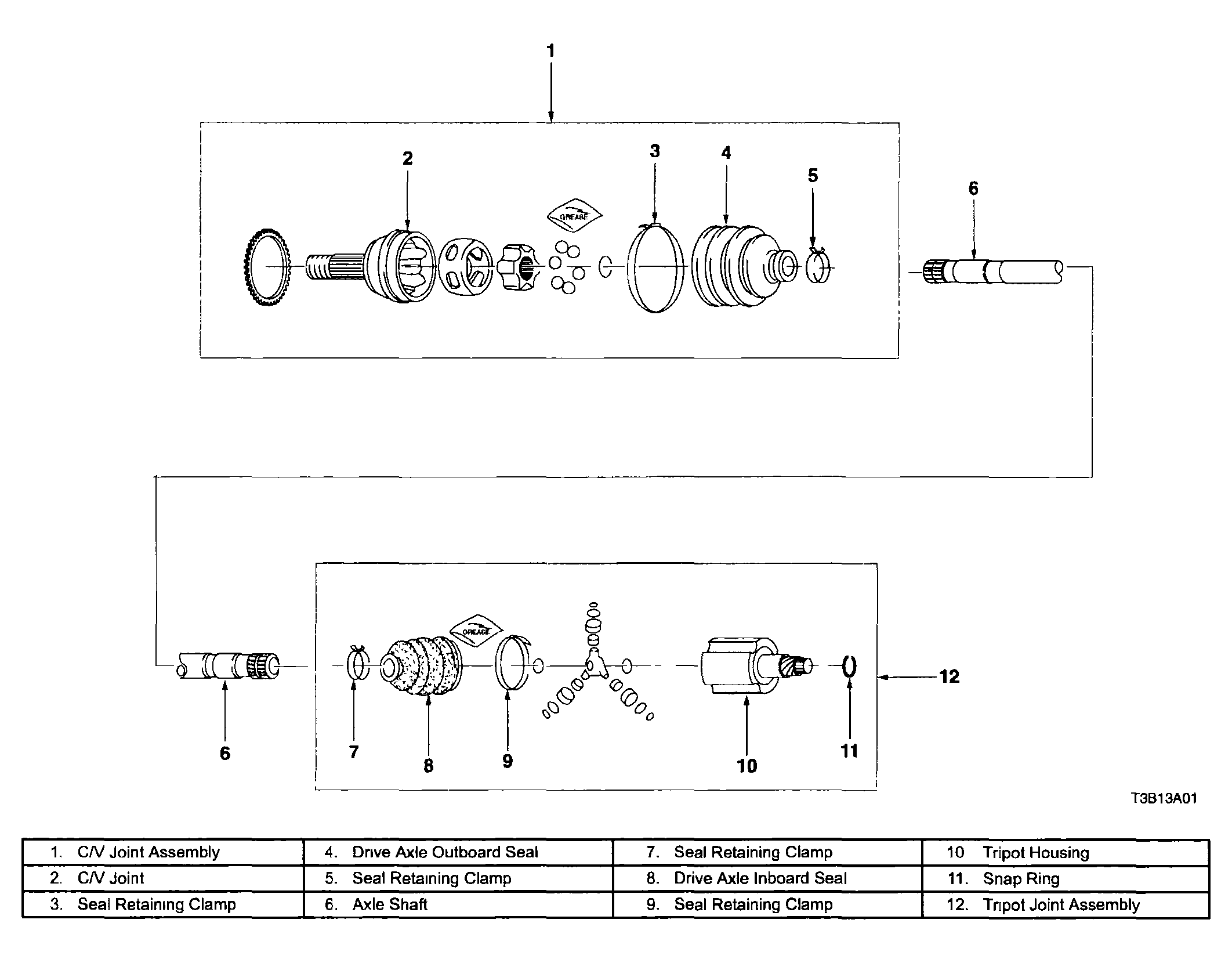

Fig 3: Identifying Front Drive Axle Components (2 Of 2)
G04103208Courtesy of SUZUKI OF AMERICA CORP.
