Front Wheel Speed Sensor Removal and Installation: Installation

  1. Install the front wheel speed sensor to the steering knuckle. Secure it with the bolt.

    Tighten

    Tighten the front wheel speed sensor bolt to 8 N.m (71 lb-in).

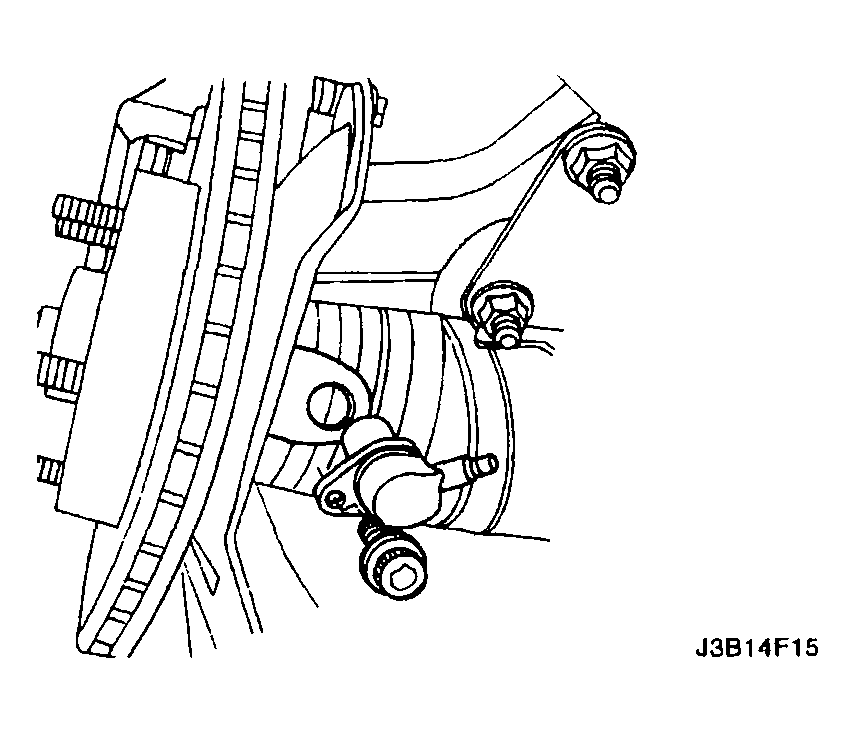

    Fig 1: Installing Front Wheel Speed Sensor To Steering Knuckle
    G04103410Courtesy of SUZUKI OF AMERICA CORP.
  2. Feed the sensor harness into the engine compartment, insert it into the grommet, and secure the grommet into the hole in the strut tower.
  3. Secure the harness into the grommet holders and the clamps under the fender.
  4. Install the wheel. Refer to "WHEEL REMOVAL AND INSTALLATION :".
  5. Lower the vehicle.
  6. Connect the front wheel speed sensor electrical connector.
  7. Connect the negative battery cable.

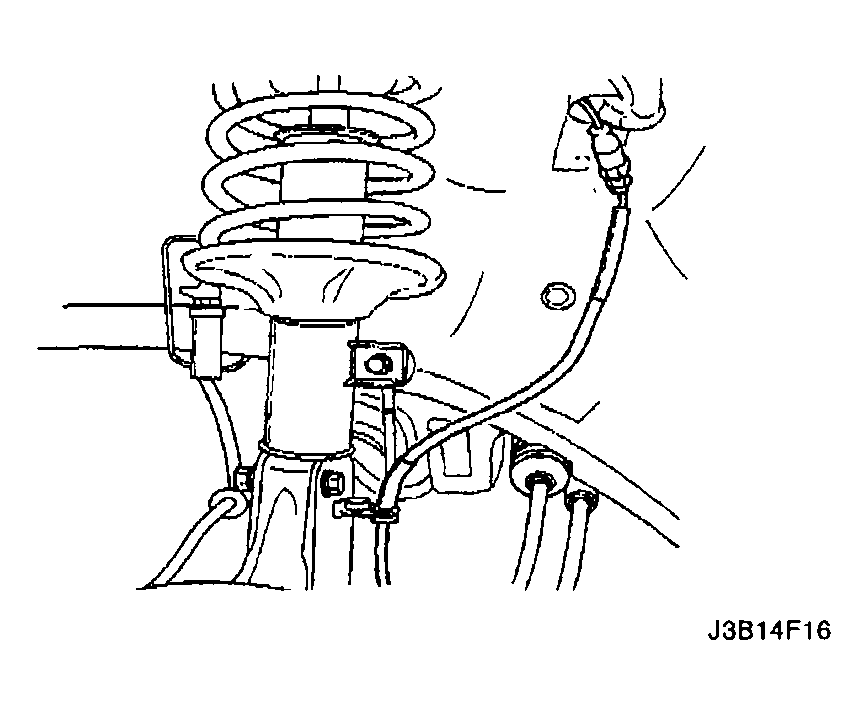

    Fig 2: Connecting Front Wheel Speed Sensor Electrical Connector
    G04103411Courtesy of SUZUKI OF AMERICA CORP.
