Ignition Lock Cylinder and Switch Removal and Installation: Installation
- Install the ignition switch with the ignition switch retaining screw.
Tighten
Tighten the ignition switch retaining screw to 2.5 N.m (22 lb-in).
- Connect the wiring to the ignition switch.
- Install the lock cylinder.

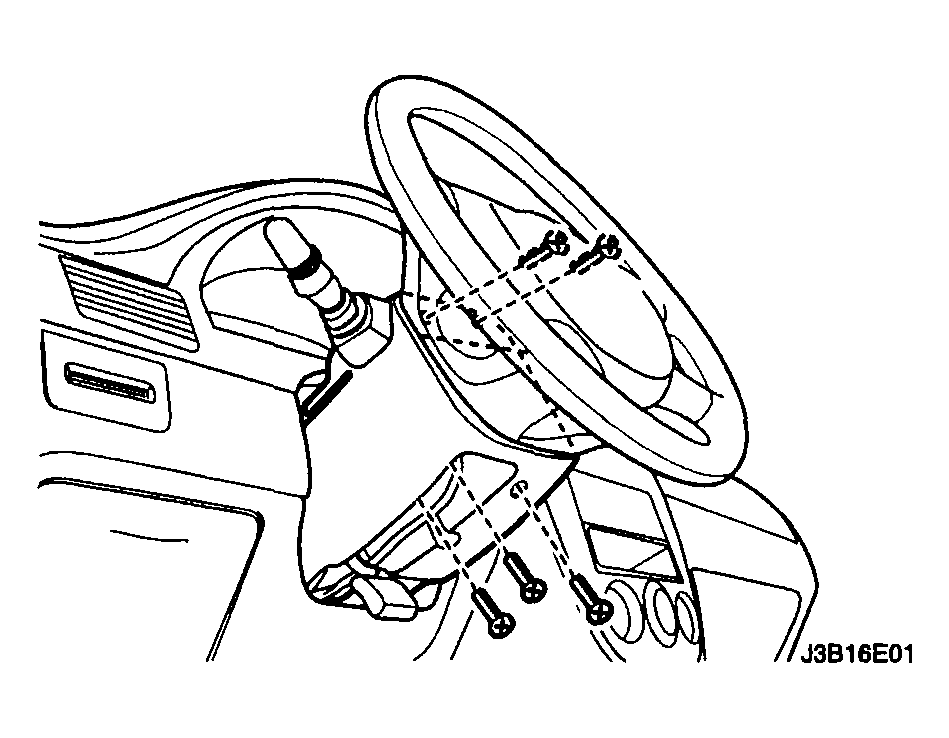

- Install the upper and the lower steering column cover panel with the screws.
Tighten
Tighten the upper and the lower steering column cover panel screws to 2.5 N.m (22 lb-in).
- Connect the negative battery cable.
