Deadner Repair

Remove the related parts.
- Seats, carpet.
- Trims, others.
Removal of the damaged deadner.
- Peel off the damaged deadner with a steel spatula, carefully.
Clean and dry.
- Before applying the deadner, thoroughly clean and dry the areas to be applied.
Prelocate the new deadner on the panels to be applied.
NOTE: Avoid the parts mounting holes and service holes.

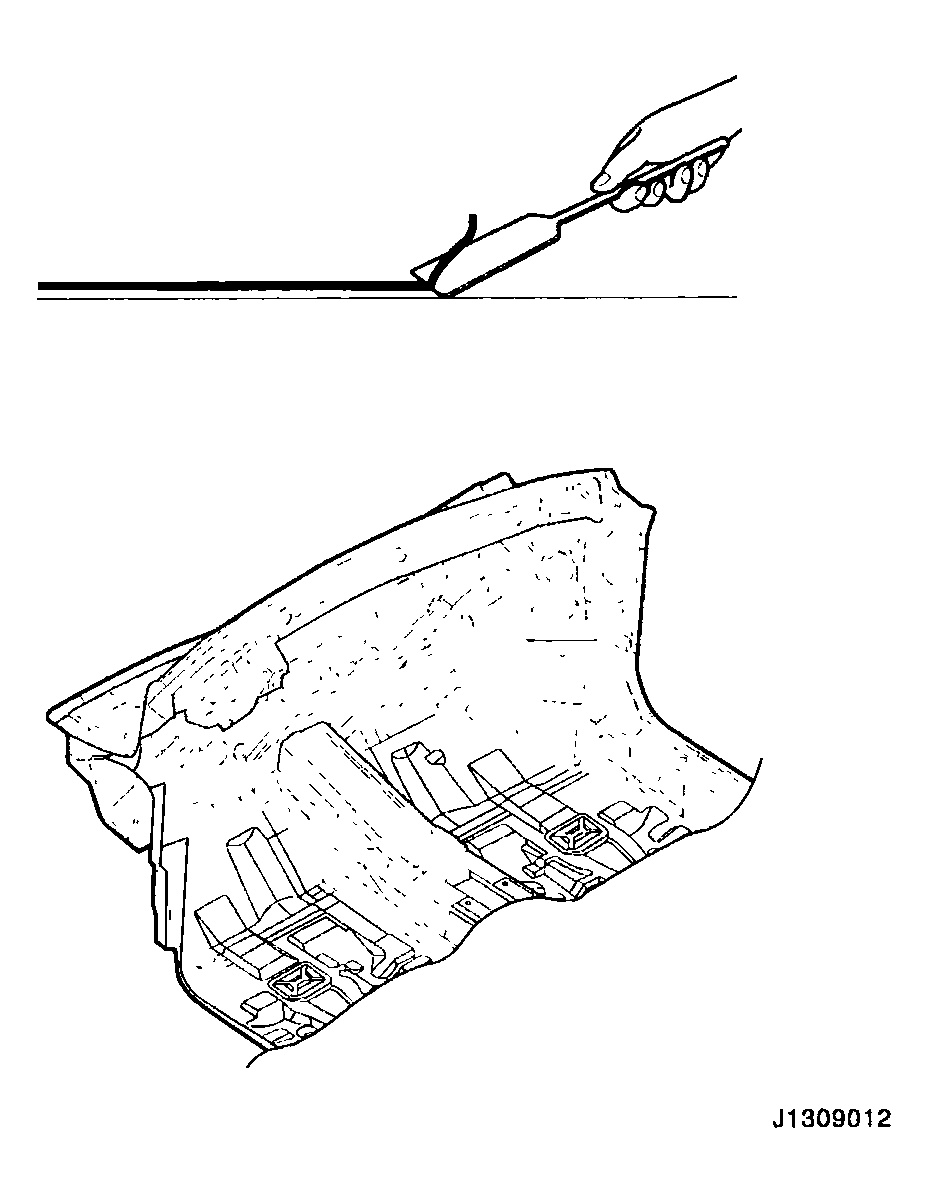

Fig 1: Peeling Off Damaged Deadner
Courtesy of SUZUKI OF AMERICA CORP.
Adhension of deadner.
- Heat the surface of deadner with a torch or heating gun unit it adheres itself.
- Push and adhere to the panel with a rubber spatula.
  NOTE: In order to take full advantage of the deadner, its face must adhere and contact the panels perfectly.

  CAUTION: Be careful not to burn the composite parts when heating.

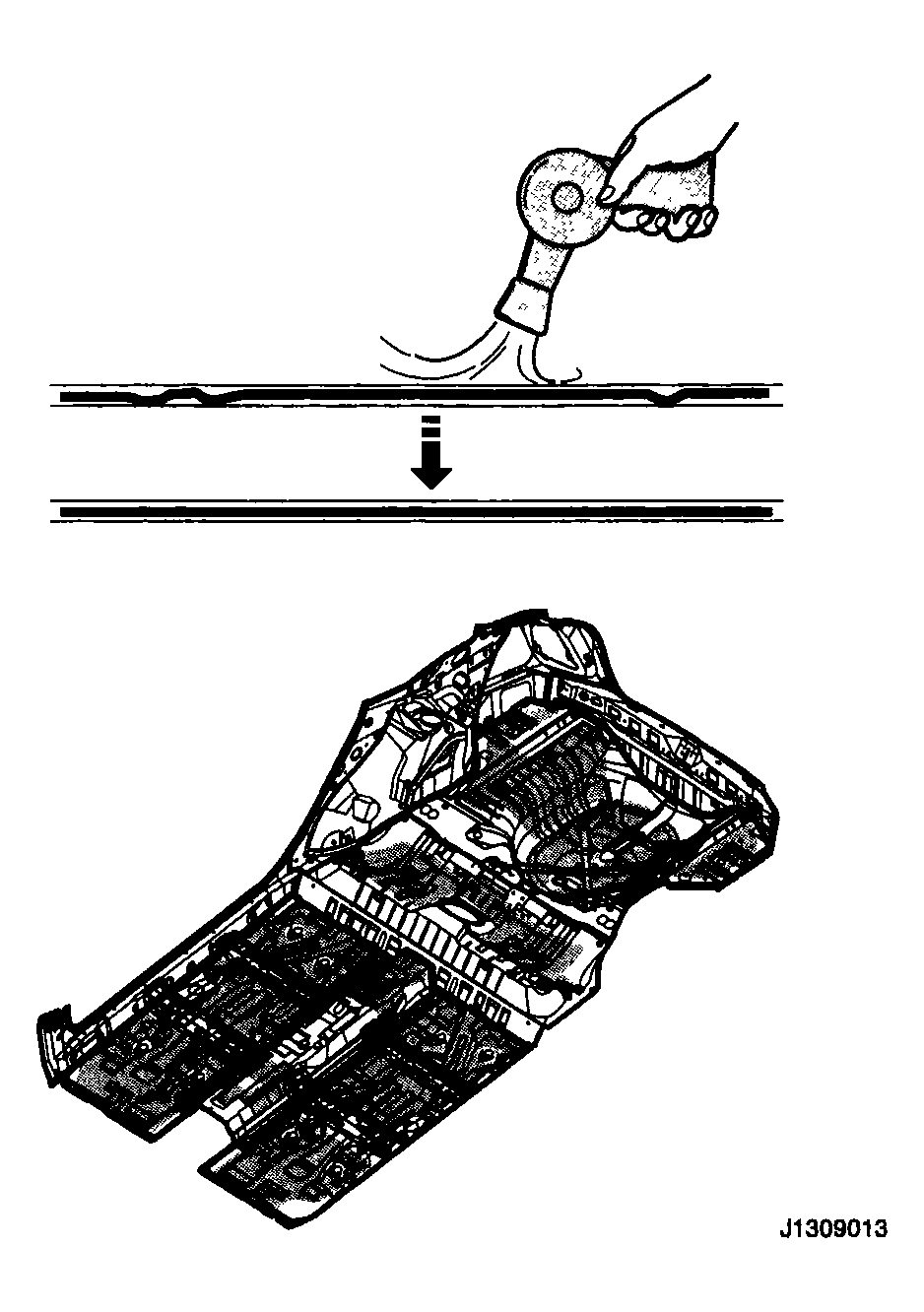

  Fig 2: Heating Surface Of Deadner With Torch Or Heating Gun
  Courtesy of SUZUKI OF AMERICA CORP.
Install the related parts.
- Install in the reverse order in which they were removed.

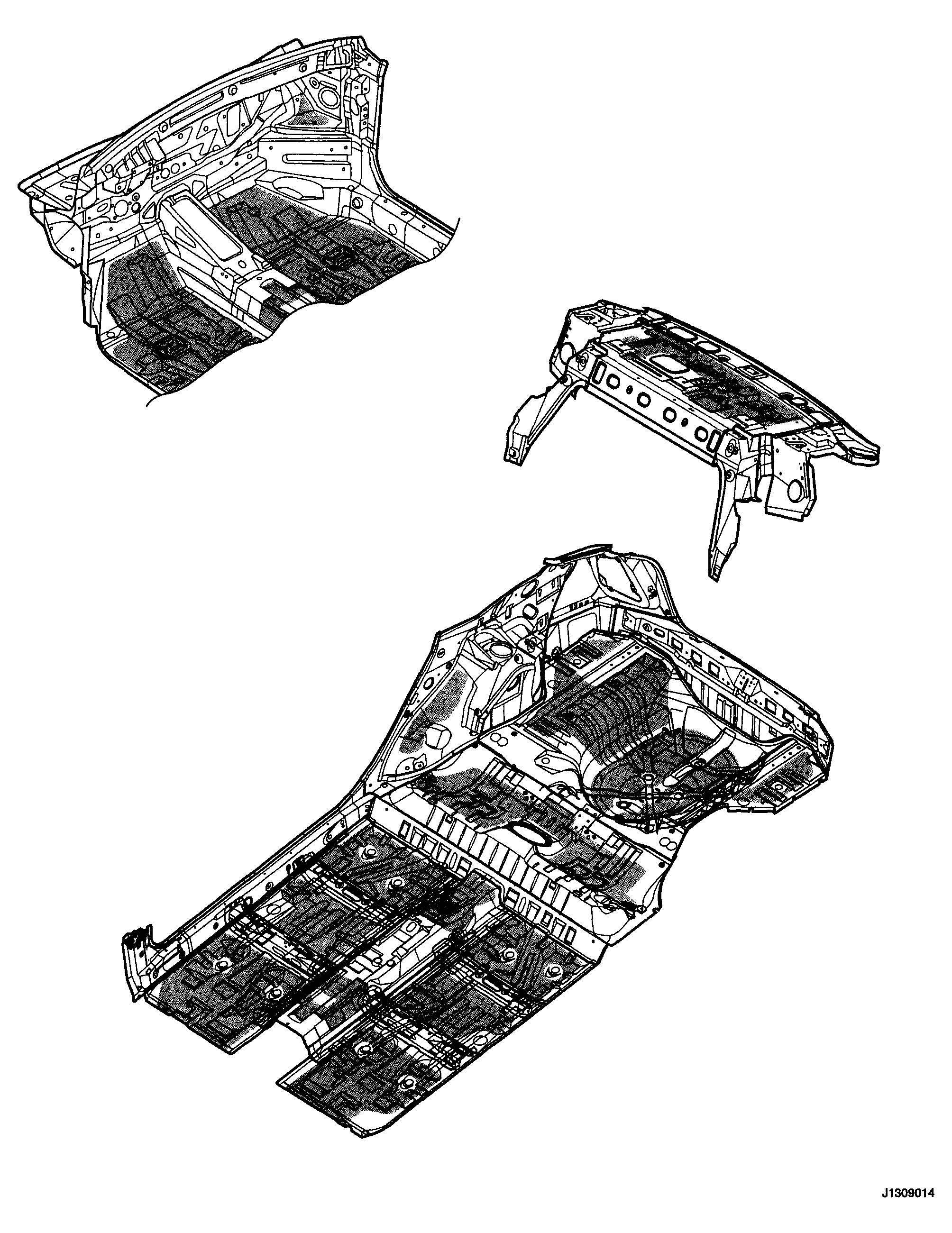

  Fig 3: Installing Deadner
  Courtesy of SUZUKI OF AMERICA CORP.
