Component Location: Undercoating

NOTE:

Coating thickness: Min 0.5 mm (0.020 in).
Hatching indicated anti-rust agent coating areas.
Do not apply the part mounting areas and holes.

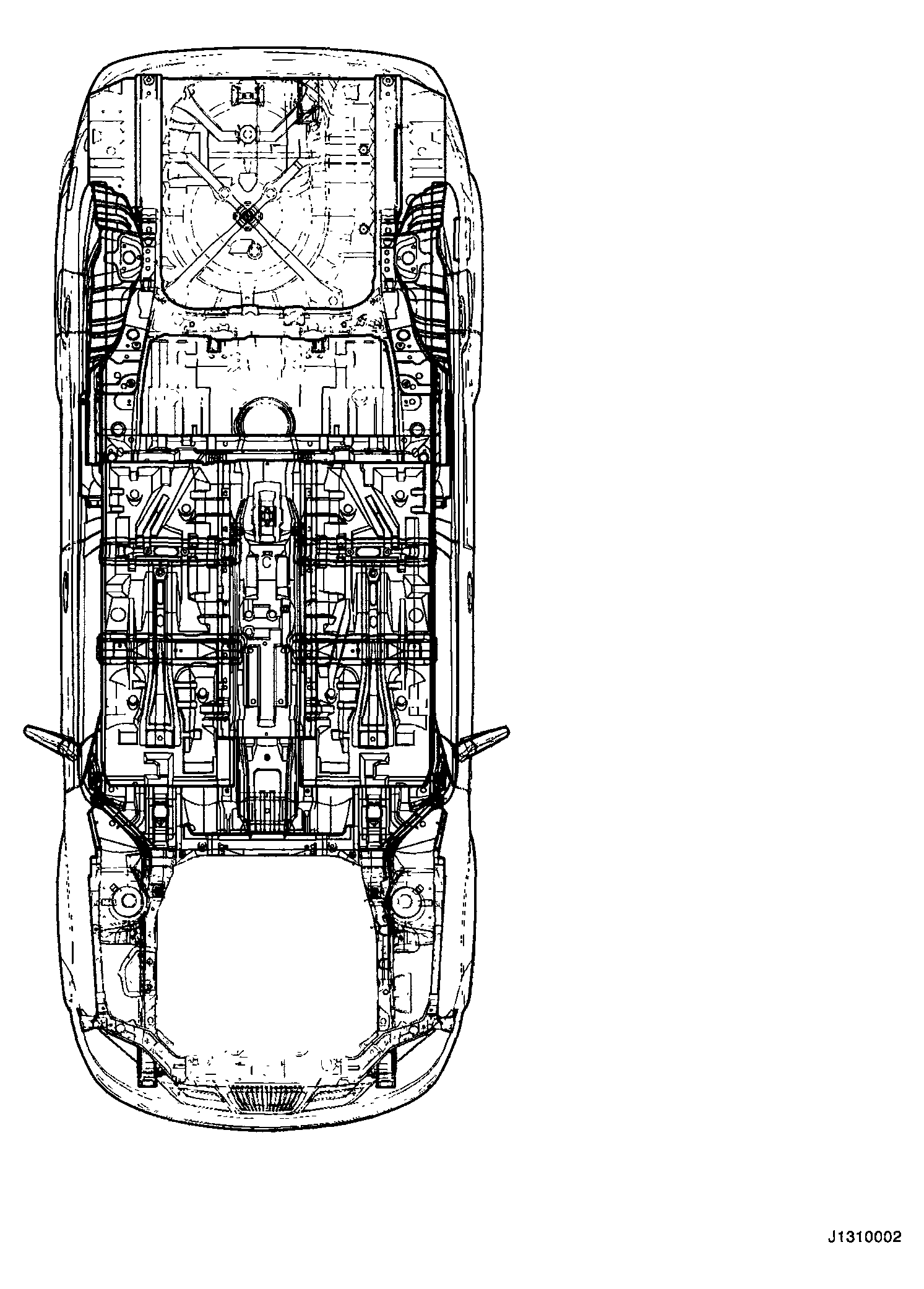

Fig 1: Identifying Undercoating
Courtesy of SUZUKI OF AMERICA CORP.
