Remote Keyless Entry and Anti-Theft System Circuit Wiring Diagram

For Notchback Model

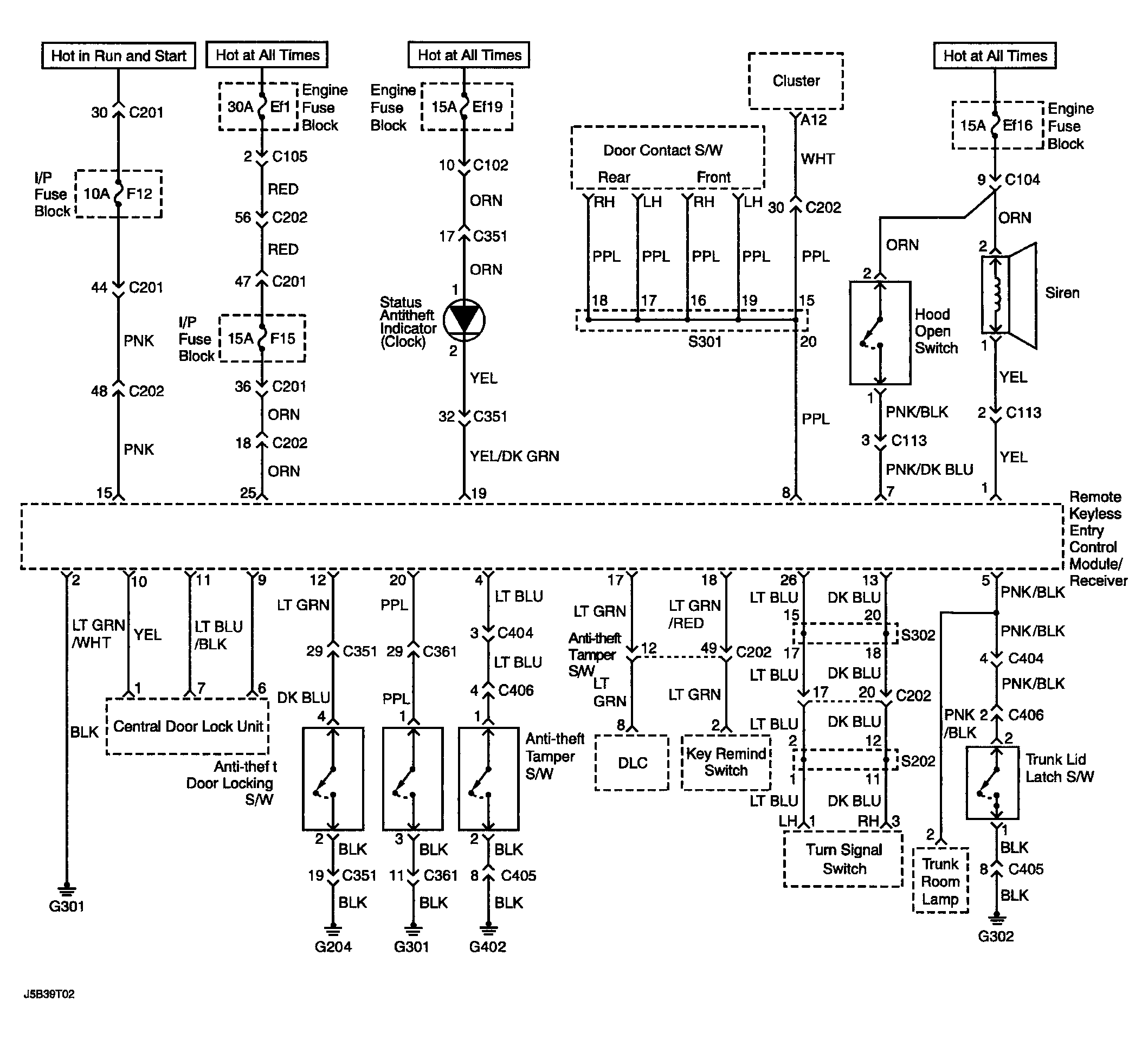

Fig 1: Remote Keyless Entry And Anti-Theft System Circuit Wiring Diagram - Notchback Model

Courtesy of SUZUKI OF AMERICA CORP.

For Hatchback Model

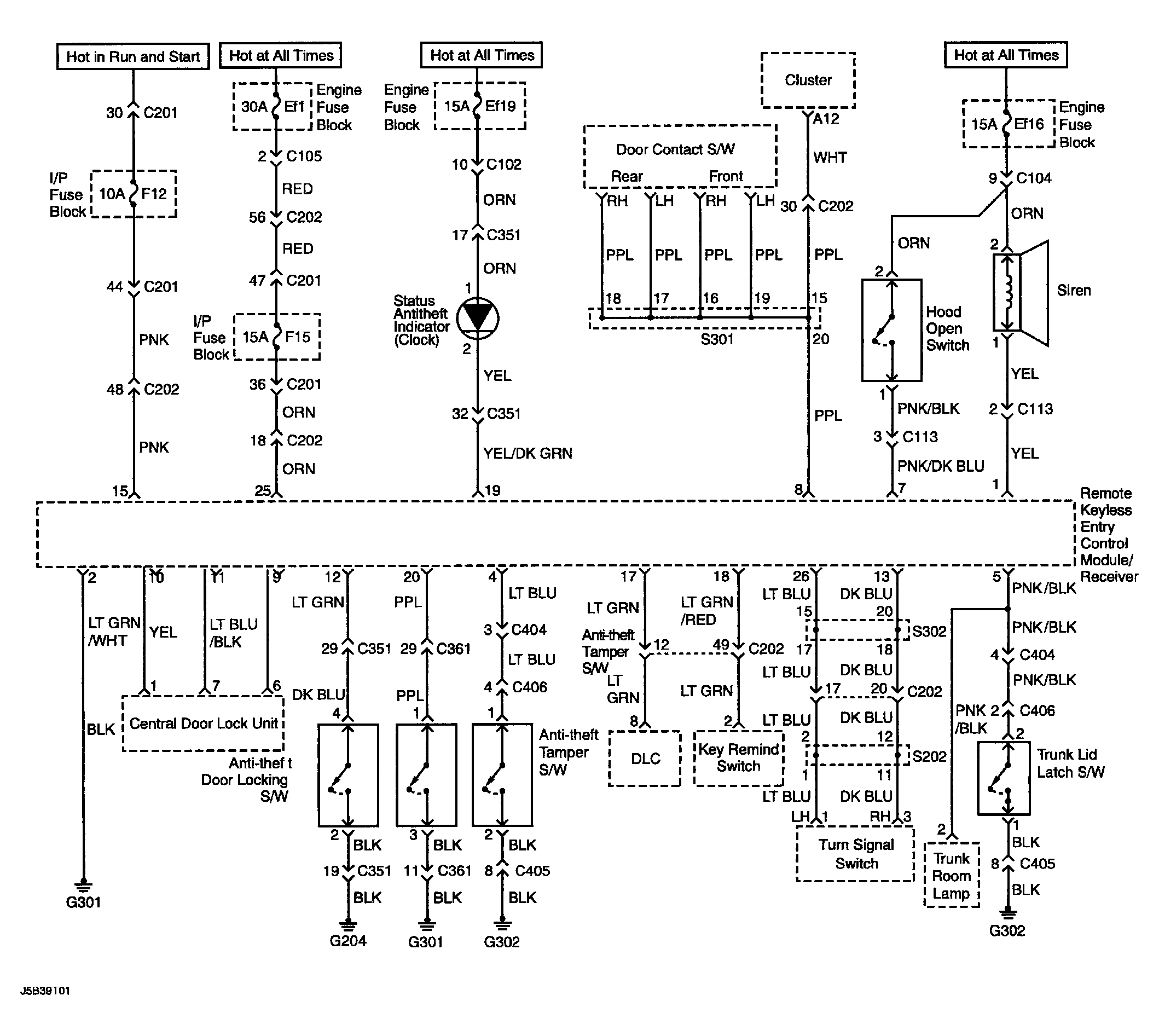

Fig 2: Remote Keyless Entry And Anti-Theft System Circuit Wiring Diagram - Hatchback Model

Courtesy of SUZUKI OF AMERICA CORP.

For Station Wagon Model

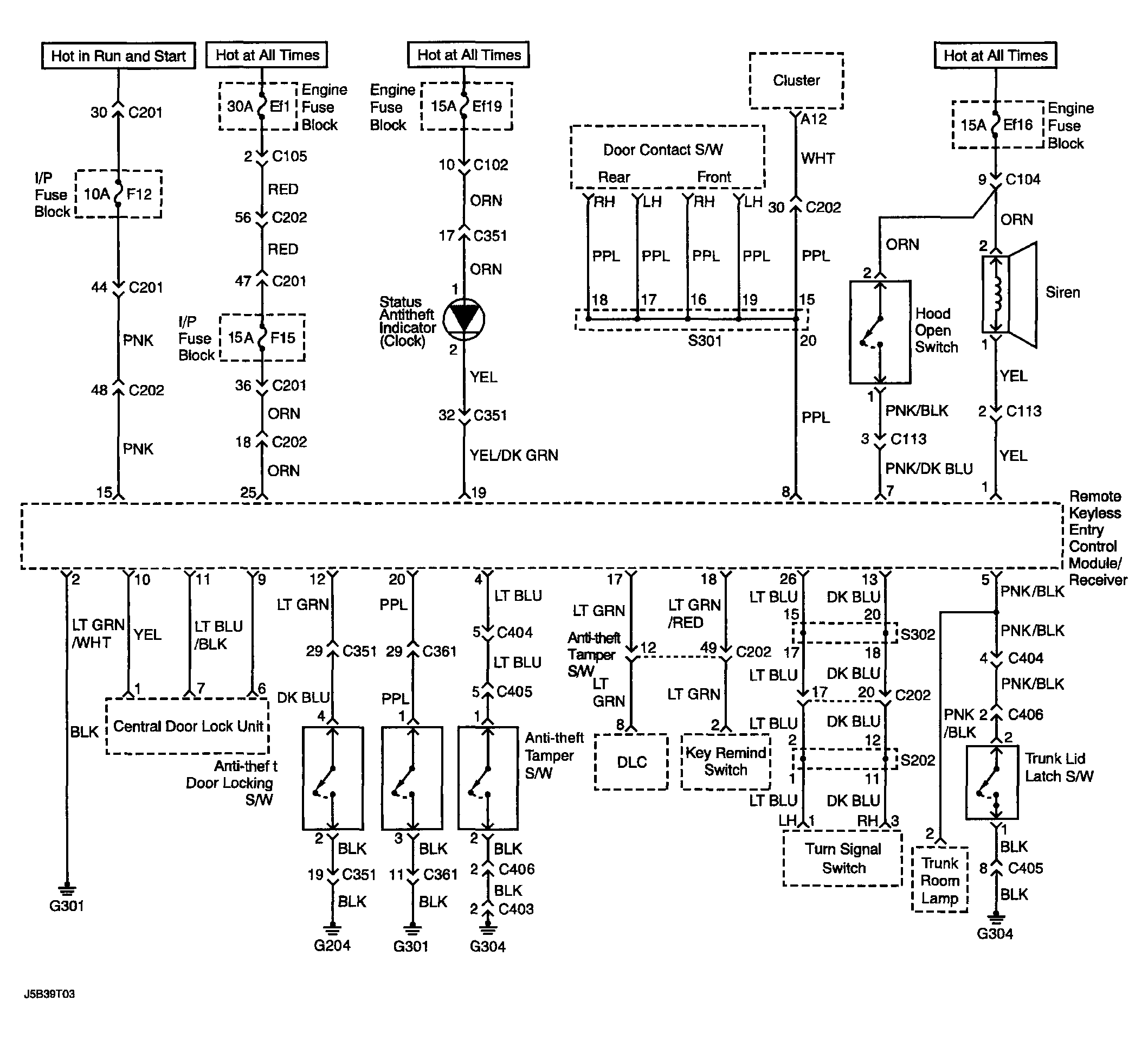

Fig 3: Remote Keyless Entry And Anti-Theft System Circuit Wiring Diagram - Station Wagon Model

Courtesy of SUZUKI OF AMERICA CORP.
