Power Door Locks System Circuit Wiring Diagram

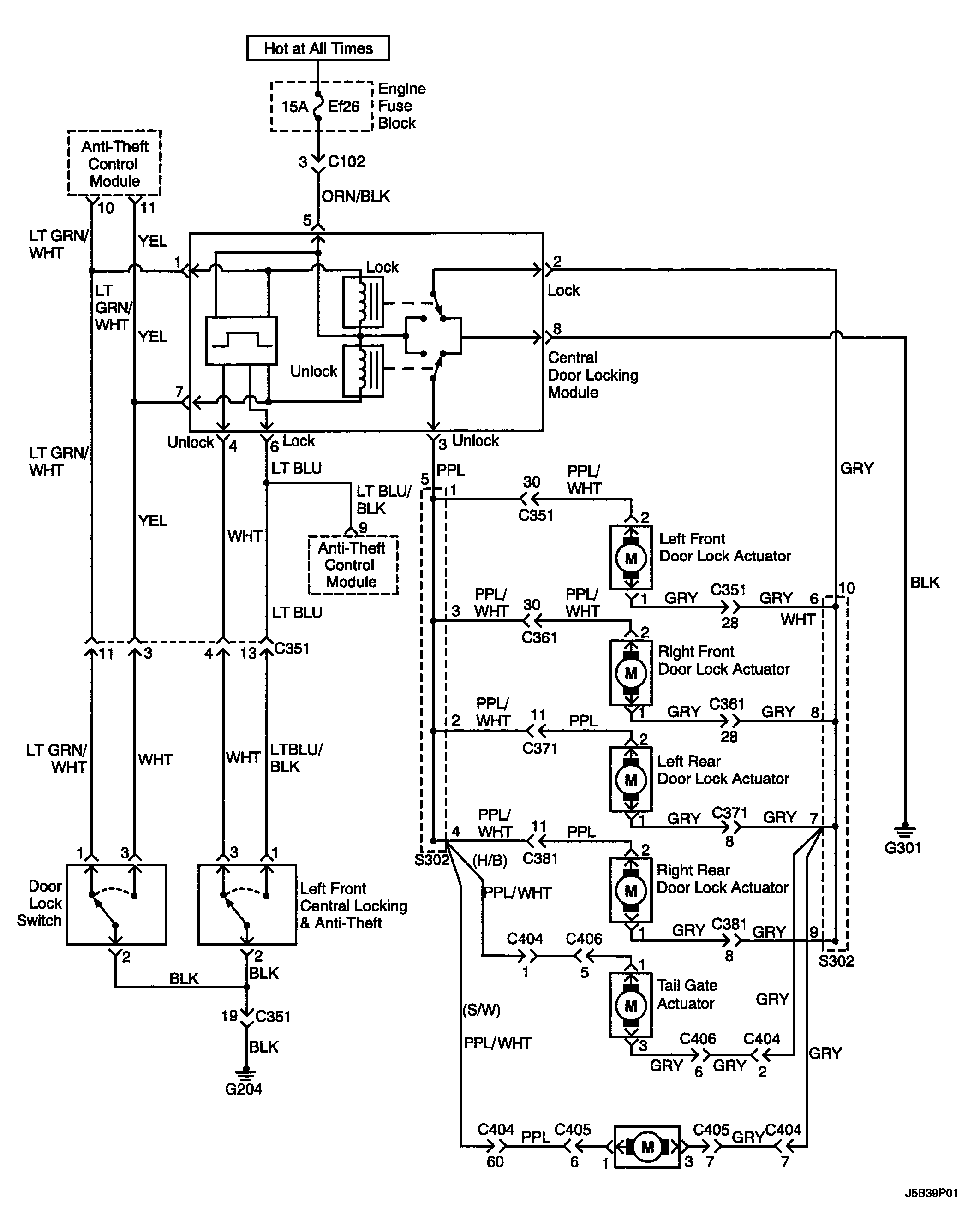

Fig 1: Power Door Locks System Circuit Wiring Diagram
G04104520Courtesy of SUZUKI OF AMERICA CORP.
