Front Door Lock Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Remove the seal trim. Refer to "DOOR SEAL TRIM REMOVAL AND INSTALLATION :".
  3. Remove the screws and the front door lock.
  4. Disconnect the lock rods.
  5. Disconnect the electrical connector.

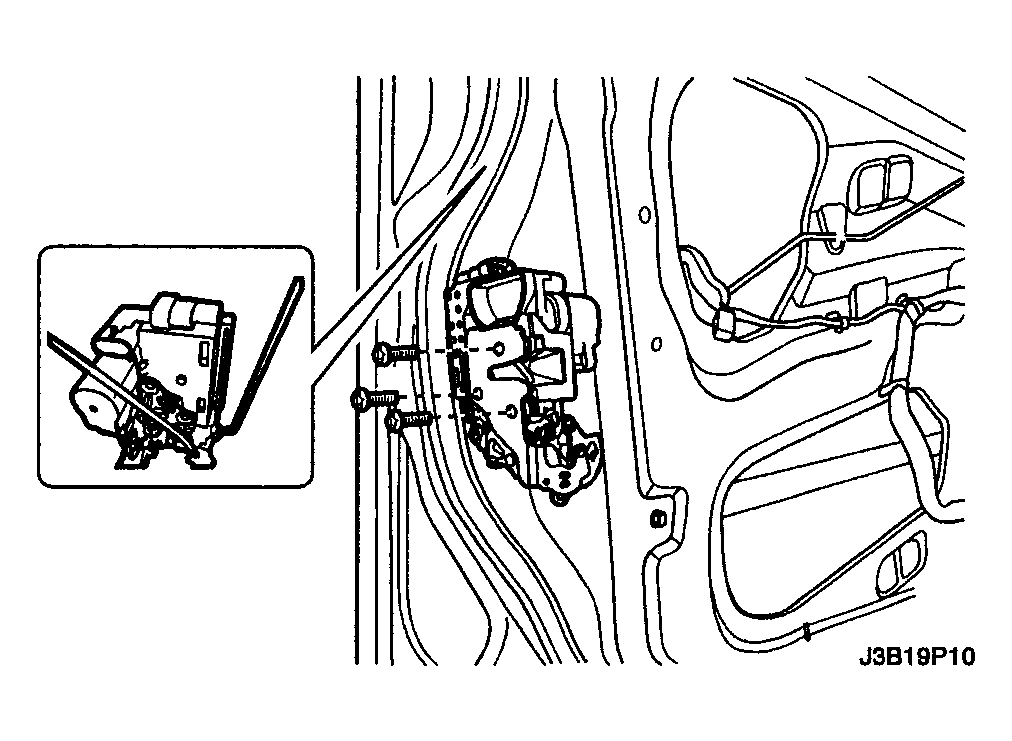

    Fig 1: Removing Screws And Front Door Lock
    G04104525Courtesy of SUZUKI OF AMERICA CORP.
