Vehicle Lifting Points

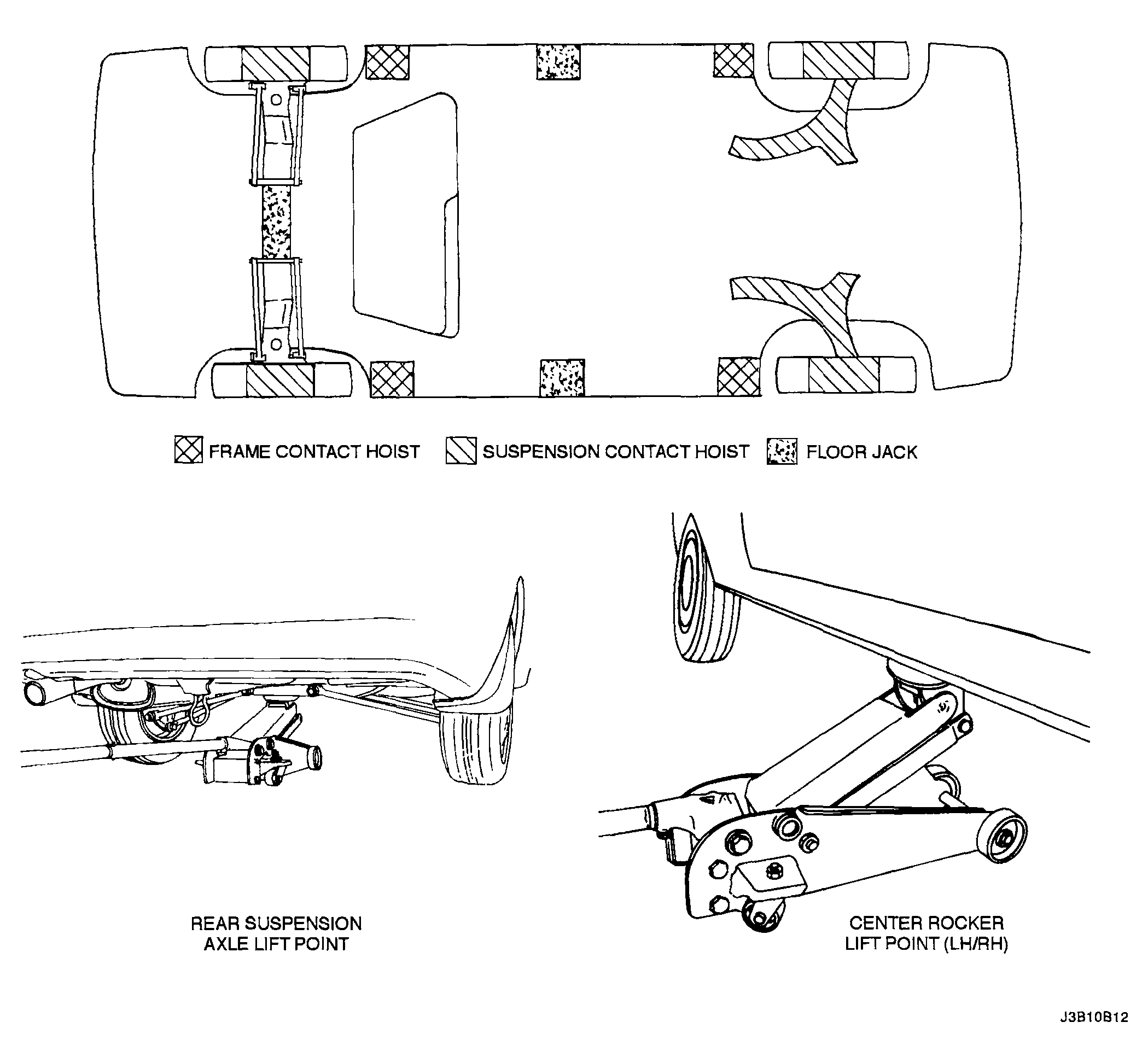

Fig 1: Identifying Vehicle Lifting Points (1 Of 2)
G04102458Courtesy of SUZUKI OF AMERICA CORP.

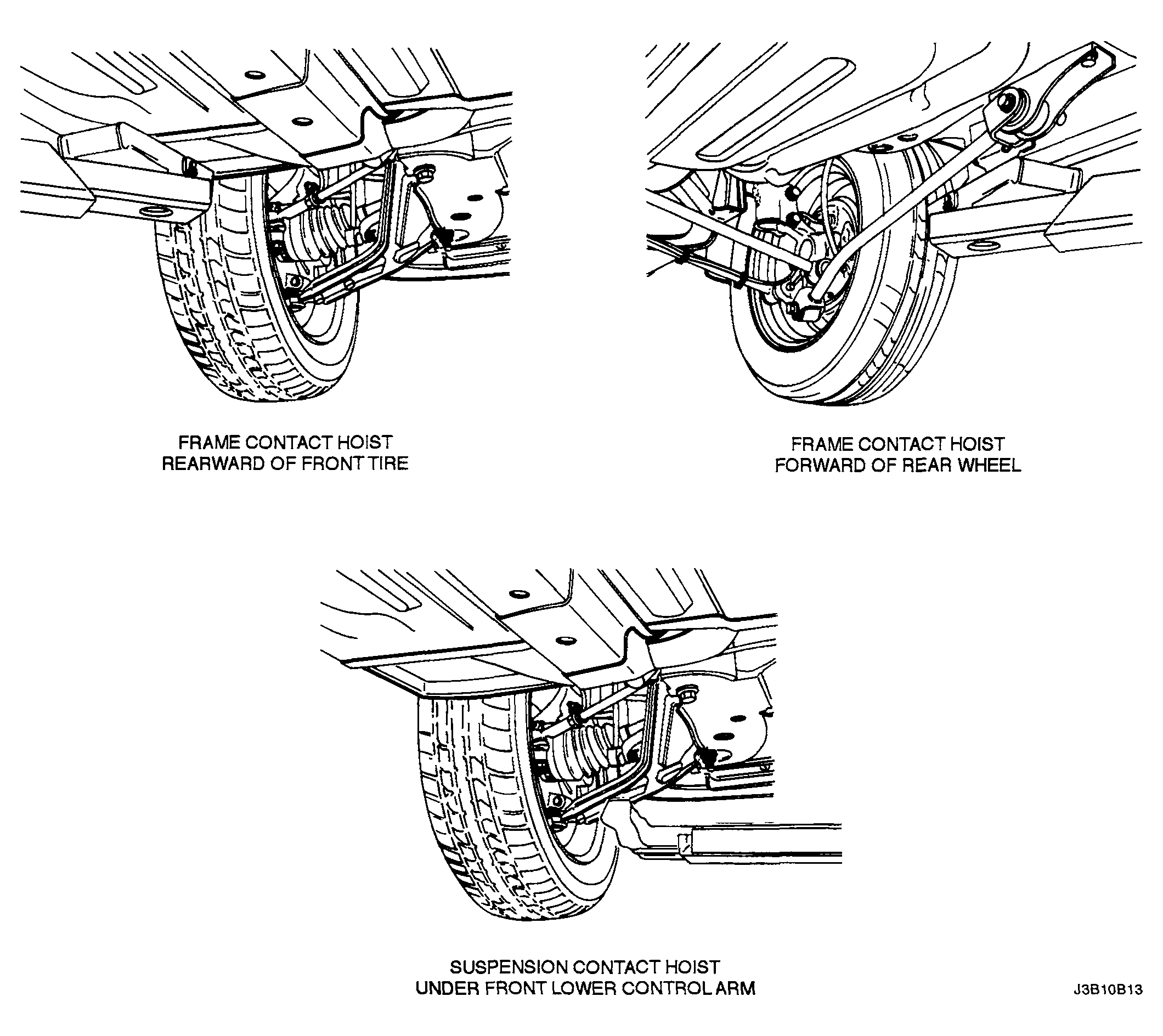

Fig 2: Identifying Vehicle Lifting Points (2 Of 2)
G04102459Courtesy of SUZUKI OF AMERICA CORP.
