Cooling System Circulation

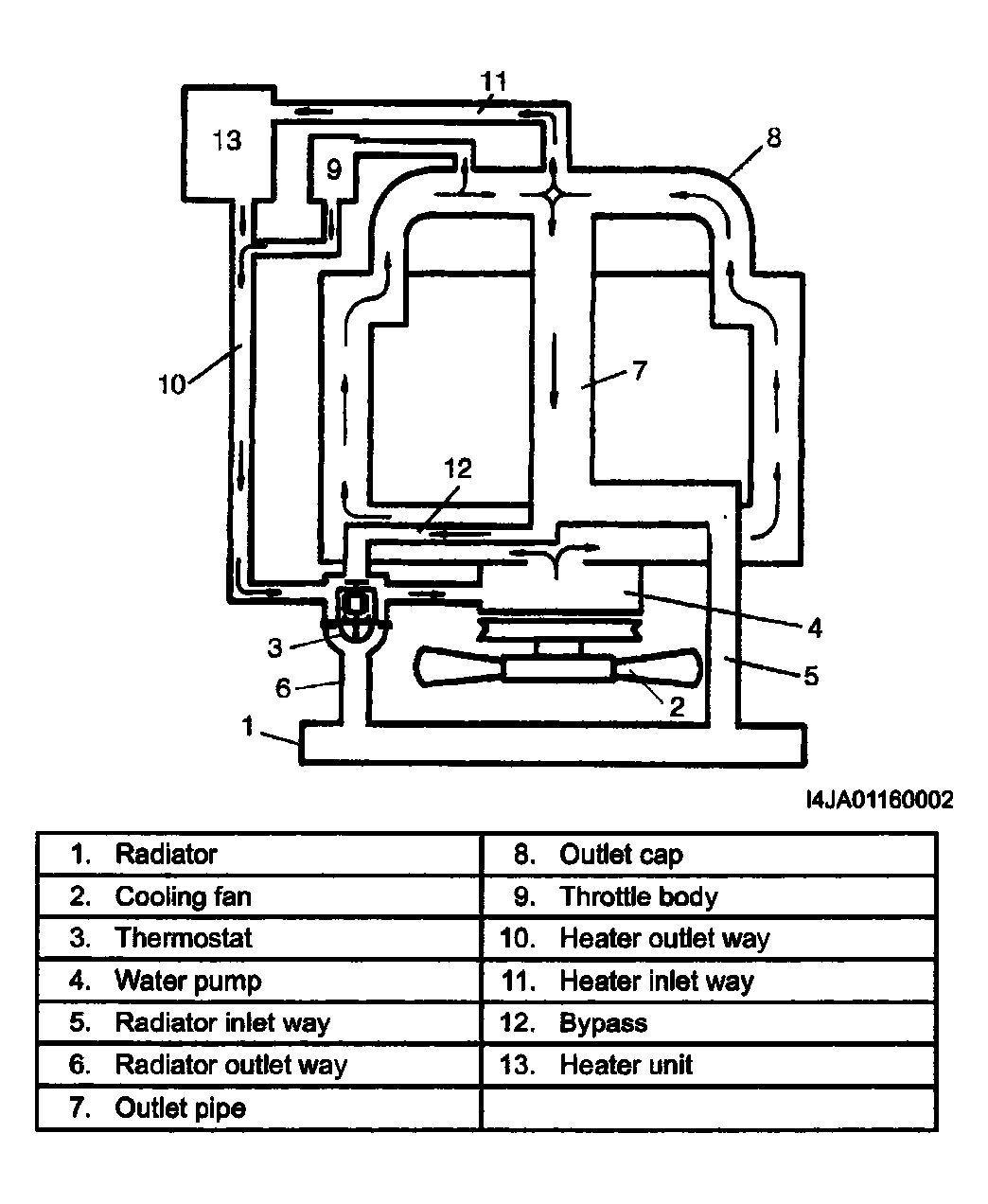

- While the engine is warmed up (thermostat closed), coolant circulates as follows.

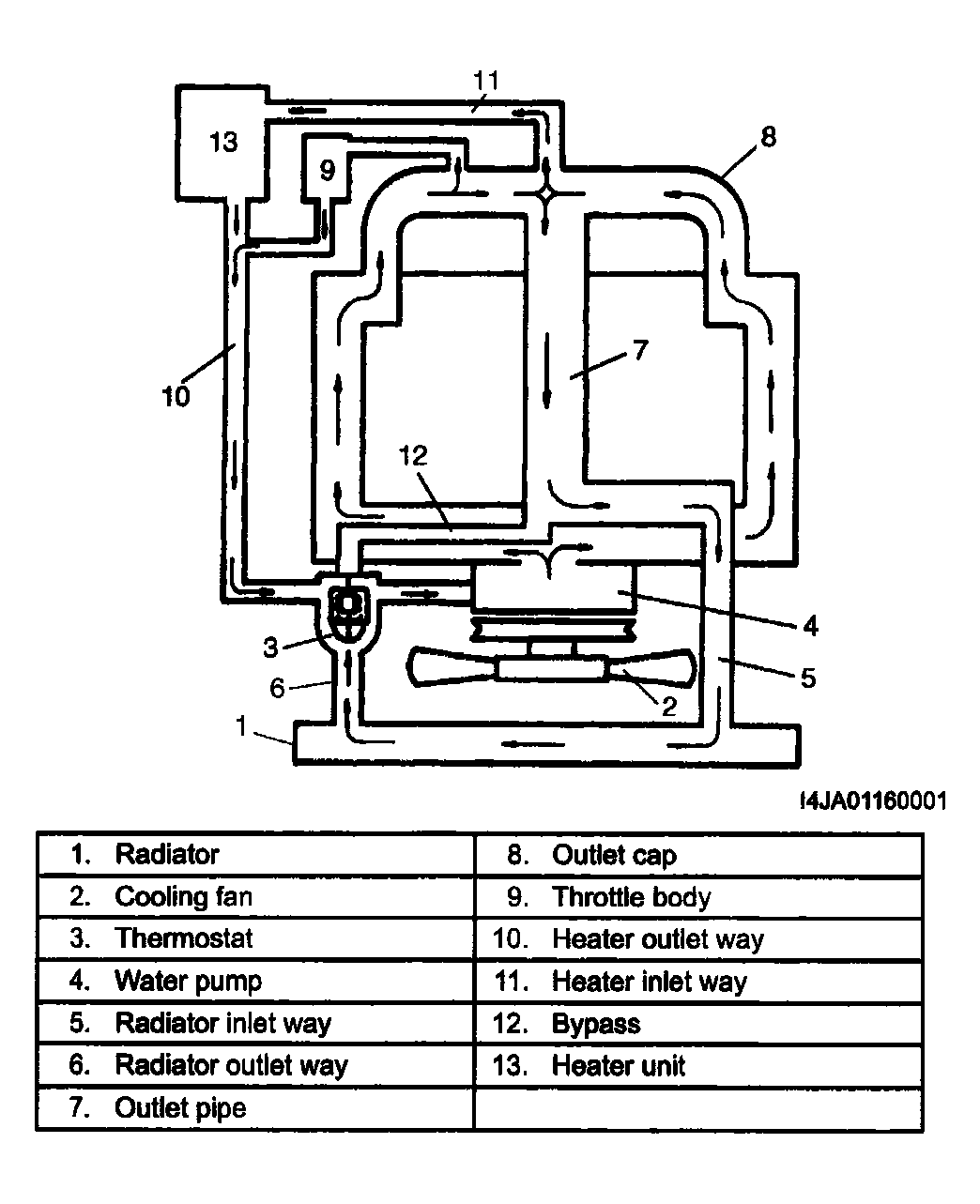

- When coolant is warmed up to normal temperature and the thermostat opens, coolant passes through the radiator core to be cooled as well as the above flow circuit.
