Power Window Sub Switch Inspection

Inspect switch continuity between terminal.

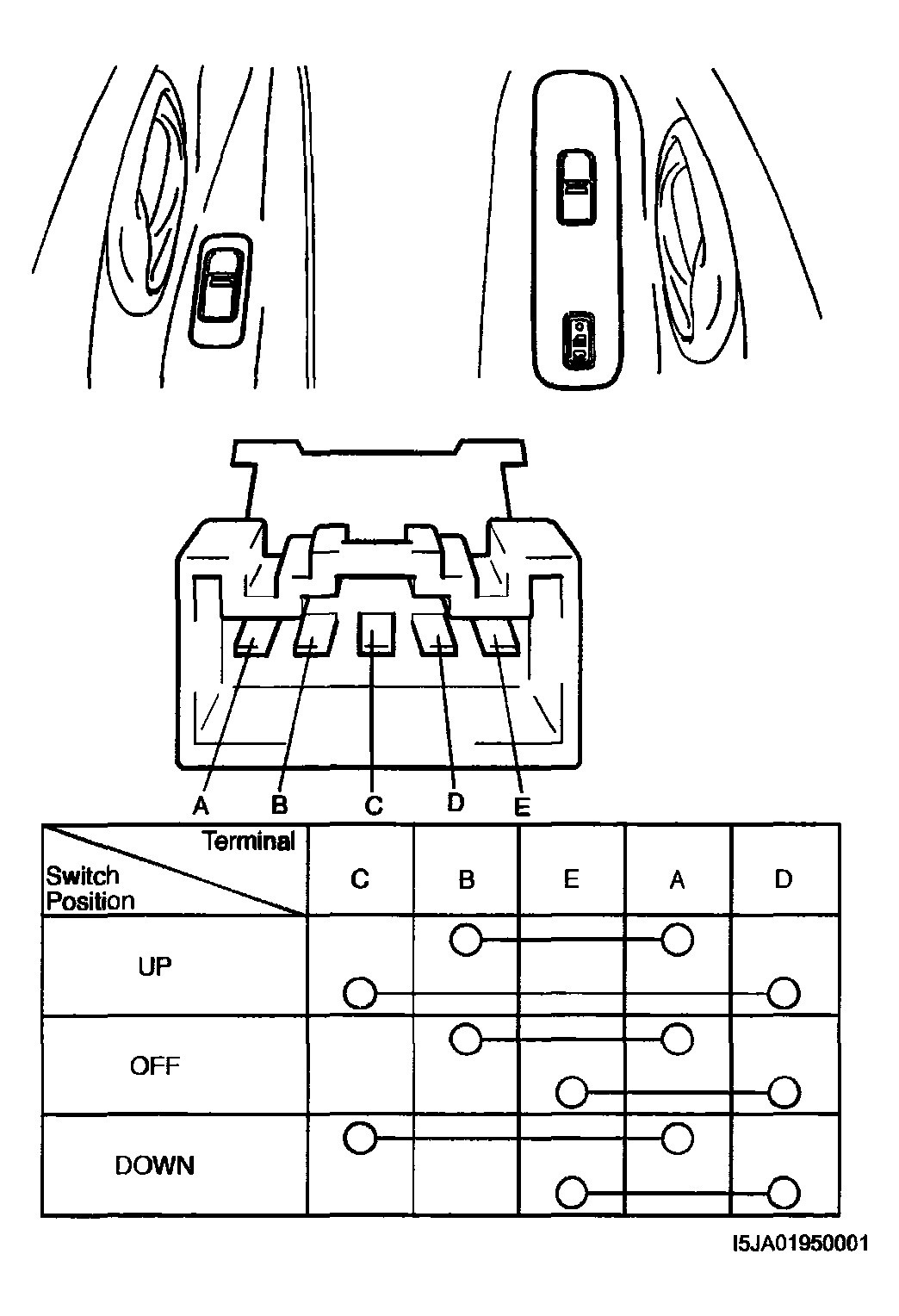

Fig 1: Inspecting Switch Continuity Between Terminal
G04101432Courtesy of SUZUKI OF AMERICA CORP.
