A/C Condenser Fan Motor Relay Control System Inspection

A/C Condenser Fan Motor Relay Control System Check

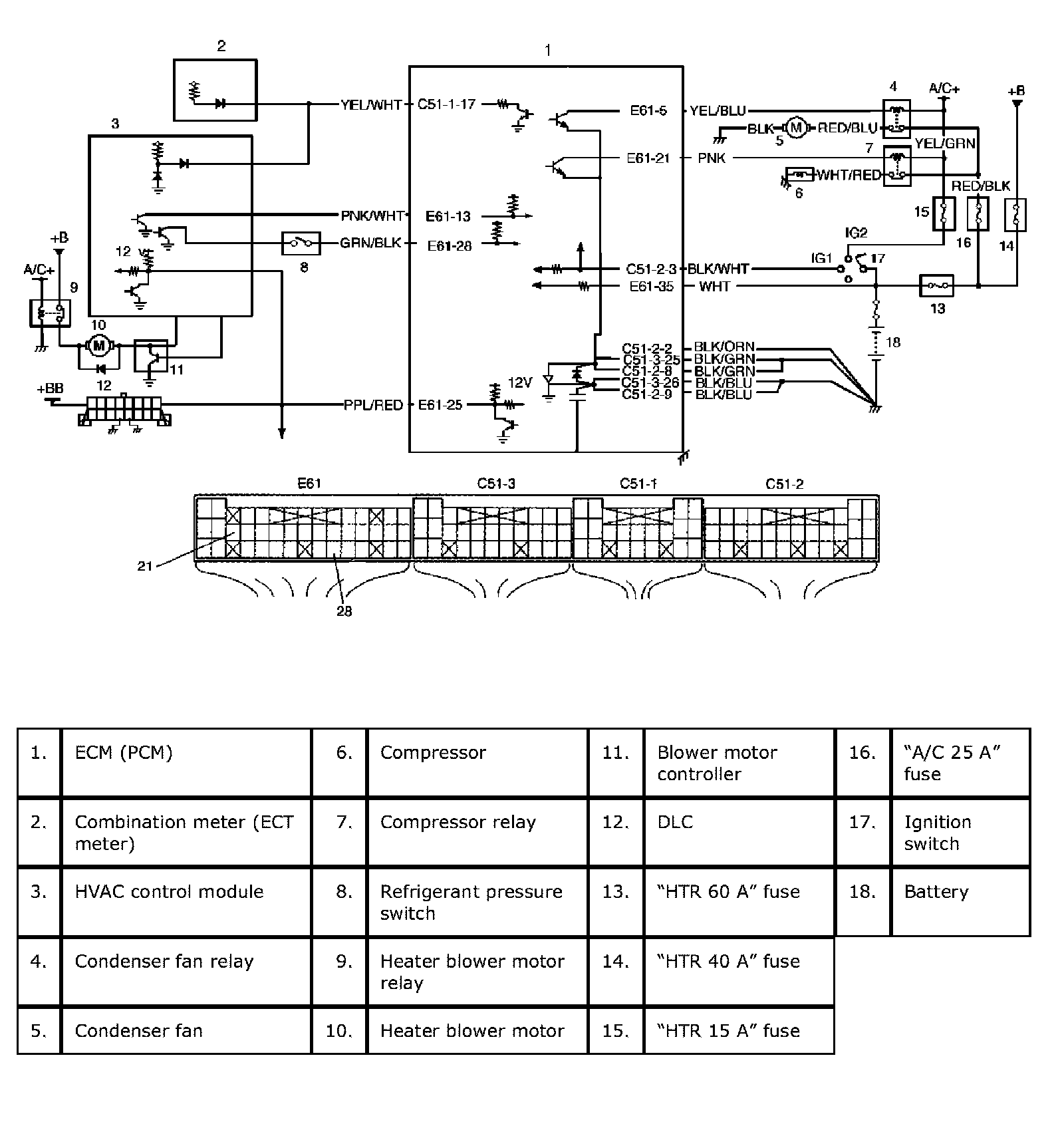

Wiring Diagram:

Wiring Diagram

Circuit Description
A/C condenser fan is turned ON by ECM (PCM) when engine coolant temperature is higher than specified value regardless A/C ON or OFF.

Step 1 - 5:

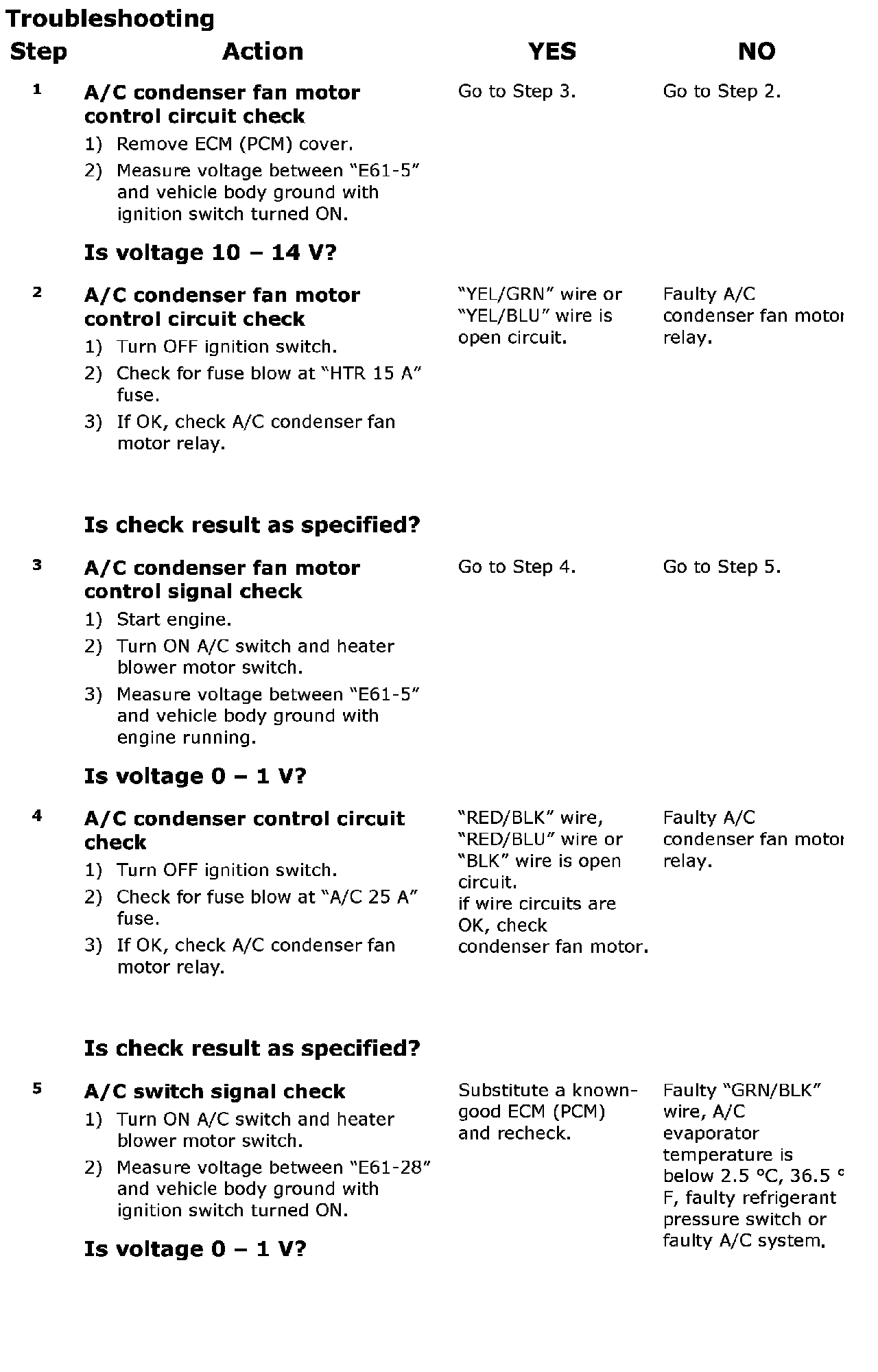

Troubleshooting
