Windshield Washer Switch: Service and Repair
Windshield Washer Level Switch Removal and InspectionRemoval
1. Remove left side front fender referring to Front Fender Removal and Installation.

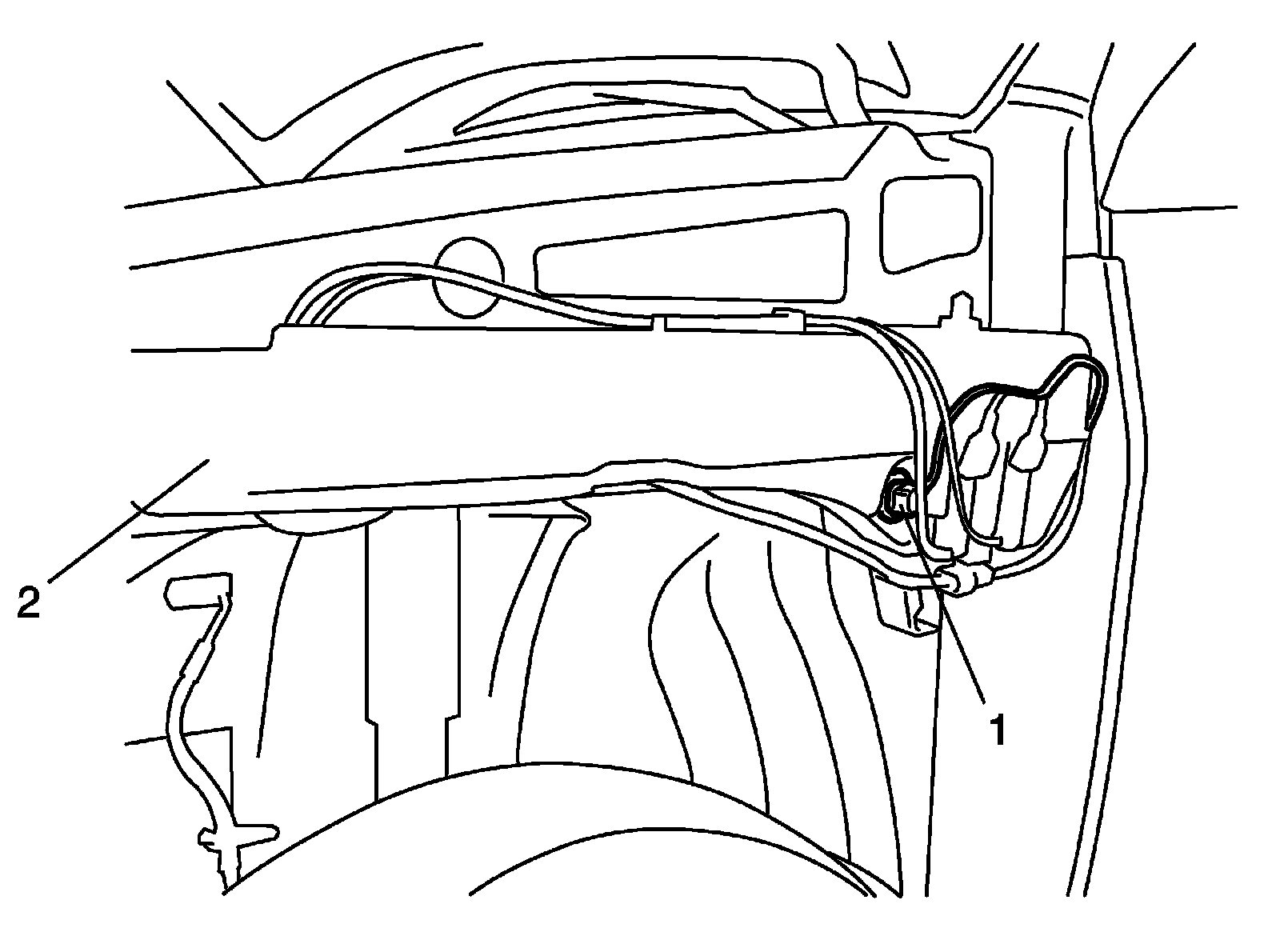

2. Remove windshield washer level switch (1) from windshield washer tank (2).
Installation
Reference: Windshield Washer Level Switch Inspection
Reverse removal procedure to install windshield washer level switch noting the following point.
Install windshield washer level switch as shown in the figure.
