Fuel Injector Circuit Check
Fuel Injector
Circuit Check

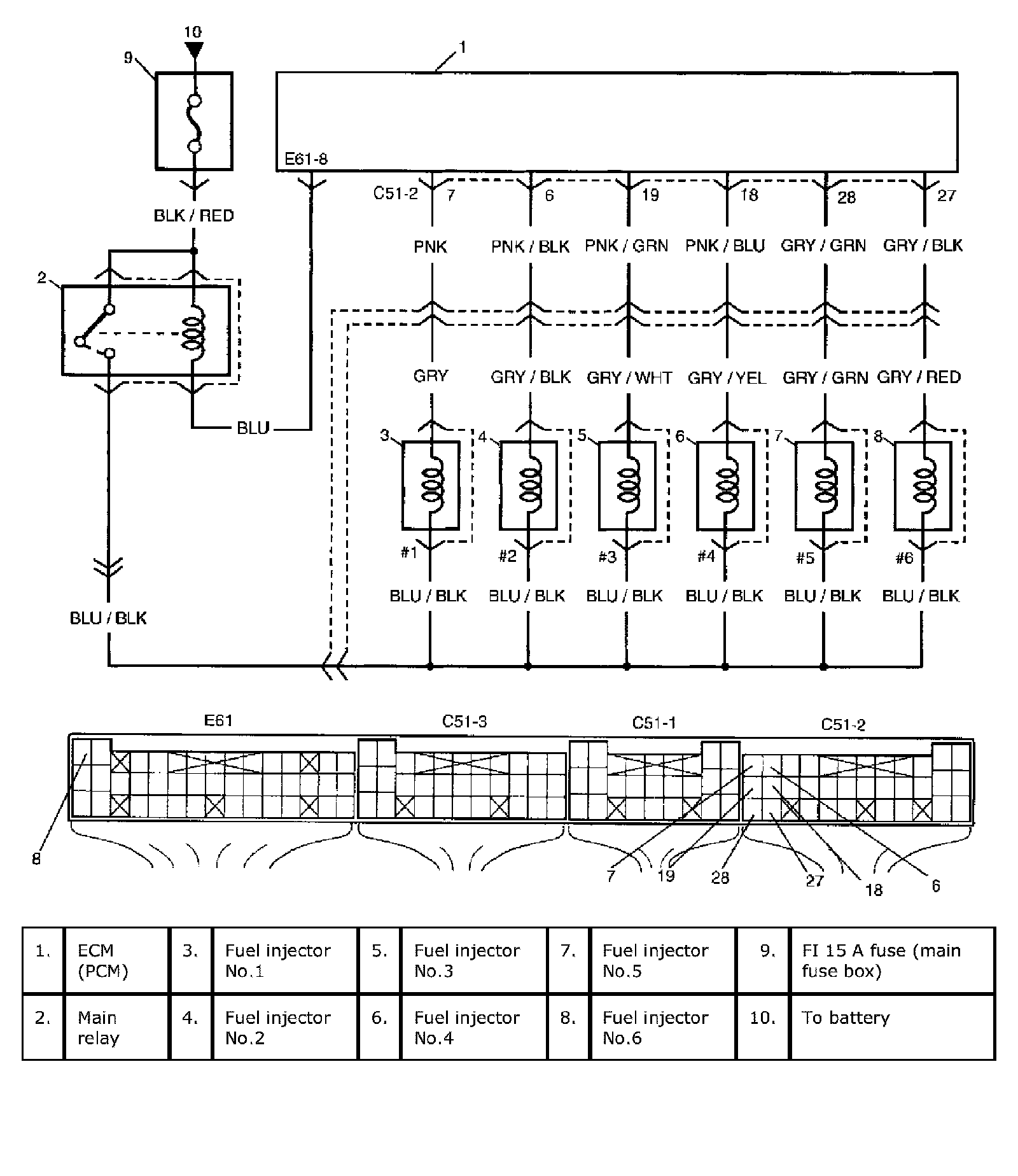

Wiring Diagram:
Wiring Diagram

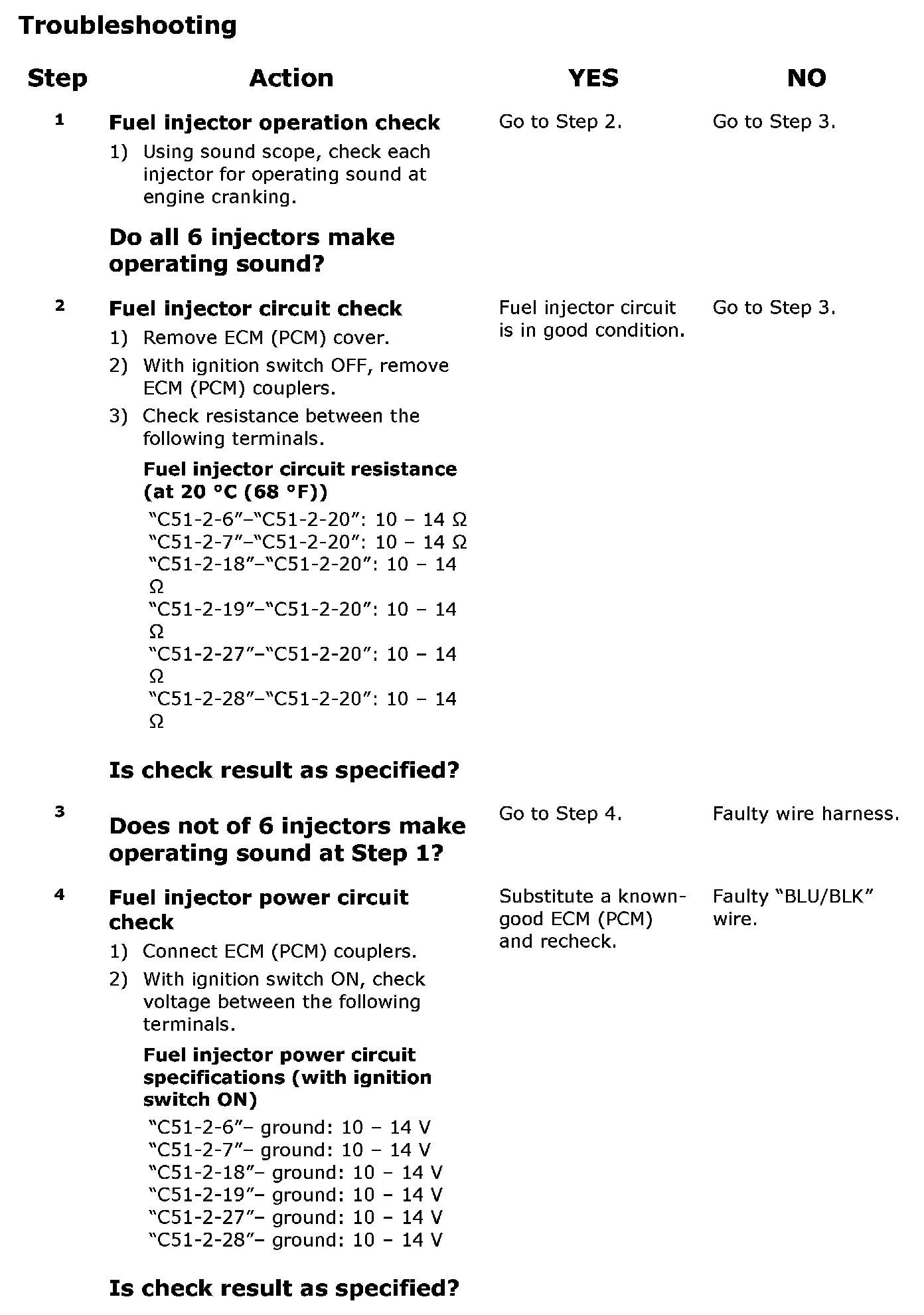

Step 1 - 4:
Troubleshooting
