Fuses And Protected Circuits:

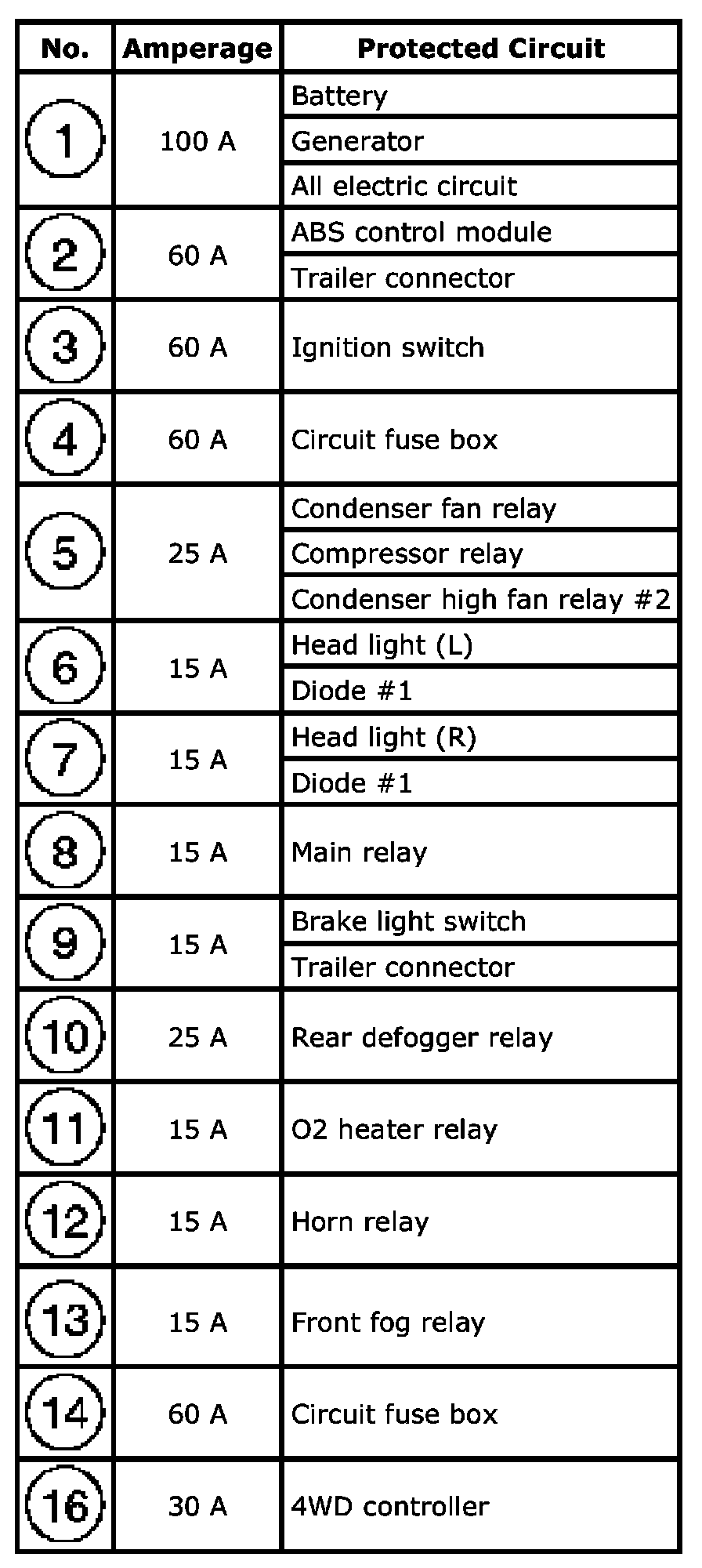

Engine Compartment Fuse Block:

Engine Compartment Fuse Block 1 Of 2:

Engine Compartment Fuse Block 2 Of 2:

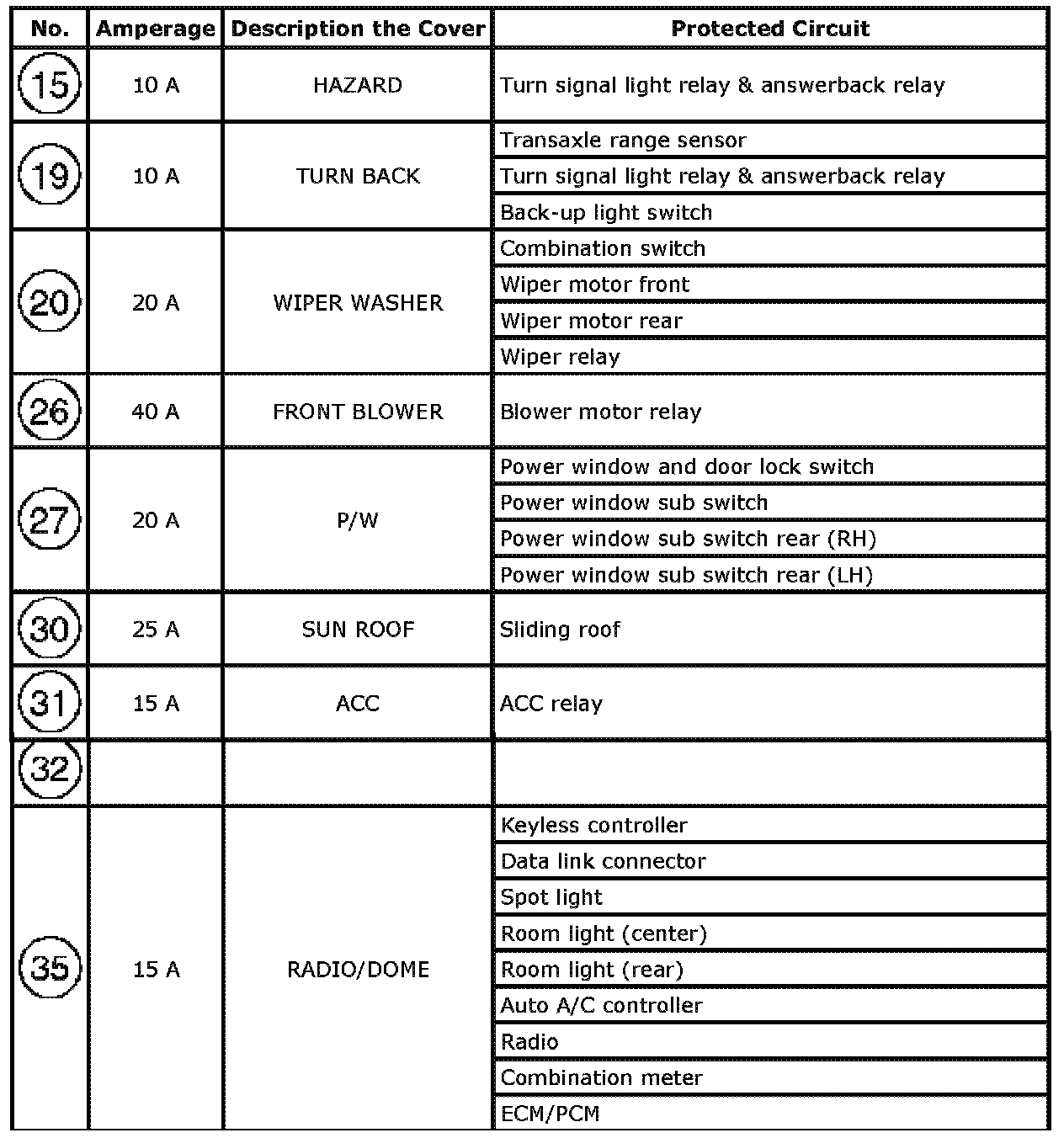

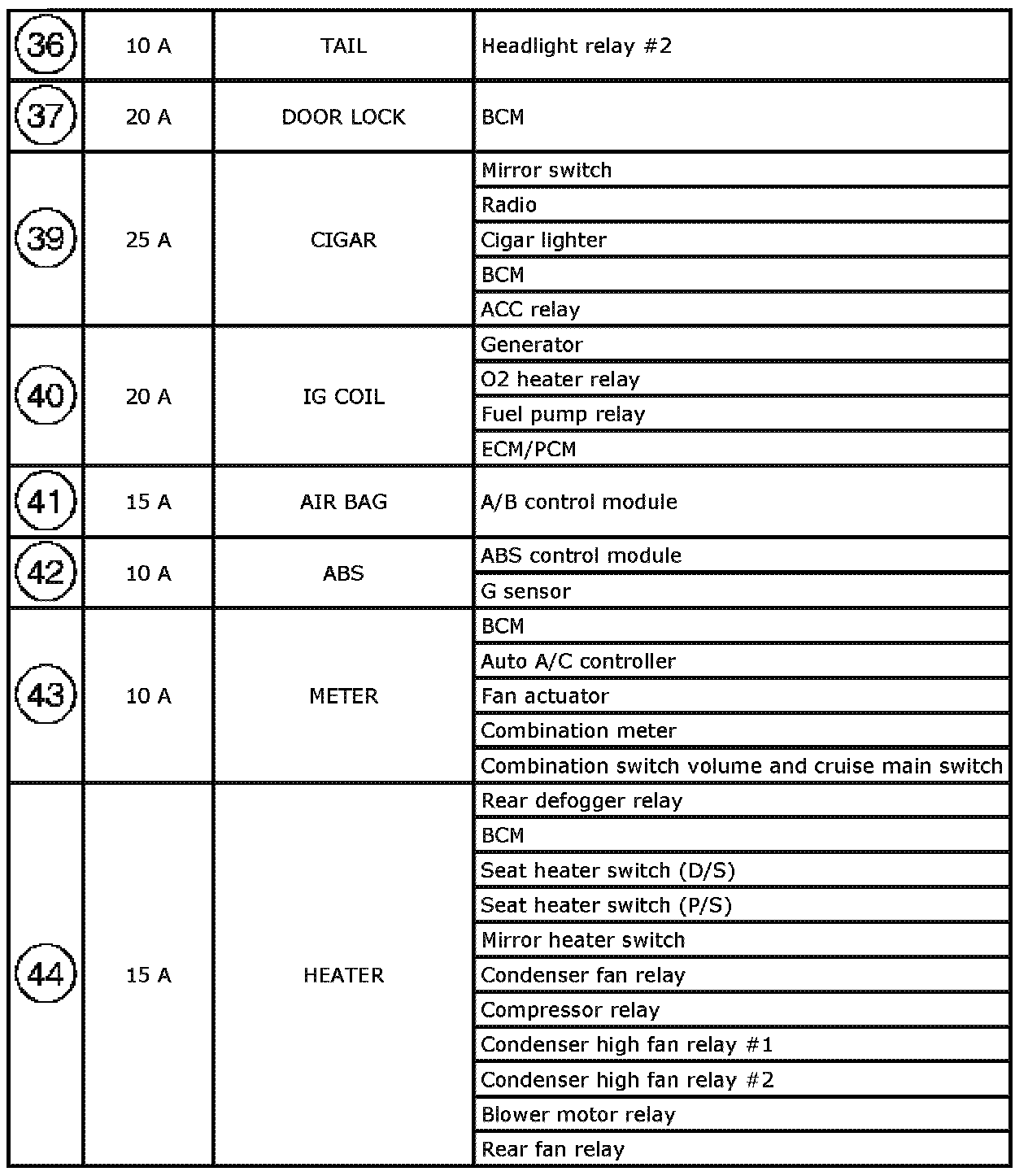

Under Dash Fuse Block (Driver's Side):

Fuses And Protected Circuits:
