G Connectors

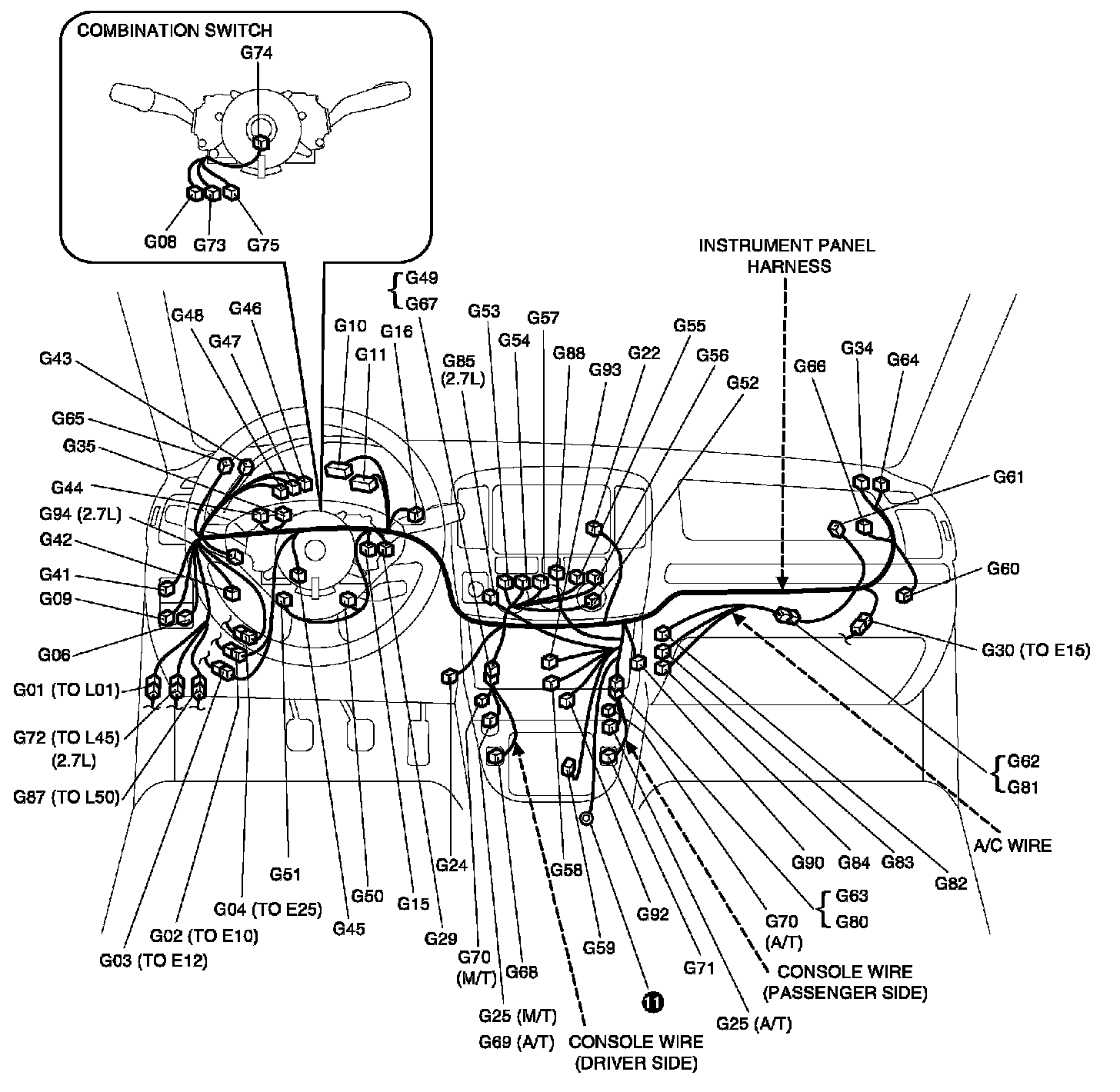

G: Instrument panel harness, console wire, A/C wire and combination switch View:

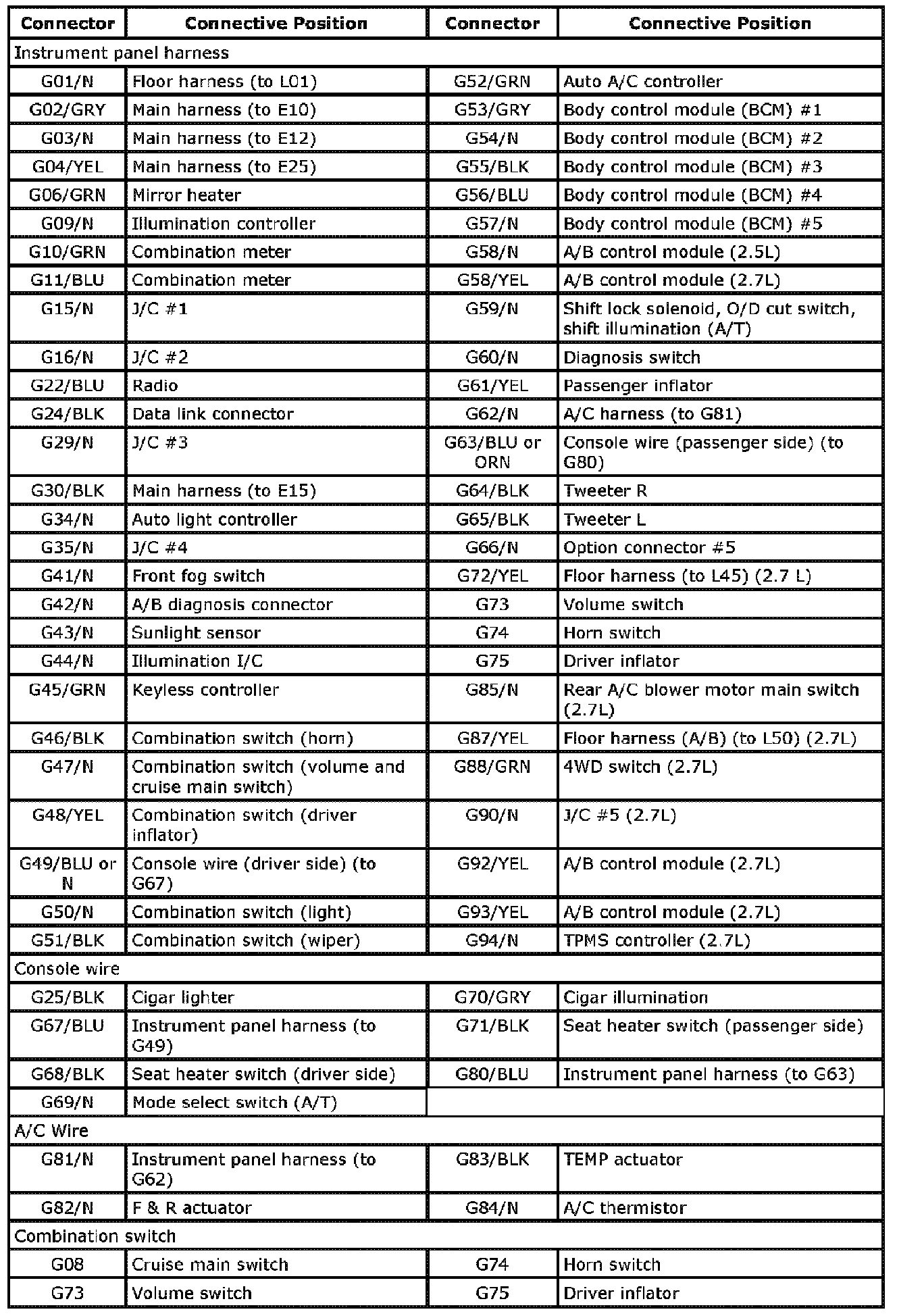

G:Instrument Panel Harness Console Wire A/C wire and Combination Switch Index:
