C Connectors

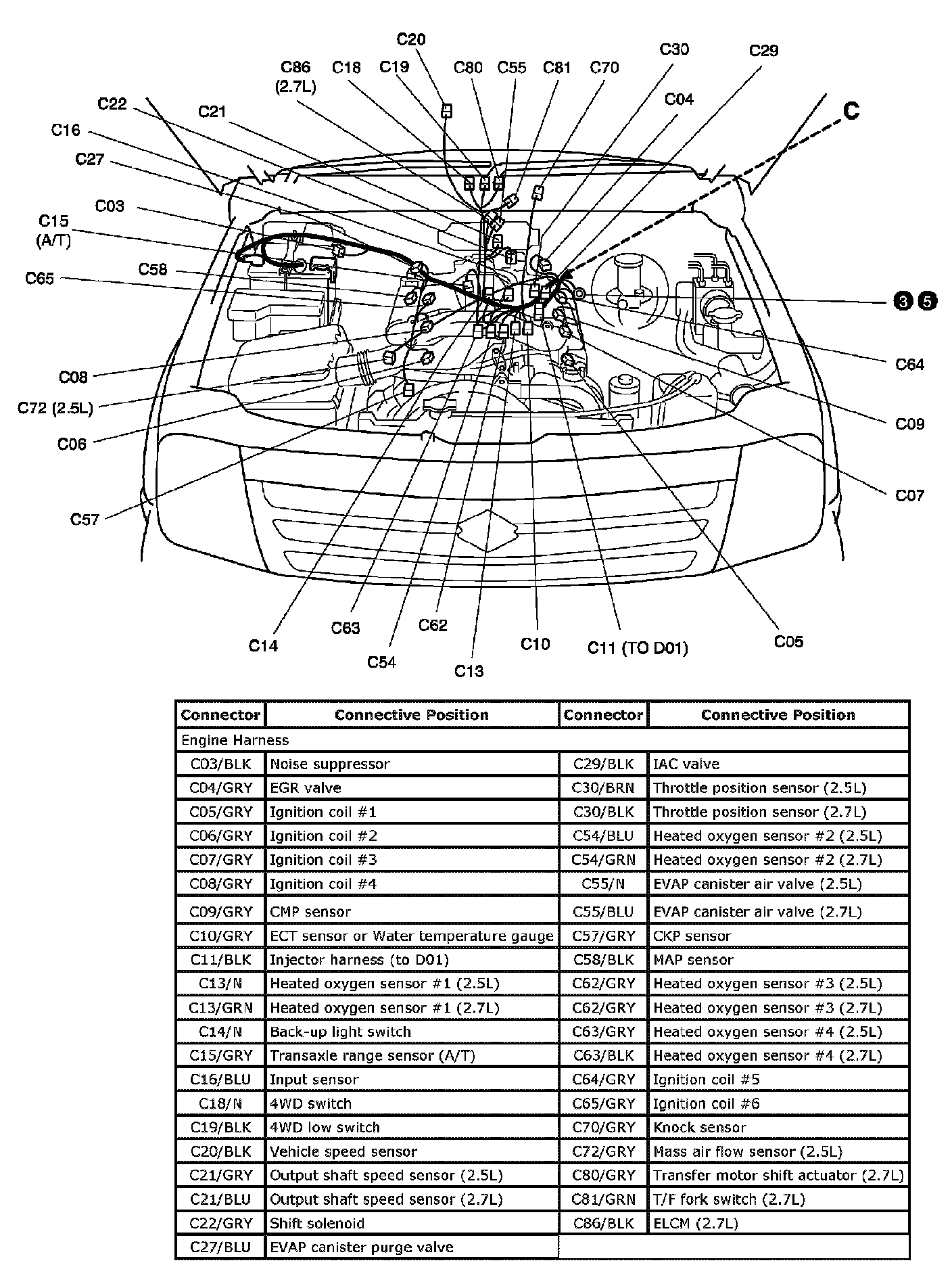

C: Engine harness:

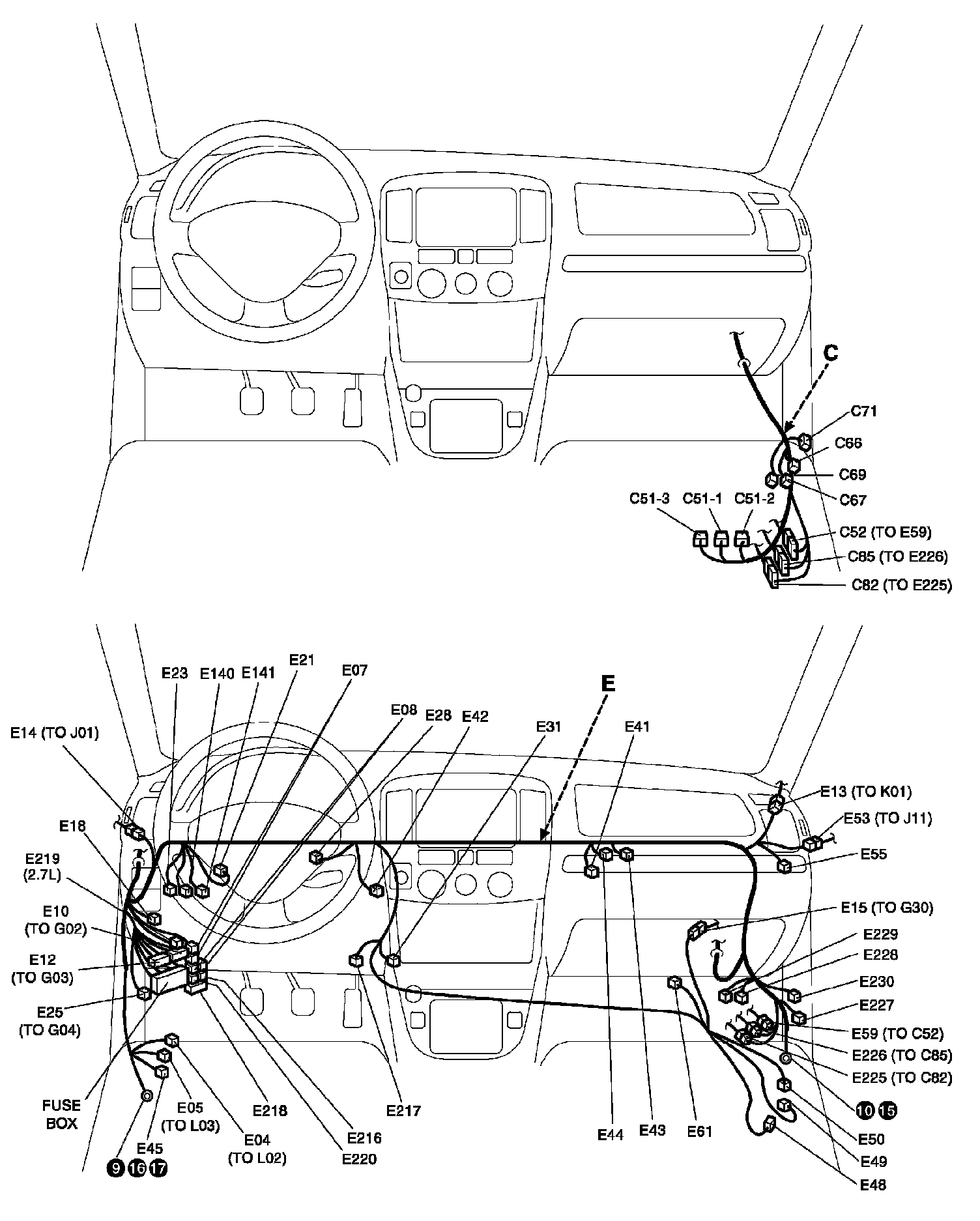

C:Engine Harness / E:Main Harness View:

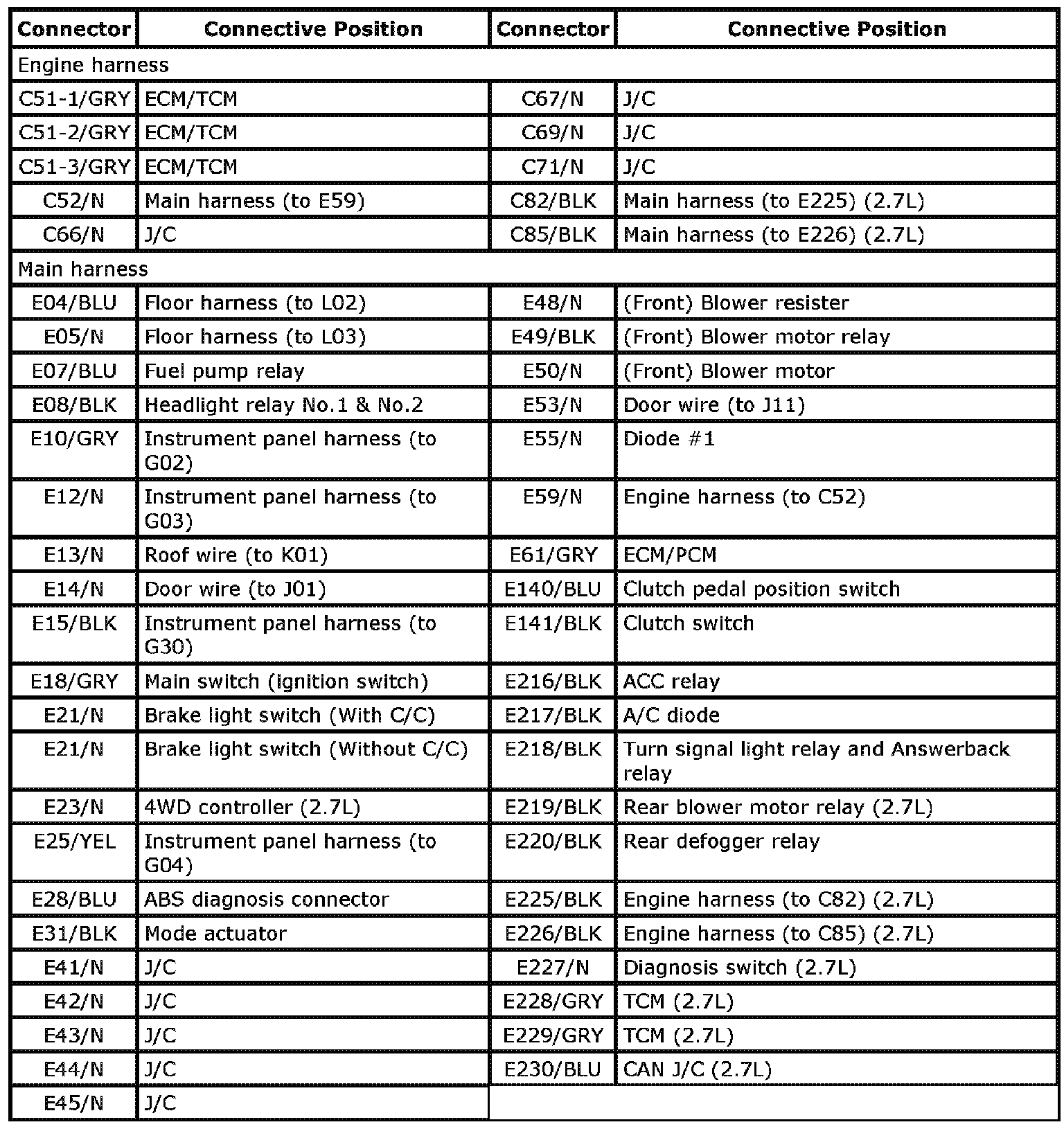

C:Engine Harness / E:Main Harness Index:
