Electrical Diagrams

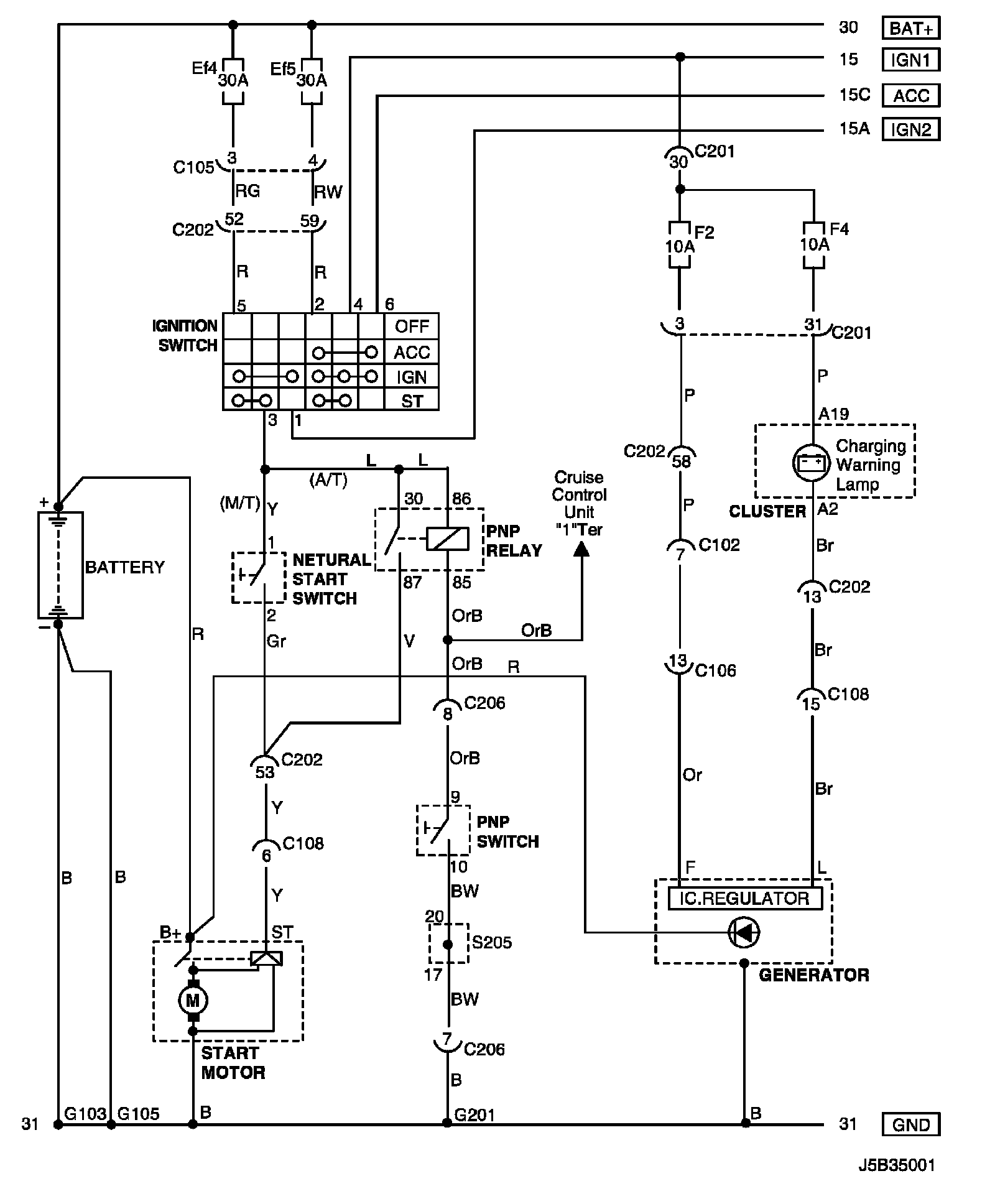

Starting and Charging System Wiring Diagram:
WIRING DIAGRAM
C102 - G201:

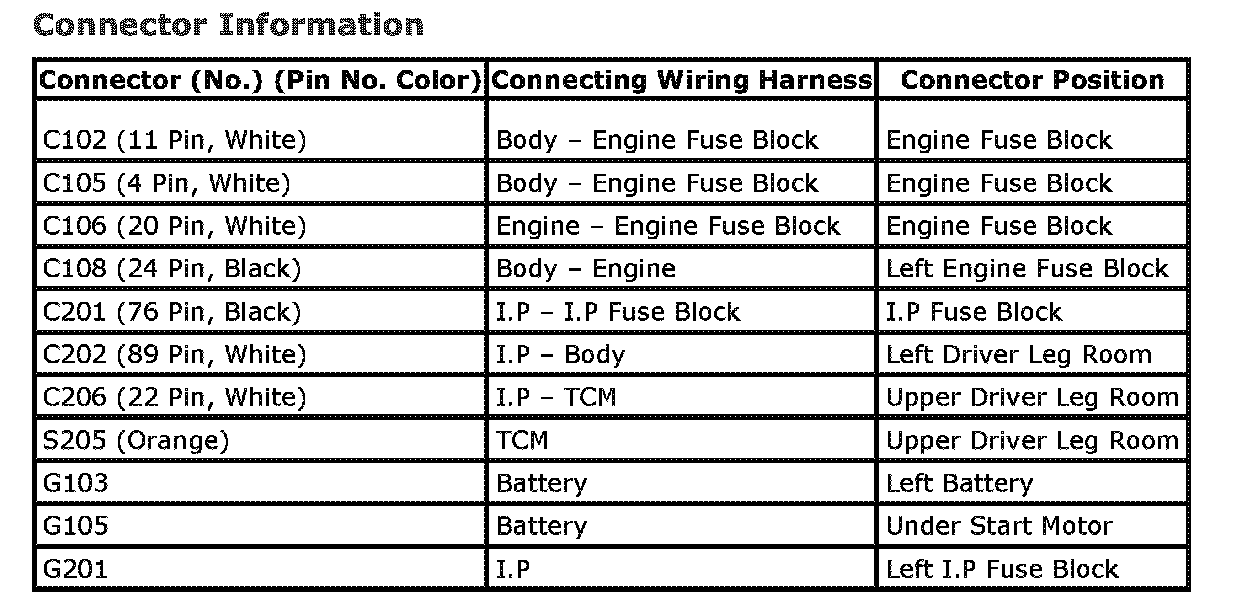

CONNECTOR INFORMATION

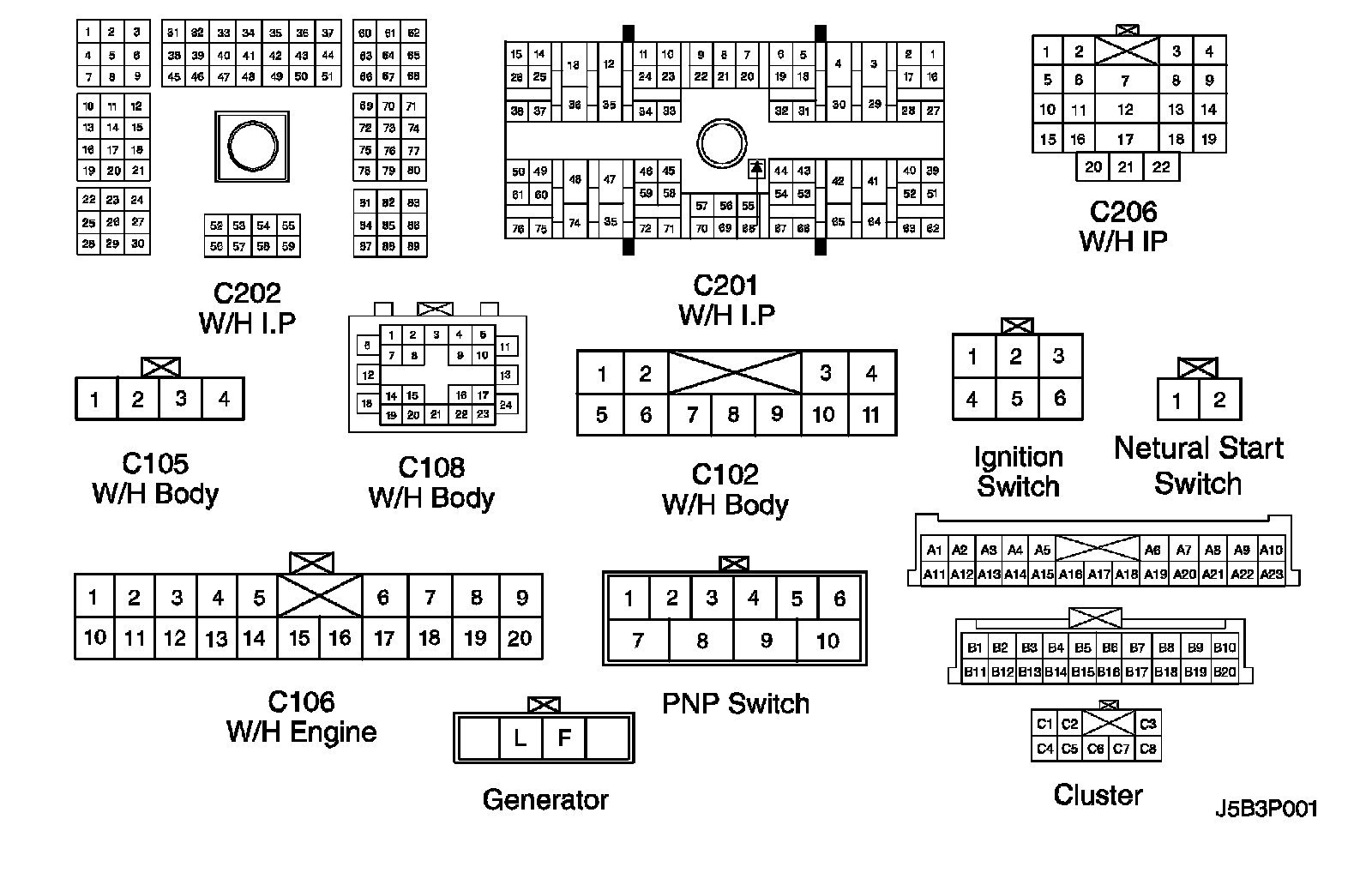

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION
MR-140:

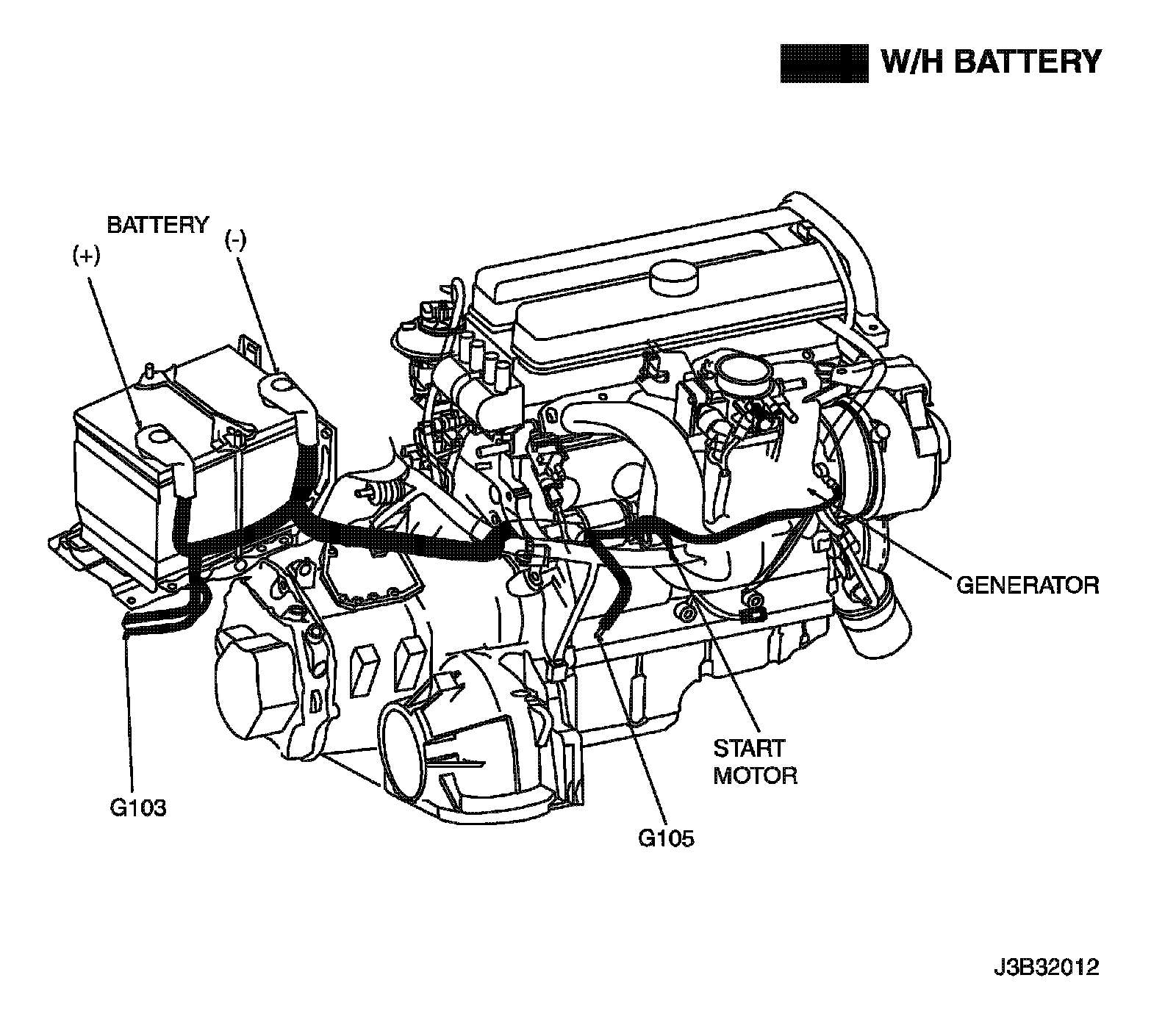

POSITION OF CONNECTORS AND GROUNDS
S205:
SPLICE PACK
