Hatchback

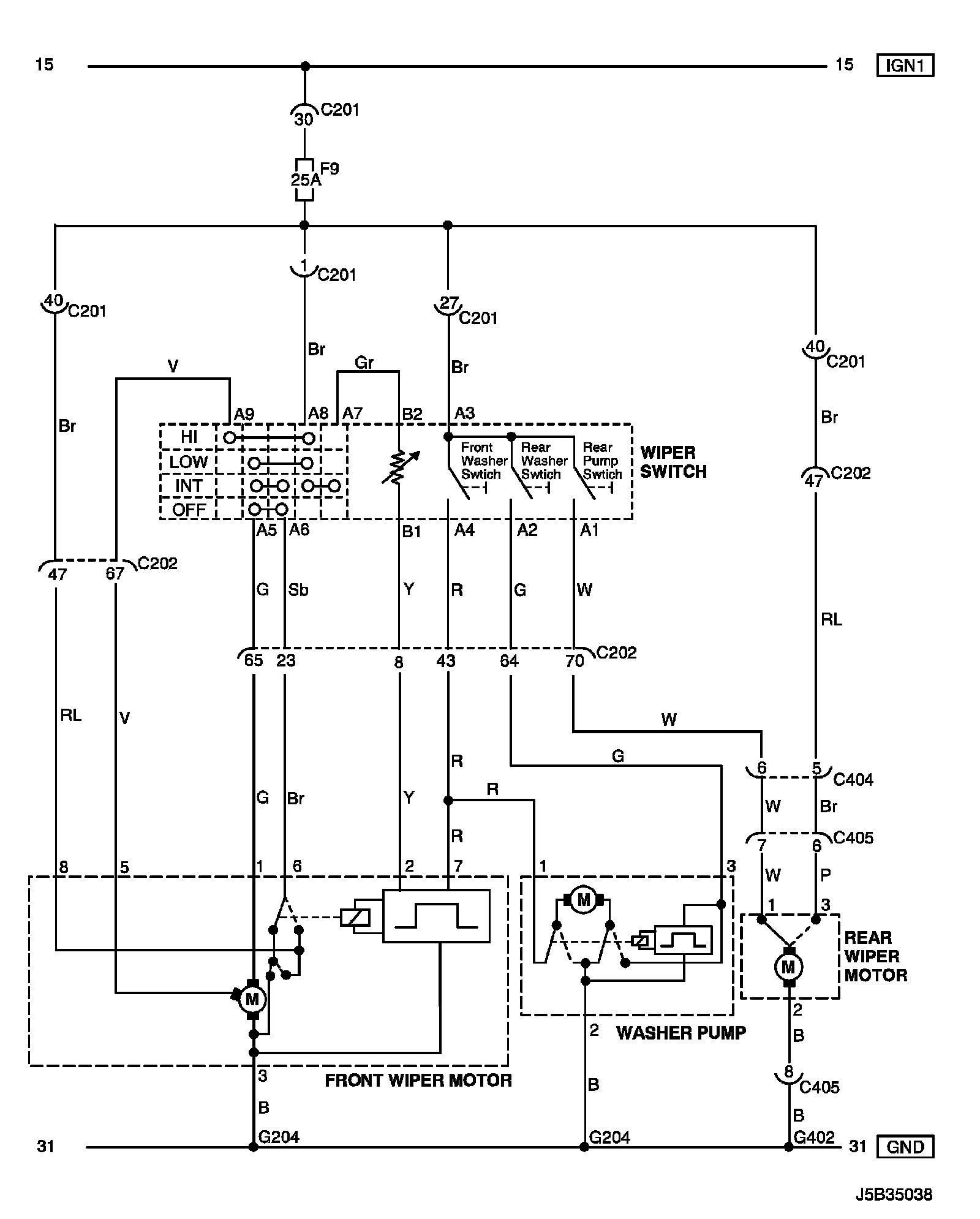

Wiper Circuit Wiring Diagram:
WIRING DIAGRAM
C201 - G402:
CONNECTOR INFORMATION

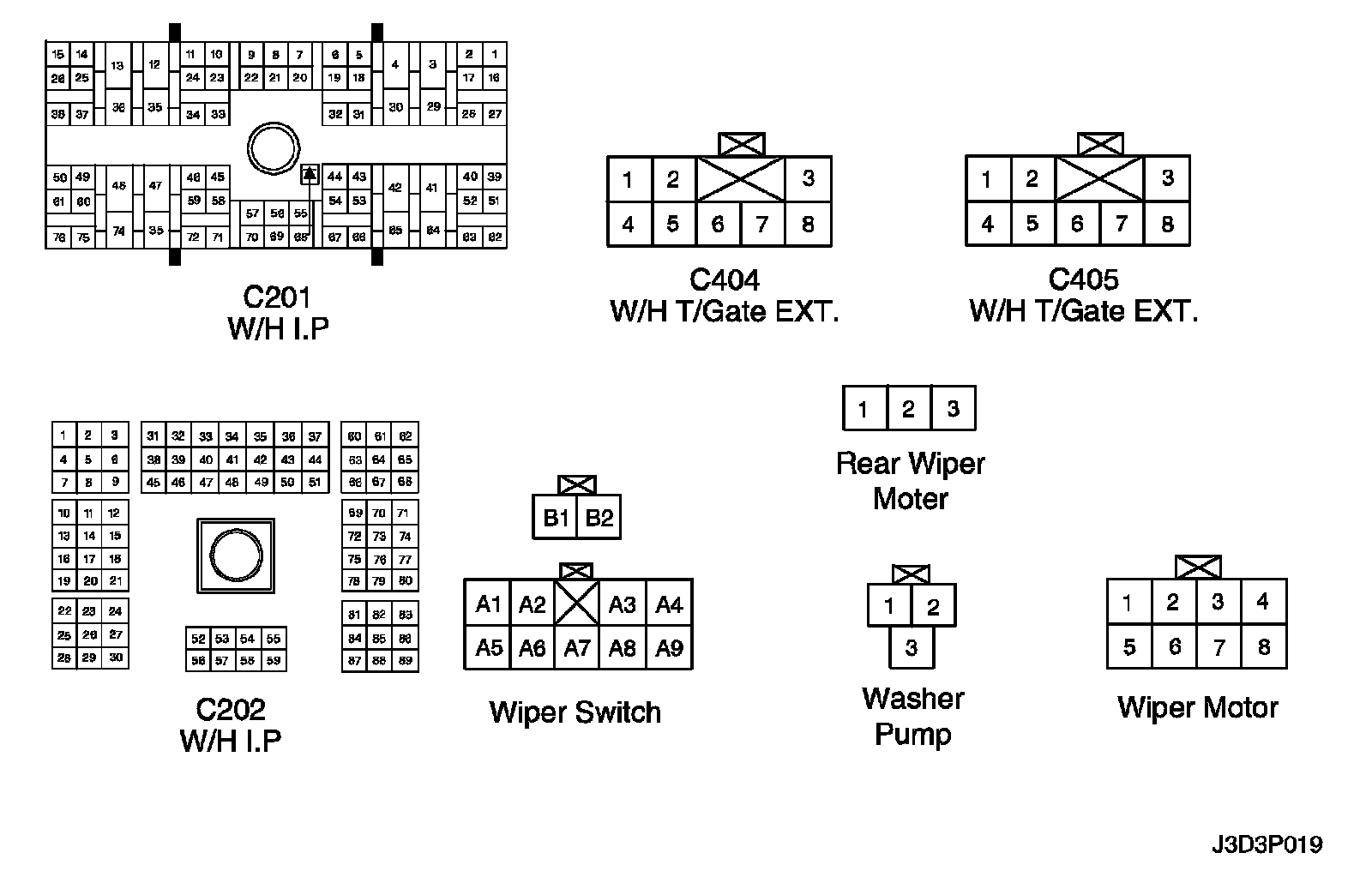

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

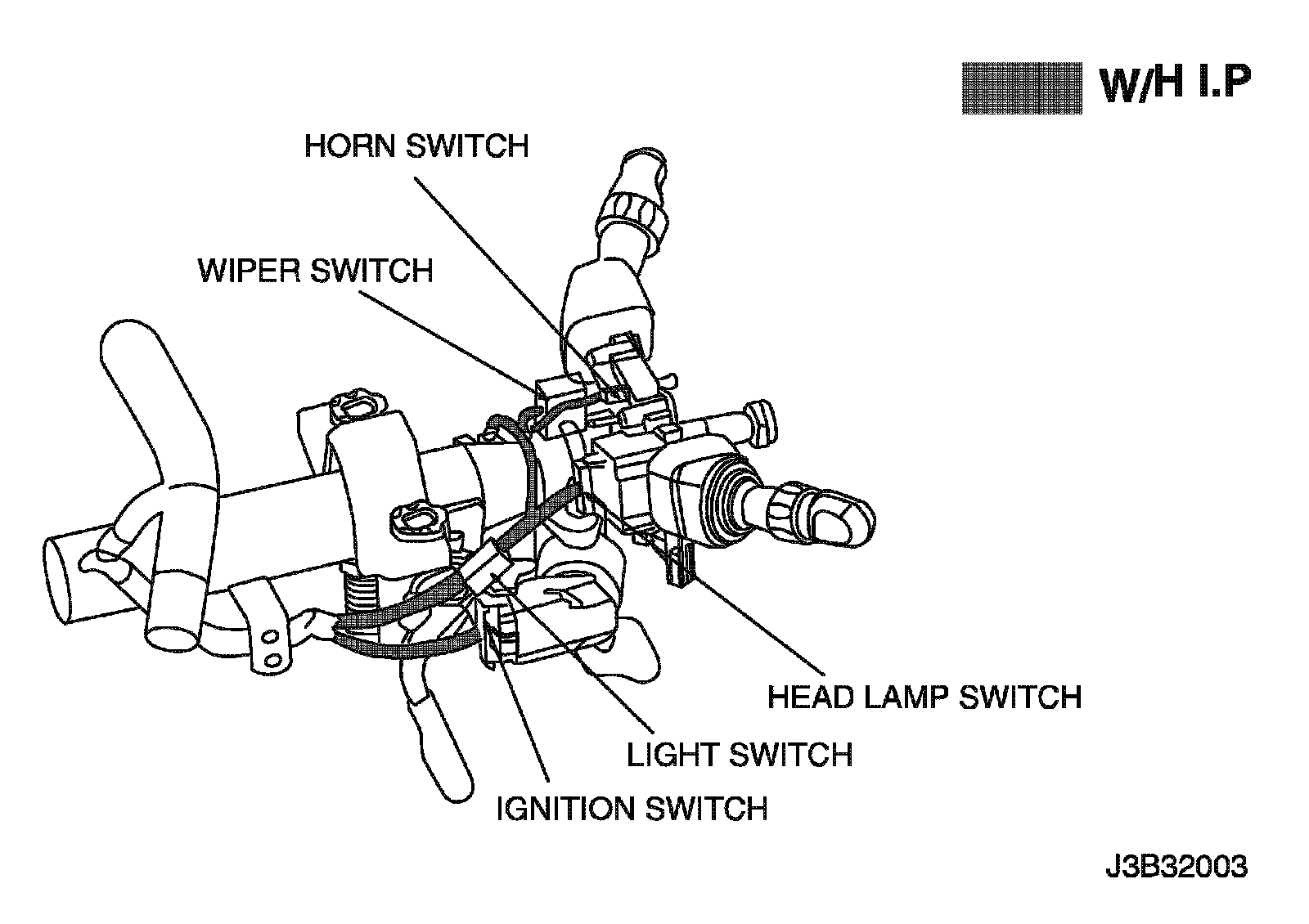

W/H INSTRUMENT PANEL:

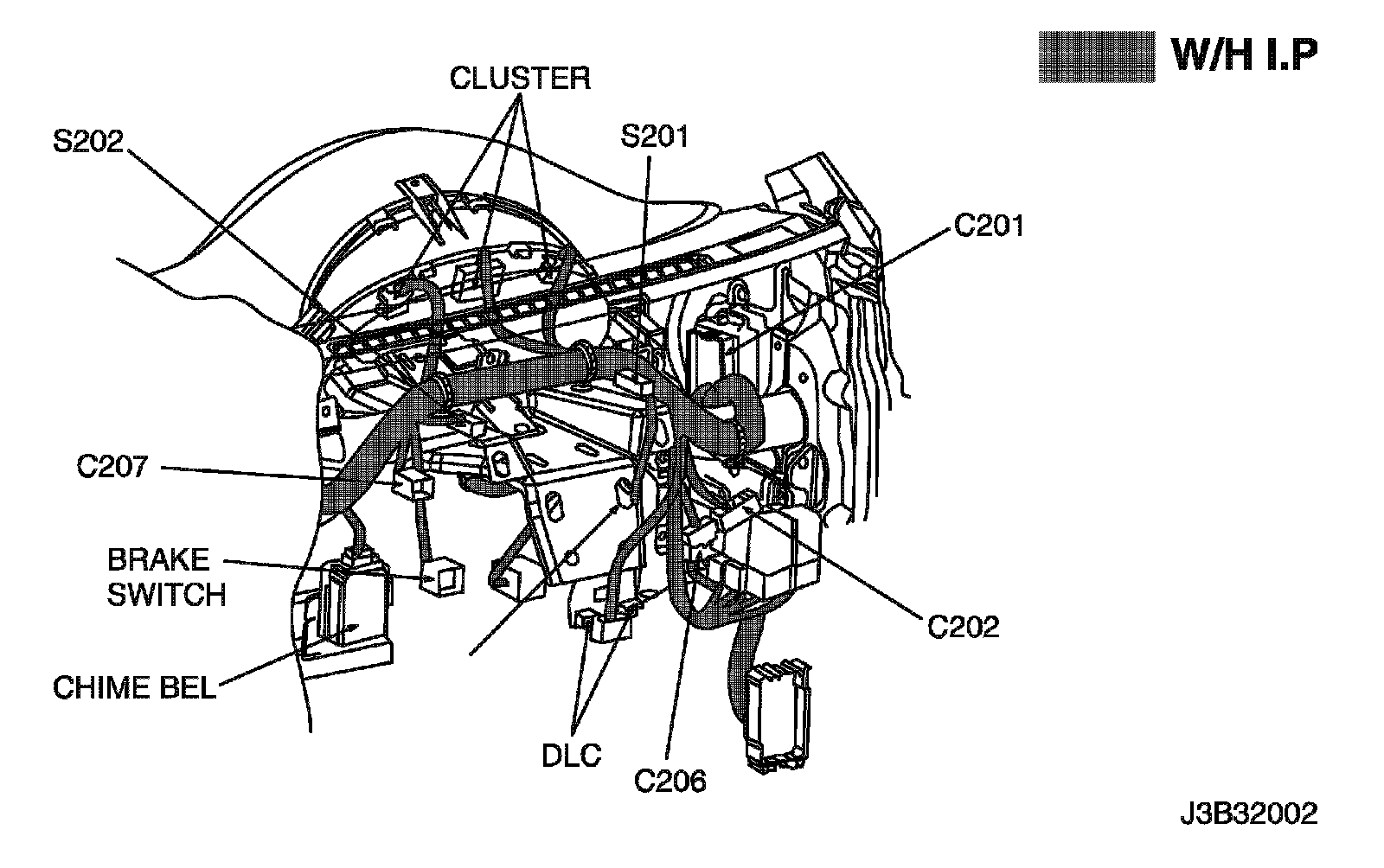

W/H INSTRUMENT PANEL:

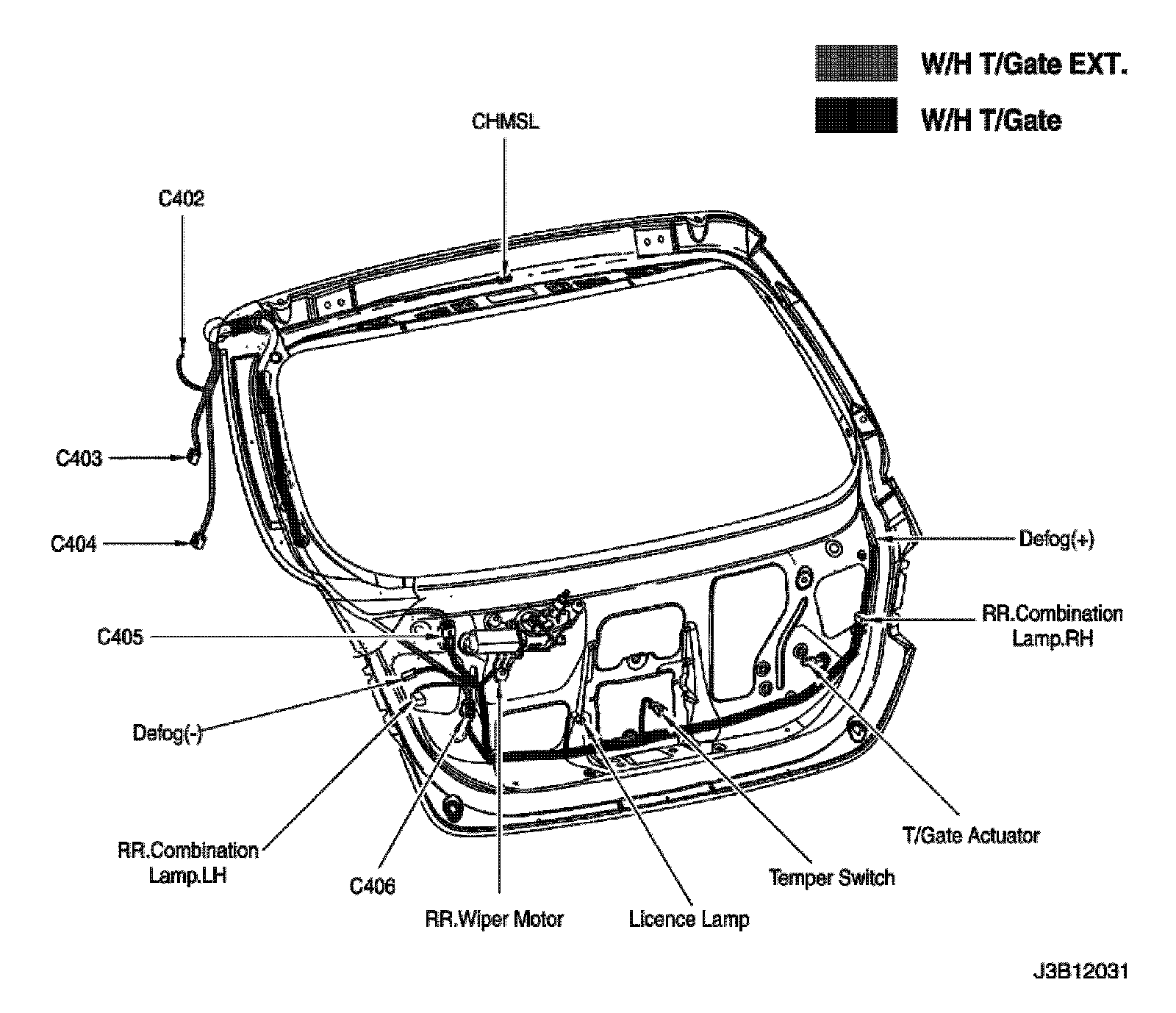

W/H TAILGATE:
POSITION OF CONNECTORS AND GROUNDS
